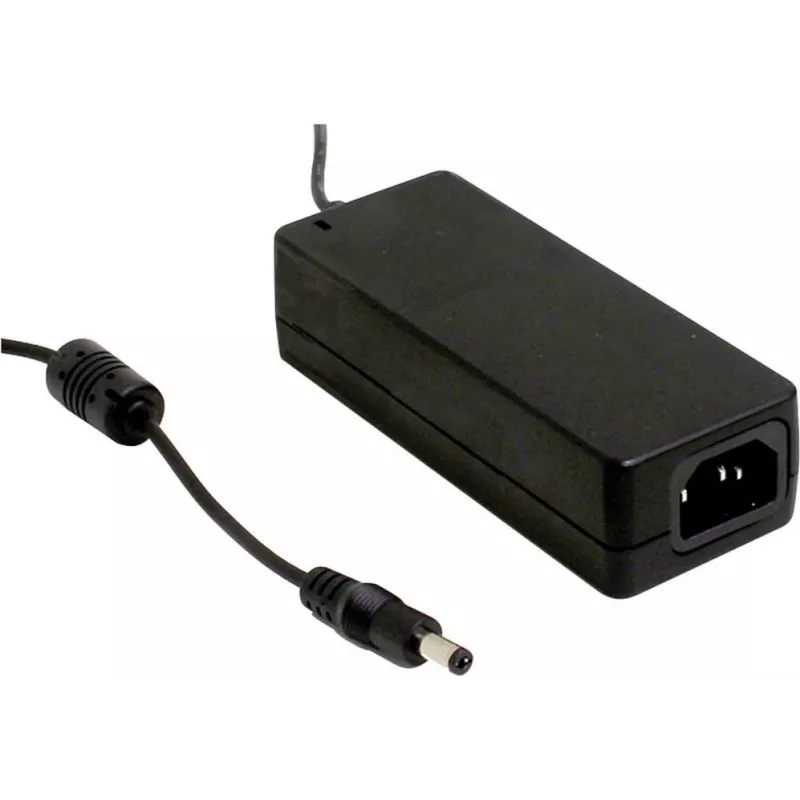

MEAN WELL GSM40A05-P1J fuente de alimentación médica 30W 5V 6A con conector macho DC

In hospitals and clinics, medical devices need power supplies that are not only reliable but also meet strict safety standards. The MEAN WELL GSM40A05-P1J is a 30-watt AC/DC desktop adapter that delivers a stable 5V DC output at up to 6A, making it ideal for powering patient monitors, diagnostic equipment, and portable medical devices. Its compact design and medical certifications ensure safe operation in patient-care environments.

Key specifications

• Output: 5V DC, 6A, 30W maximum
• Input: 80-264V AC, 47-63Hz
• Medical safety: IEC/EN/ANSI/AAMI ES60601-1 (2xMOPP), Class II
• Connectors: IEC320-C8 input, 2.1x5.5x11mm DC plug (center positive)
• Protection: Short circuit, overload, over voltage, over temperature
• Efficiency: Up to 80%, no-load consumption <0.1W
• Operating temperature: -30°C to +70°C
• Certifications: UL, cUL, TUV, CB, FCC, CE

Why choose it

This power supply is engineered for medical applications, featuring 2xMOPP isolation to protect patients and operators from electric shock. It meets stringent energy efficiency level VI requirements, reducing energy waste and operating costs. The wide input voltage range allows global use without switches or adjustments, and the low leakage current (<100µA) ensures compatibility with sensitive medical electronics.

Ideal use cases

• Patient monitoring systems
• Portable diagnostic devices
• Medical carts and workstations
• Home healthcare equipment
• Laboratory instruments

Good to know

The GSM40A05-P1J comes with a standard 2-pin IEC320-C8 inlet, so you can use a detachable AC cord appropriate for your region. The DC output cable is terminated with a 2.1x5.5mm barrel plug, center positive, which fits many common medical devices. With an MTBF of over 500,000 hours, this power supply is built for long-term reliability.
