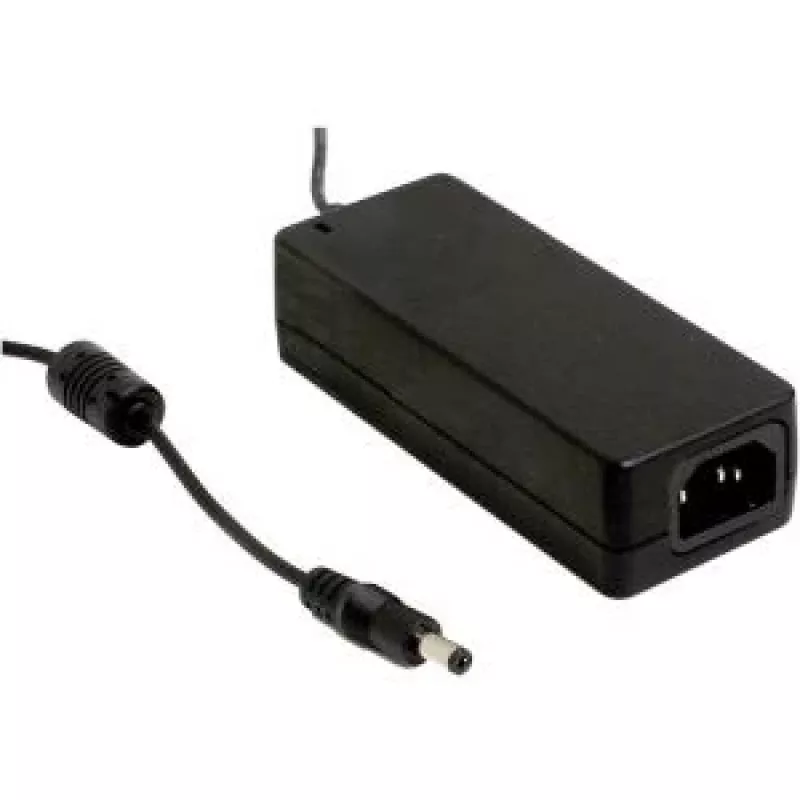

MEAN WELL GSM40A07-P1J Fuente de alimentación médica 40W AC/DC con salida 7,5V DC y conector hueco de 2,1x5,5mm

The GSM40A07-P1J stands out as a medical-grade desktop power supply that delivers a stable 7.5V DC output with 2xMOPP isolation, making it suitable for patient-contact applications where safety and reliability are non-negotiable. Unlike generic adapters, this unit combines a wide 80–264VAC input range with Class II construction and ultra-low leakage current, ensuring compliance with stringent medical standards without compromising on efficiency or compactness.

Highlights

• 40W continuous output at 7.5V DC / 5.34A for demanding medical devices
• 2xMOPP safety approval (ANSI/AAMI ES60601-1, IEC/EN60601-1) for patient vicinity use
• Wide input voltage range 80–264VAC with IEC 320-C14 inlet for global operation
• High efficiency up to 88.5% and no-load consumption below 0.1W (Level VI compliant)
• Comprehensive protections: short circuit, overload, over voltage, over temperature
• DC output via 2.1 x 5.5mm barrel plug, center positive

In daily use

In clinical or home healthcare settings, the GSM40A07-P1J provides clean, low-ripple power (100mVp-p) that protects sensitive electronics. Its free-air convection cooling means silent operation, while the wide operating temperature range (-30°C to +70°C) ensures dependable performance even in challenging environments. The compact, lightweight design simplifies installation and cable management, and the standard C14 connector allows use with commonly available AC cords.

Full specifications

• Brand: MEAN WELL
• Model: GSM40A07-P1J
• Output power: 40 W
• Output voltage: 7.5 VDC
• Output current: 5.34 A
• Input voltage: 80–264 VAC / 113–370 VDC
• Efficiency: 88.5%
• No-load power consumption: <0.1 W
• Ripple & noise: 100 mVp-p
• Input connector: IEC 320-C14
• Output connector: DC barrel plug 2.1 x 5.5 mm, center positive
• Protections: short circuit, overload, over voltage, over temperature
• Medical safety: ANSI/AAMI ES60601-1, IEC/EN60601-1 (2xMOPP)
• Isolation voltage: 4000 VAC (input to output)
• Leakage current: <100 µA
• Safety class: Class II (no FG)
• Cooling: free air convection
• Operating temperature: -30 to +70 °C
• MTBF: >100,000 hours
• Energy efficiency level: Level VI

Final note

For OEMs and healthcare providers seeking a certified, energy-efficient power solution, the GSM40A07-P1J delivers peace of mind with every connection.
