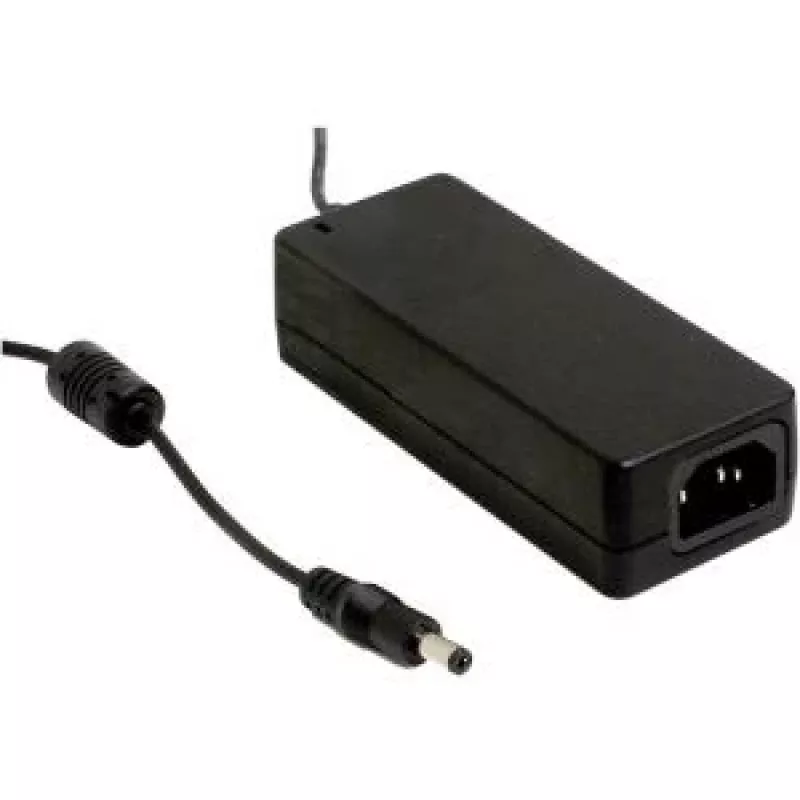

MEAN WELL GSM40A24-P1J Fuente de alimentación médica 40W 24V DC adaptador con conector de 2,1x5,5mm

This medical-grade AC/DC desktop power supply delivers a stable 24V DC output at up to 40W, making it a dependable choice for sensitive medical and industrial equipment. Its IEC320-C14 input accepts universal mains voltage from 80 to 264 VAC, while the 2.1 x 5.5 mm center-positive DC plug ensures a secure connection to your device.

Advantages

Engineered to meet IEC/EN/ANSI/AAMI ES60601-1 3rd edition safety standards, the GSM40A24-P1J offers reinforced 4000 VAC isolation and ultra-low leakage current below 100 µA. The unit achieves up to 88.5% efficiency and consumes less than 0.1 W in no-load standby, helping reduce energy costs. Comprehensive protection against short circuits, overload, over-voltage, and over-temperature safeguards both the adapter and connected equipment.

Suitable for

• Medical devices requiring certified power isolation
• Laboratory instruments and diagnostic equipment
• Industrial automation and control systems
• Telecommunication and networking hardware
• Any 24V DC device with a 2.1 x 5.5 mm power jack

Key specifications

• Output: 24 V DC, 1.67 A, 40 W maximum
• Input: 80–264 VAC, 47–63 Hz
• Efficiency: up to 88.5%, Level VI compliant
• Ripple & noise: 150 mVp-p
• Operating temperature: -30 to +70 °C
• MTBF: over 300,000 hours
• Certifications: UL, cUL, TUV, CB, CE, FCC
• Dimensions: 100 x 58.5 x 33.5 mm

Recommendations

Pair this adapter with devices that demand reliable, low-noise power in healthcare or laboratory environments. Always verify the DC plug polarity and dimensions before installation to ensure compatibility.
