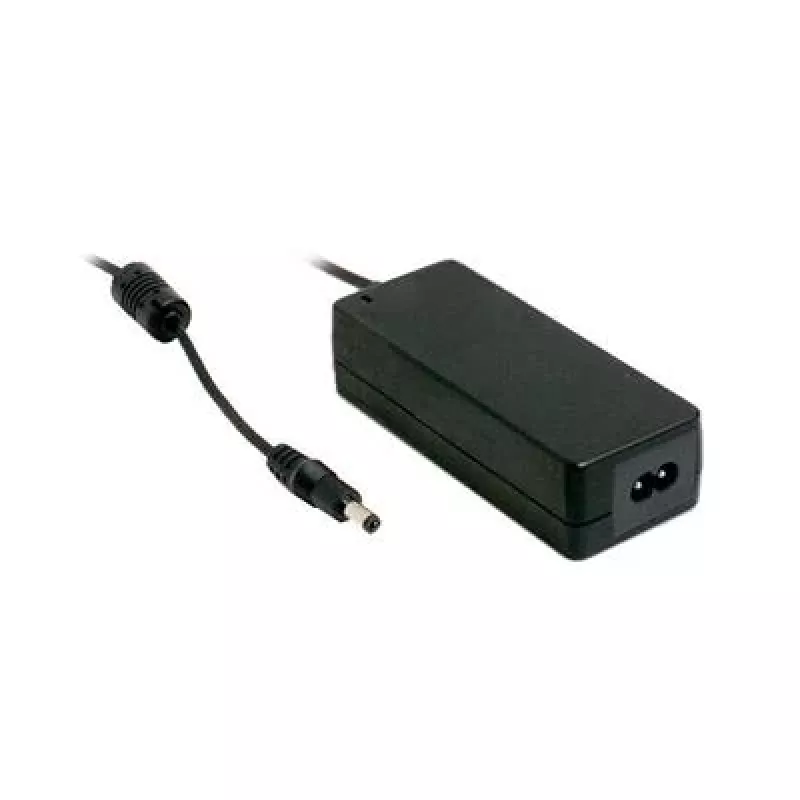

MEAN WELL GSM40B24-P1J Adaptador de sobremesa AC/DC médico 40W 24V 1,67A

This AC/DC desktop adapter delivers 40W of power with a stable 24V DC output and 1.67A current, making it ideal for medical devices requiring reliable, low-leakage power. Its high efficiency of up to 88% and low no-load consumption of less than 0.1W ensure energy savings and compliance with Level VI standards.

Advantages

Medical-grade safety with leakage current below 100µA, wide input voltage range (80~264 VAC), and comprehensive protections including short circuit, overload, over voltage, and over temperature. The compact design and standard DC plug (2.1 x 5.5mm, center positive) offer easy integration.

Suitable for

• Medical equipment and patient monitoring systems
• Laboratory instruments and diagnostic devices
• Industrial control systems requiring reliable 24V power

Key specifications

• Output: 24V DC, 1.67A, 40W
• Input: 80~264 VAC, 47~63 Hz
• Efficiency: up to 88%
• Ripple & noise: 150mVp-p max
• Operating temperature: -30 ~ +70°C
• Protections: short circuit, overload, over voltage, over temperature

Recommendations

Choose this adapter for medical and industrial applications that demand high reliability, low leakage current, and compliance with international safety standards.
