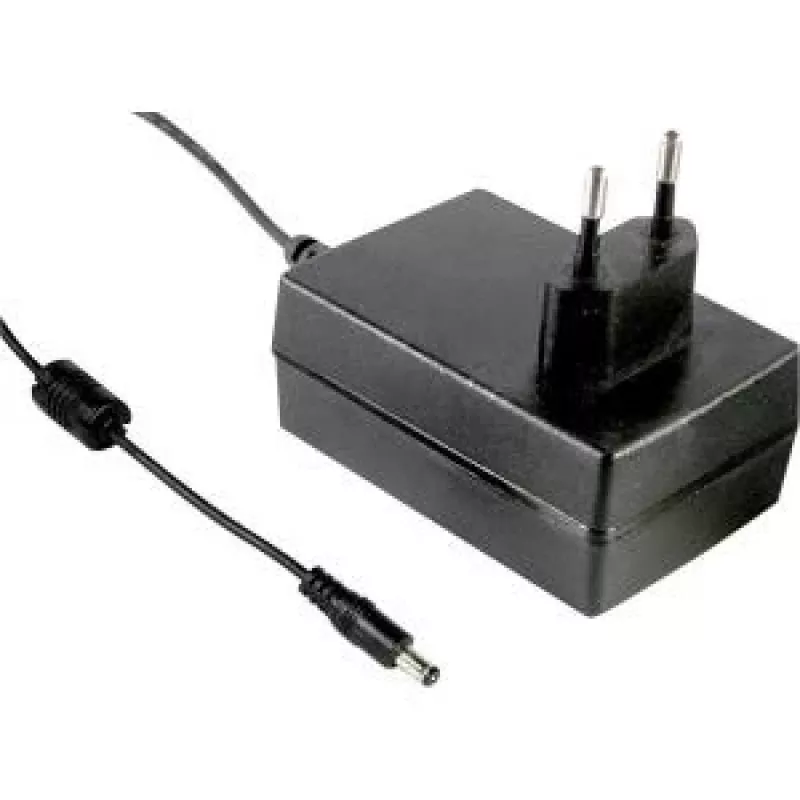

MEAN WELL GST25E18-P1J fuente de alimentación AC/DC 25 W 18 V DC 1,39 A con enchufe EU y conector DC de 2,1x5,5 mm

The GST25E18-P1J stands out among compact AC/DC adapters by pairing a generous 25-watt output with an 18-volt DC rail and a standard 2.1x5.5 mm barrel plug, all in a lightweight plastic housing that runs cool under full load. Unlike many wall-mounted units that sacrifice efficiency for size, this model meets Level VI (DOE) requirements and consumes less than 0.075 W at no load, making it an ideal choice for always-connected devices such as routers, LED strips, or small industrial controllers.

Highlights

• 25 W output power with 18 V DC / 1.39 A rating
• Wide input range: 90–264 V AC, 47–63 Hz
• Level VI energy efficiency, <0.075 W standby consumption
• Class II double insulation, no earth connection required
• Protections: short circuit, overload, over voltage
• EU AC plug, 2.1x5.5 mm centre-positive DC connector
• Safety certifications: UL/cUL, GS, RCM, PSE, KC, CCC, EAC, CE, FCC

In daily use

Thanks to its free-air convection cooling, the GST25E18-P1J operates silently from -30 °C to +70 °C, so it can be installed in enclosed spaces without derating concerns. The output remains stable with line regulation of ±0.5% and load regulation of ±5%, while ripple and noise stay below 150 mVp-p. The 2.1x5.5 mm DC plug fits a wide range of equipment, and the EU AC plug means it is ready for European sockets out of the box.

Full specifications

• Output power: 25 W
• Output voltage: 18 V DC
• Output current: 1.39 A
• Input voltage: 90–264 V AC
• Input frequency: 47–63 Hz
• Energy efficiency: Level VI (DOE)
• No-load power consumption: <0.075 W
• Ripple & noise: 150 mVp-p
• Line regulation: ±0.5%
• Load regulation: ±5%
• MTBF: >100,000 hours
• Operating temperature: -30 °C to +70 °C
• Cooling: free air convection
• Isolation class: Class II
• Housing material: plastic
• AC plug type: European (EU)
• DC connector: 2.1x5.5 mm, centre positive
• Protections: short circuit, overload, over voltage
• Safety certifications: UL/cUL, GS, RCM, PSE, KC, CCC, EAC, CE, FCC

Final note

For projects that demand a reliable, energy-efficient 18 V power source with a common barrel connector, the GST25E18-P1J delivers consistent performance and worldwide safety compliance in a compact form factor.
