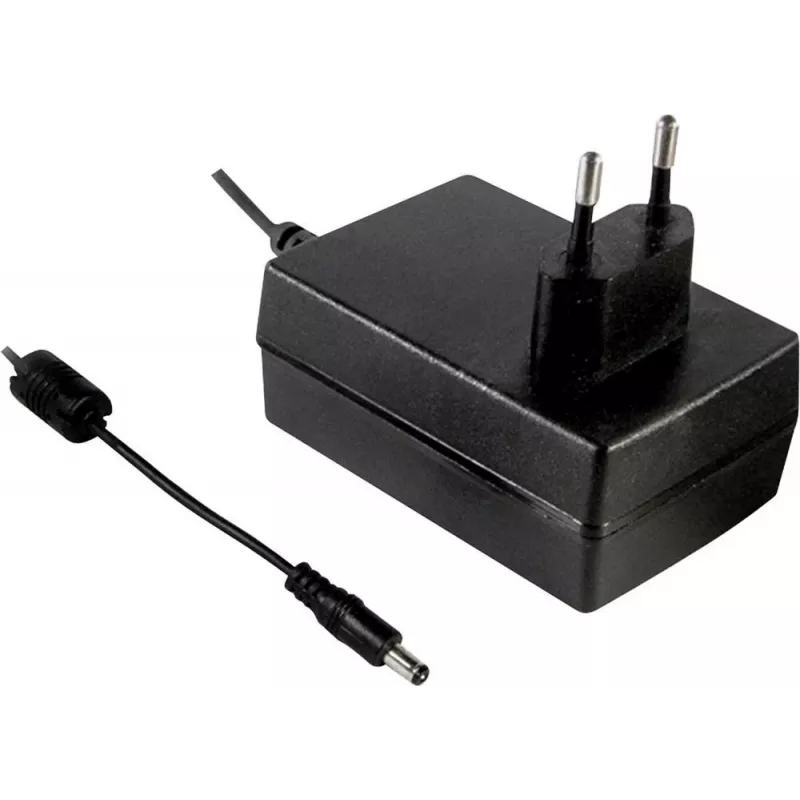

MEAN WELL GST36E12-P1J 36W 12V DC 3A fuente de alimentación AC/DC con enchufe EU y conector hueco de 5,5x2,1mm

The GST36E12-P1J stands out among 36-watt adapters by combining a wide 90–264 VAC input with an EU plug and a fixed 12 VDC output, all in a compact, energy-efficient design that meets DoE Level VI and ErP CoC V5. It delivers dependable power for LED lighting, industrial controls, and various electronics where stable voltage and low standby consumption are critical.

Highlights

• Fixed 12 VDC output with 3 A maximum current for 36 W total power
• Universal AC input (90–264 VAC, 47–63 Hz) with integrated EU plug (Type C/F)
• High efficiency up to 88.5% and ultra-low no-load consumption below 0.075 W
• Comprehensive protection: short circuit, overload, and over voltage
• 120 cm DC cable terminated with a 5.5 x 2.1 mm barrel plug, center positive
• Wide operating temperature range from -30°C to +70°C
• Certified to EN62368-1, UL62368-1, TUV, CB, CE, and FCC

In daily use

This adapter is ideal for powering 12 V devices such as LED strips, routers, small motors, or test equipment. The generous cable length simplifies placement, while the robust housing and full safety certifications ensure reliable operation in both residential and commercial environments. Its low standby power makes it suitable for always-connected applications where energy costs matter.

Full specifications

• Brand: MEAN WELL
• Model: GST36E12-P1J
• MPN: GST36E12-P1J
• EAN: 4021087028608
• Input voltage: 90–264 VAC
• Input frequency: 47–63 Hz
• Output voltage: 12 VDC
• Output current: 3 A
• Output power: 36 W
• Efficiency: up to 88.5%
• No-load power consumption: < 0.075 W
• Output connector: 5.5 x 2.1 mm DC barrel plug, center positive
• DC cable length: 120 cm
• Protection: short circuit, overload, over voltage
• Ripple & noise: 120 mVp-p max
• Operating temperature: -30°C to +70°C
• Safety standards: EN62368-1, UL62368-1, TUV, CB, CE, FCC
• Energy efficiency: DoE Level VI / ErP CoC V5

Final note

For reliable 12 V power with minimal energy waste, the GST36E12-P1J delivers industrial-grade performance in a compact, certified package.
