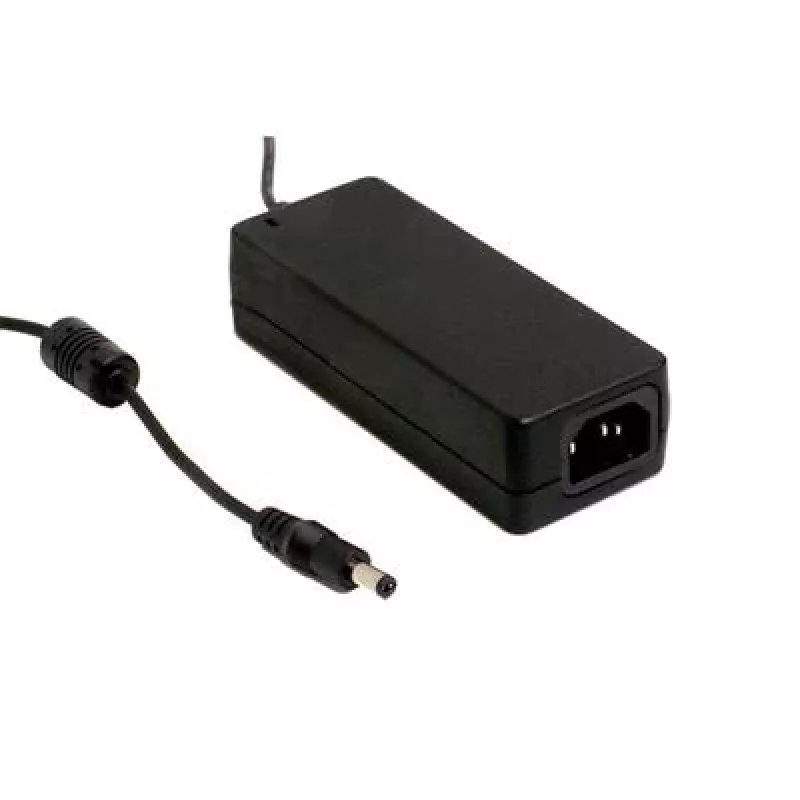

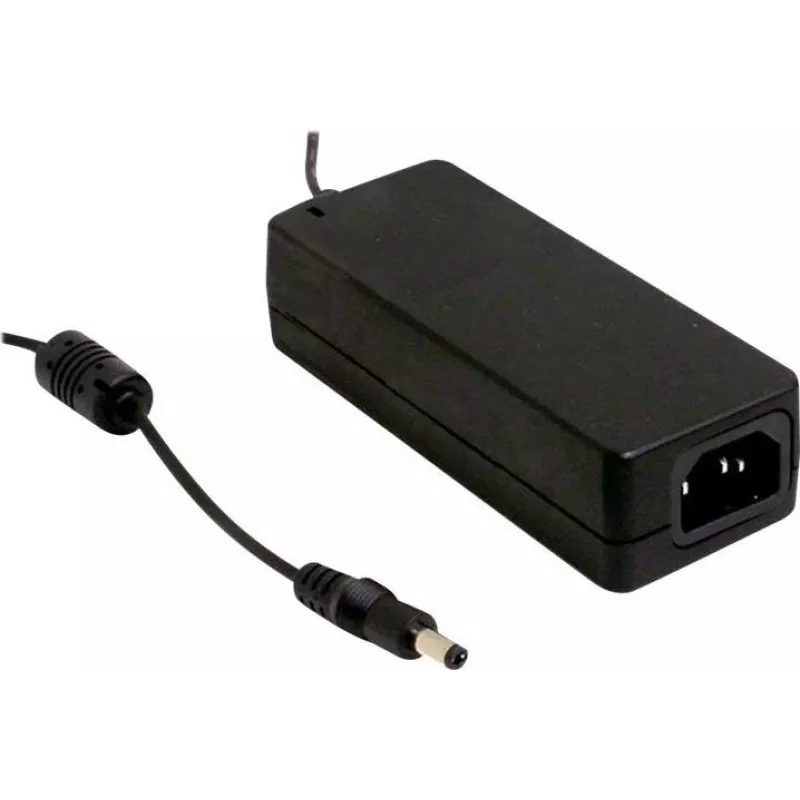

MEAN WELL GST60A48-P1J fuente de alimentación de sobremesa AC/DC 60W 48V con conector DC de 2,1x5,5mm

Many industrial and network devices require a stable 48V DC supply, but standard adapters often lack the efficiency and reliability needed for continuous operation. The MEAN WELL GST60A48-P1J solves this with a 60W desktop power supply that delivers clean, regulated 48V DC from any universal AC mains input.

Who is it for

This power supply is ideal for powering network equipment, LED lighting, industrial controllers, and other 48V DC devices in professional or home settings. It suits users who need a compact, energy-efficient adapter that can operate in a wide temperature range.

Main features

• Output: 48V DC, 1.25A, 60W maximum
• Universal AC input: 90–264VAC, 47–63Hz
• High efficiency: >90%
• Low no-load power consumption: <0.075W
• DC output connector: 2.1 x 5.5 mm barrel plug, center positive
• Built-in protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30 to +70°C
• Cooling by free air convection
• Complies with DOE Level VI / EU ErP energy efficiency

Specifications

• Input connector: IEC320-C14
• Ripple & noise: 150mVp-p
• Safety standards: UL60950-1, TUV EN60950-1, EAC, AS/NZS 60950.1
• EMC standards: EN55032 Class B, FCC Part15 Class B

Tips

Ensure your device accepts 48V DC and uses a 2.1x5.5mm plug with center positive polarity before connecting. For outdoor or harsh environments, provide additional protection against moisture and dust.
