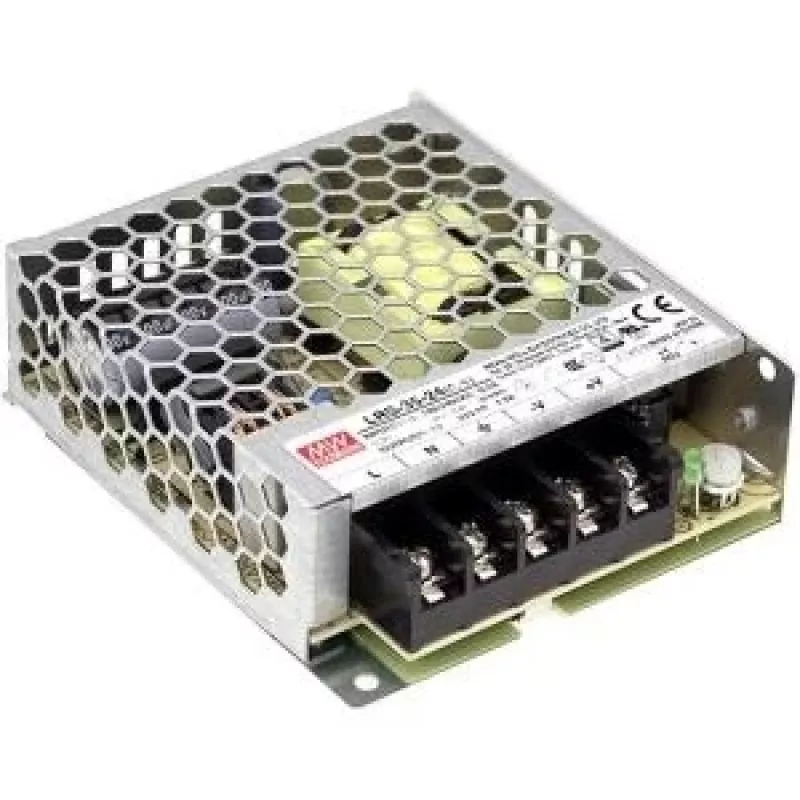

MEAN WELL LRS-35-15 36W 15V 2,4A fuente de alimentación conmutada cerrada

Many industrial and automation systems require a stable, reliable DC power source that can handle wide input voltage fluctuations and harsh environments. The MEAN WELL LRS-35-15 is a 36-watt enclosed switching power supply that delivers a regulated 15V DC output at up to 2.4A, making it an excellent choice for powering sensors, controllers, LED lighting, and other low-power electronics.

Who is it for

This power supply is ideal for system integrators, OEMs, and maintenance professionals who need a compact, efficient, and durable power solution for industrial control panels, factory automation, vending machines, and test equipment. Its metal case and chassis-mount design ensure reliable operation in demanding conditions.

Main features

• Wide input voltage range: 85~264VAC (120~370VDC) for global compatibility
• High efficiency up to 86%, reducing energy consumption and heat generation
• Built-in protections: short circuit, overload, and over voltage
• Free air convection cooling, no fan required for silent operation
• Compact metal enclosure with chassis mounting for easy integration
• Complies with international safety and EMC standards

Specifications

• Output voltage: 15V DC (adjustable 13.5~18V)
• Output current: 2.4A
• Output power: 36W
• Ripple & noise: 120mVp-p max
• Operating temperature: -30°C to +70°C
• Isolation voltage: I/P-O/P 3KVAC, I/P-FG 2KVAC, O/P-FG 0.5KVAC
• Safety standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16
• EMC: EN55032 class B, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11

Tips

Ensure adequate ventilation around the unit to maintain optimal performance. For applications requiring higher output voltage, use the built-in potentiometer to adjust within the specified range. Always verify that the total load does not exceed 36W to avoid triggering overload protection.
