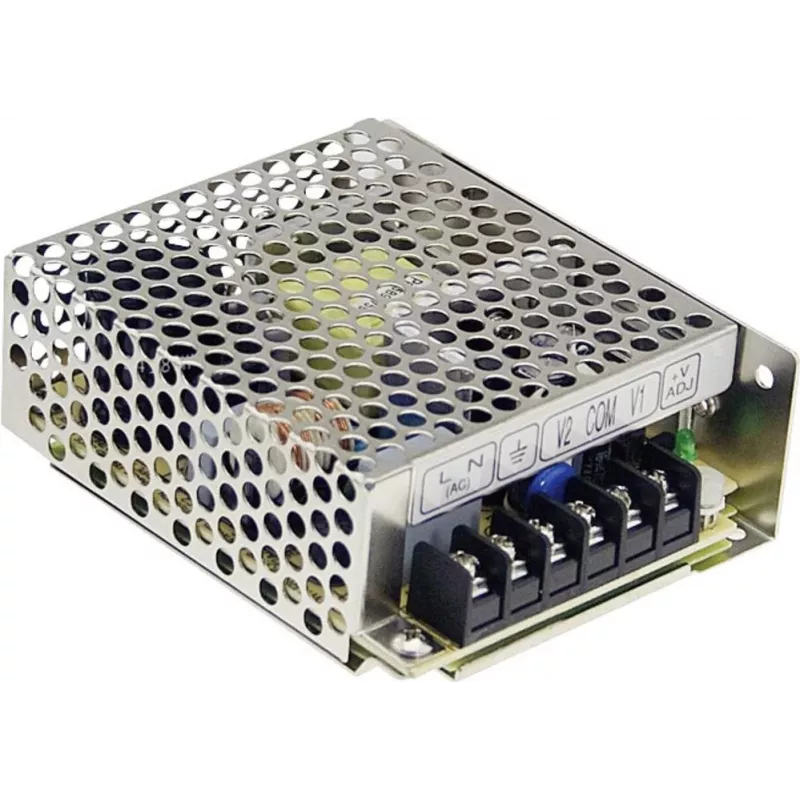

MEAN WELL RS-35-24 Fuente de alimentación AC/DC, 24V 1,5A 36W, carcasa metálica, industrial

Industrial and automation systems often require a stable and reliable DC power source that can handle a wide range of AC input voltages and harsh environmental conditions. The MEAN WELL RS-35-24 is a compact, enclosed AC/DC power supply that delivers a regulated 24V DC output at up to 1.5A, making it an excellent choice for powering sensors, controllers, and other low-power devices in industrial settings.

Who is it for

This power supply is ideal for system integrators, machine builders, and maintenance engineers who need a dependable power source for industrial control panels, automation equipment, and other applications where space is limited but reliability is critical.

Main features

• Wide input voltage range: 85~264 VAC or 120~370 VDC, suitable for global use
• Output voltage adjustable from 21.6V to 26.4V via built-in potentiometer
• High efficiency up to 84% and low ripple & noise (150mVp-p)
• Comprehensive protection: overload, over voltage, and short circuit
• Durable metal case with free air convection cooling
• Operating temperature range: -25°C to +70°C
• Complies with safety standards UL60950-1 and TUV EN60950-1
• EMC compliance: EN55022 Class B and EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Specifications

• Input voltage: 85~264 VAC / 120~370 VDC
• Input frequency: 47~63 Hz
• Output voltage: 24 VDC (adjustable 21.6~26.4 V)
• Rated output current: 1.5 A
• Rated output power: 36 W
• Efficiency: 84%
• Ripple & noise: 150mVp-p
• Isolation voltage: I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
• Operating humidity: 20~90% RH non-condensing
• Storage temperature: -40~+85°C
• MTBF: >500K hrs (MIL-HDBK-217F)
• Housing material: Metal
• Cooling: Free air convection

Tips

When installing, ensure adequate ventilation around the unit to maintain optimal performance and longevity. The output voltage can be fine-tuned using the built-in potentiometer to compensate for voltage drops in long cable runs.
