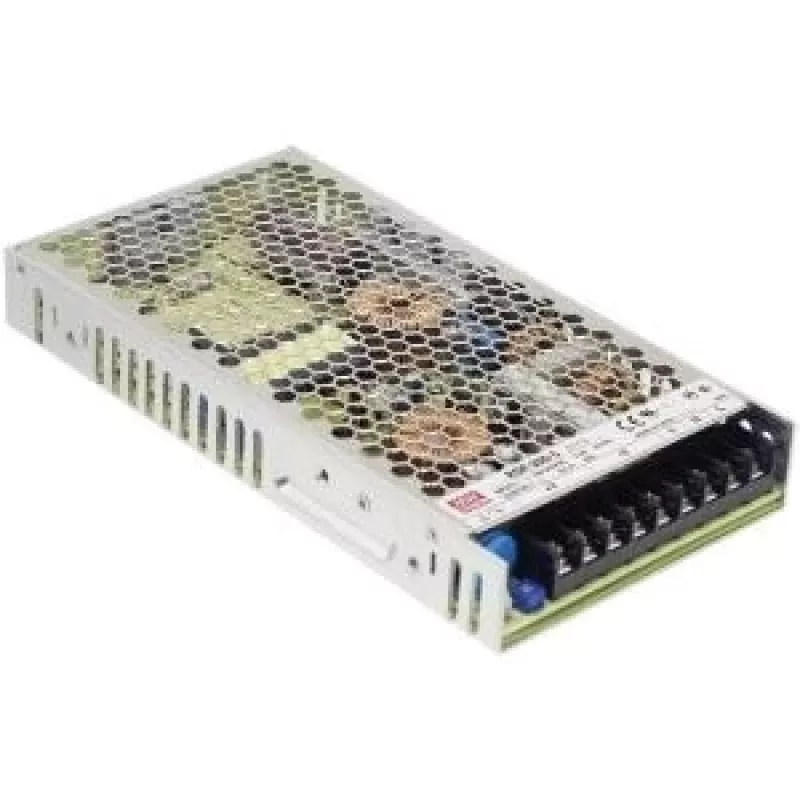

MEAN WELL RSP-200-27 202,5W 27V 7,5A fuente de alimentación cerrada con PFC, 1U Low Profile, carcasa metálica

Industrial automation engineers and system integrators rely on the MEAN WELL RSP-200-27 to deliver stable 27V DC power in compact 1U rack-mount and control cabinet installations. This 202.5-watt enclosed power supply combines active PFC, forced-air cooling, and comprehensive protections to keep sensitive equipment running reliably in demanding environments.

Key specifications

• Output power: 202.5 W
• Output voltage: 27 VDC
• Output current: 7.5 A
• Input voltage range: 88 ~ 264 VAC / 124 ~ 370 VDC
• Efficiency: 89% (typical)
• Form factor: 1U low profile, metallic housing
• Cooling: built-in DC fan forced air
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30 ~ +70°C
• Ripple & noise: 150mVp-p
• Active PFC function
• Remote control: remote ON/OFF, remote sense
• Safety standards: UL60950-1, TUV EN60950-1
• MTBF: >200,000 hours

Why choose it

The RSP-200-27 offers high efficiency and active power factor correction, reducing energy waste and meeting harmonic current requirements. Its 1U low-profile design saves valuable rack space, while the built-in fan ensures reliable cooling even at full load. Remote ON/OFF and remote sense provide flexible integration into automated systems.

Ideal use cases

• Industrial control systems and PLC power
• Test and measurement equipment
• LED lighting and signage
• Telecommunications and networking devices
• Factory automation and machinery

Good to know

The unit operates across a wide input voltage range, making it suitable for global use. It is backed by MEAN WELL's reputation for quality and a long MTBF, ensuring years of dependable service. The metallic housing provides durability and effective heat dissipation.
