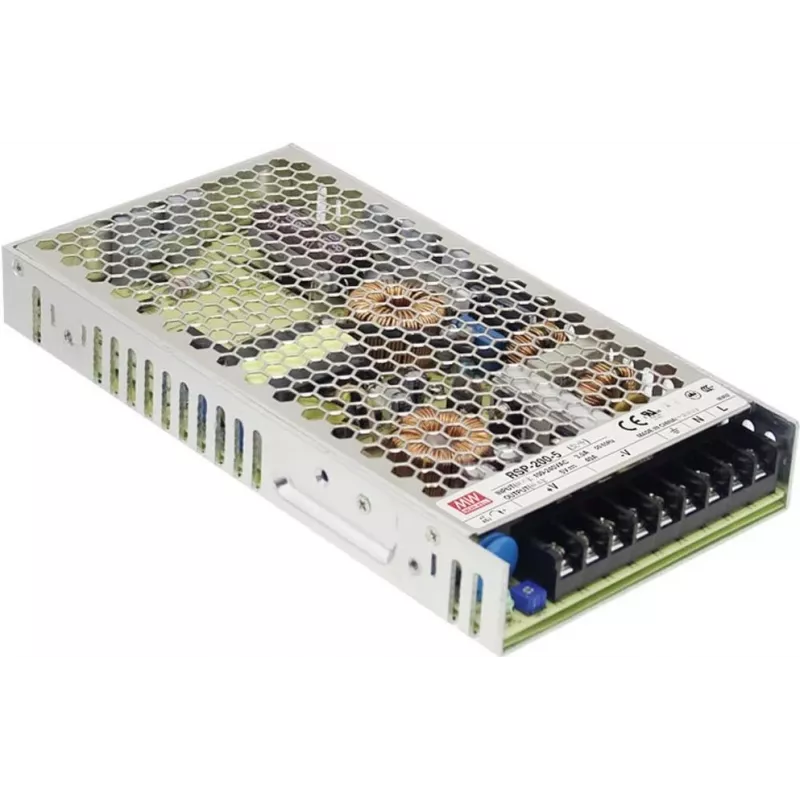

MEAN WELL RSP-200-5 Fuente de alimentación 200W 1U carcasa metálica

The MEAN WELL RSP-200-5 is a compact 200-watt industrial-grade power supply in a low-profile 1U metal enclosure, delivering a stable 5V DC output at up to 40A with active PFC and fanless cooling for silent, reliable operation in demanding applications.

Advantages

High efficiency up to 88% reduces energy costs and heat generation. Active power factor correction (PFC) ensures compliance with international regulations and optimal use of AC power. The fanless design with free air convection eliminates noise and moving parts, enhancing long-term reliability. Comprehensive protections—short circuit, overload, over voltage, and over temperature—safeguard both the supply and connected equipment. Remote sense capability compensates for voltage drops in long cable runs, maintaining precise output at the load.

Suitable for

• Industrial automation and control systems
• LED lighting and signage
• Telecommunications equipment
• Test and measurement instruments
• Any application requiring a reliable 5V high-current source

Key specifications

• Output: 5V DC, 40A, 200W
• Input: 88–264V AC or 124–370V DC
• Efficiency: up to 88%
• Active PFC (>0.95 at full load)
• Fanless cooling, 1U low-profile metal case
• Protections: short circuit, overload, over voltage, over temperature
• Adjustable output voltage: 4.5–5.5V
• Remote sense function
• Isolation: 3kV AC input to output
• Safety: UL60950-1, TUV EN60950-1, CB, CE
• EMC: EN55022 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• MTBF: >200K hours (MIL-HDBK-217F)
• Operating temperature: -30 to +70°C

Recommendations

For engineers and system integrators seeking a dependable, high-current 5V power source in a space-saving 1U format, the RSP-200-5 offers an ideal balance of performance, protection, and silent operation.
