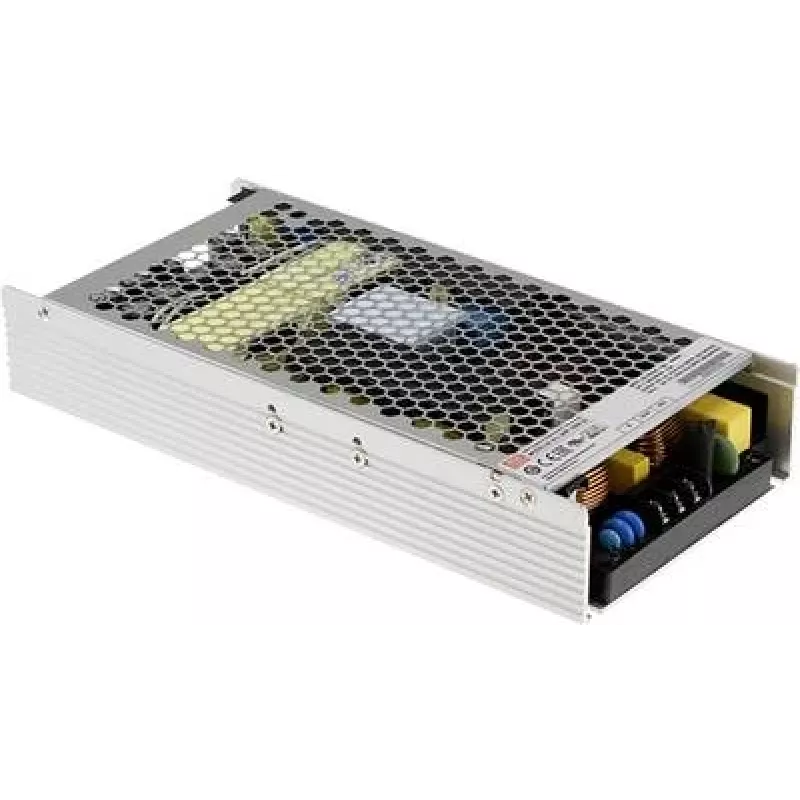

MEAN WELL UHP-1000-24 Fuente de alimentación 1000 W 24 V

The MEAN WELL UHP-1000-24 is a slim, enclosed AC-DC single-output power supply with active PFC, designed to deliver 24 V DC at up to 42 A (1000 W). It accepts a wide input voltage range of 90–264 V AC and meets RoHS requirements. The compact metal housing (115 mm × 240 mm × 41 mm) makes it suitable for installations where space is limited and a reliable 24 V power source is needed.

Advantages

The unit provides a high continuous output power of 1000 W in a slim form factor, includes active power factor correction for improved mains compatibility, and offers remote ON/OFF control and a DC OK signal for system integration. Its enclosed design and RoHS compliance support safe and standards-aligned deployment.

Suitable for

• Industrial controllers and automation equipment
• Telecommunication and network devices
• LED lighting systems and signage
• Embedded systems and rack-mounted applications with limited depth

Key specifications

• Output: 24 V DC, 42 A (1000 W)
• Input voltage: 90–264 V AC
• Type: AC-DC slim single output enclosed power supply with PFC
• Remote functions: Remote ON/OFF, DC OK signal
• Compliance: RoHS
• Dimensions (W×D×H): 115 × 240 × 41 mm
• Brand/Model: MEAN WELL UHP-1000-24 (MPN: UHP-1000-24, EAN: 4021087051828)

How to use

Mount the power supply in a location with adequate ventilation and secure it according to the manufacturer’s mounting instructions. Connect the AC input to a suitable 90–264 V AC source using appropriately rated wiring and protective devices. Connect the 24 V DC output to the load, observing correct polarity and current rating. Use the provided remote ON/OFF terminals to control output power remotely and monitor the DC OK signal for system status feedback.

Recommendations

Ensure the installation includes appropriate overcurrent and overvoltage protection, maintain ambient temperature and ventilation within the manufacturer’s specified limits, and verify wiring and load compatibility before powering the unit.
