Mecanismo de interruptor, gira 310800 interruptor basculante conmutador 2f mecanismo — mecanismo de interruptor basculante conmutador

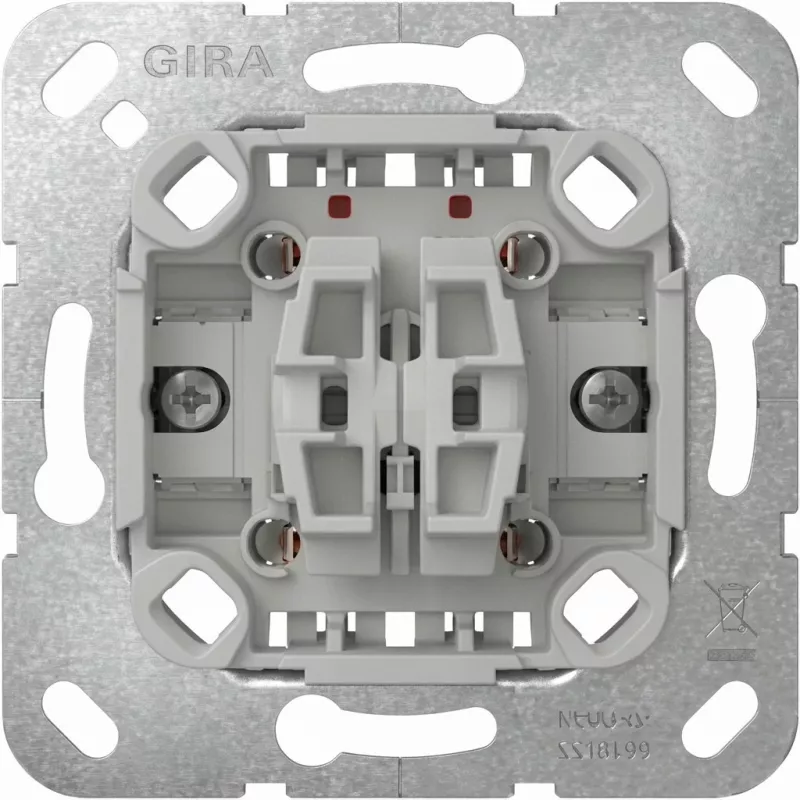

gira 310800 Wippschalter Wechselsch. 2f Einsatz is a compact two-way rocker switch insert designed for controlling a lighting or power circuit from two separate locations. Supplied as a modular insert, it fits into compatible frames and base units, making it suitable for retrofit projects and new installations where a frame-mounted changeover switch is required. The insert provides reliable mechanical switching with a conventional rocker actuation and is intended for installation in standard switch systems by qualified personnel.

Advantages

The insert offers space-efficient design and standardized dimensions for compatibility with a variety of frame systems. It provides clear tactile feedback through a rocker mechanism and supports two-way (changeover) switching to allow control from two different locations. The construction is intended for secure mounting within a frame and for integration into existing wiring practices in residential and light commercial electrical systems.

Suitable for

Key specifications

How to use

Install the insert into a compatible frame and secure it according to the frame manufacturer’s instructions. The electrical connections should be made with power off, following local wiring regulations and using the appropriate terminal clamps or screws. The insert is intended to be wired into a two-way switching configuration together with a corresponding switch at the alternate location to enable control of the same circuit from two points. After installation, restore power and test both switch locations to verify correct changeover operation.

Recommendations

Mount and wire the insert only by a qualified electrician. Verify compatibility with the chosen frame system before installation. Use the insert indoors and within the intended voltage and current ratings of the overall installation; do not exceed the rating of connected circuits.
