Mecanismo de persiana Jung 1731JE Universal – mecanismo de control para persianas

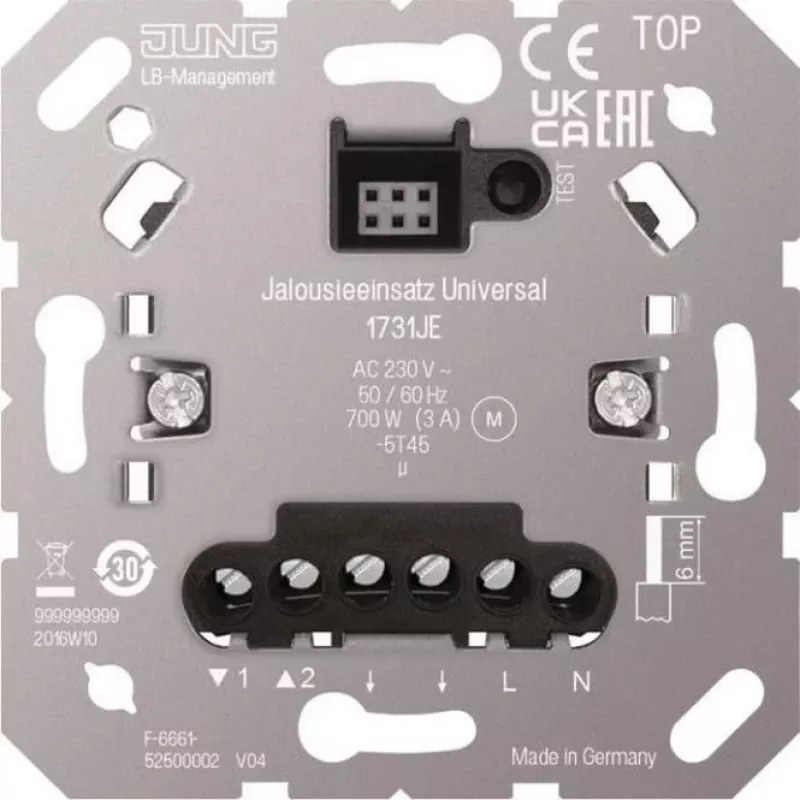

Jung 1731JE Universal shutter/blind insert is a switch-module designed to fit into compatible Jung switch ranges to control jalousies and blinds. The insert provides functions for raising and lowering blinds and for tilting slats when installed with the correct wiring and external actuator or switch. It is intended for flush-mounted installations in residential and light commercial environments where a switch-mounted solution is preferred.

Advantages

The unit offers a compact form factor that integrates with standard Jung frames, allowing consistent appearance with other control elements. It supports both up/down movement and slat tilt control within a single insert, reducing the need for multiple devices in the same switch box. The design is compatible with typical low-voltage wiring schemes used for motorised blinds and is suitable for retrofit and new installations where a switch-mounted control is required.

Suitable for

Key specifications

How to use

Install the insert into a compatible Jung frame following the manufacturer’s installation instructions and local electrical regulations. Connect the insert to the blind motor or actuator using the correct wiring scheme for up/down and tilt functions. After wiring and mounting, test the up, down and tilt operations and adjust end stops or motor limits at the actuator if required. Ensure power is isolated during installation and commissioning to prevent electrical hazards.

Recommendations

Use only with compatible Jung frames and blind motors/actuators. Verify wiring diagrams and motor specifications before installation. For safety and compliance, installation and commissioning should be carried out by a qualified electrician.
