Medidor de espesor de pintura Blue Technology DX-13-FE

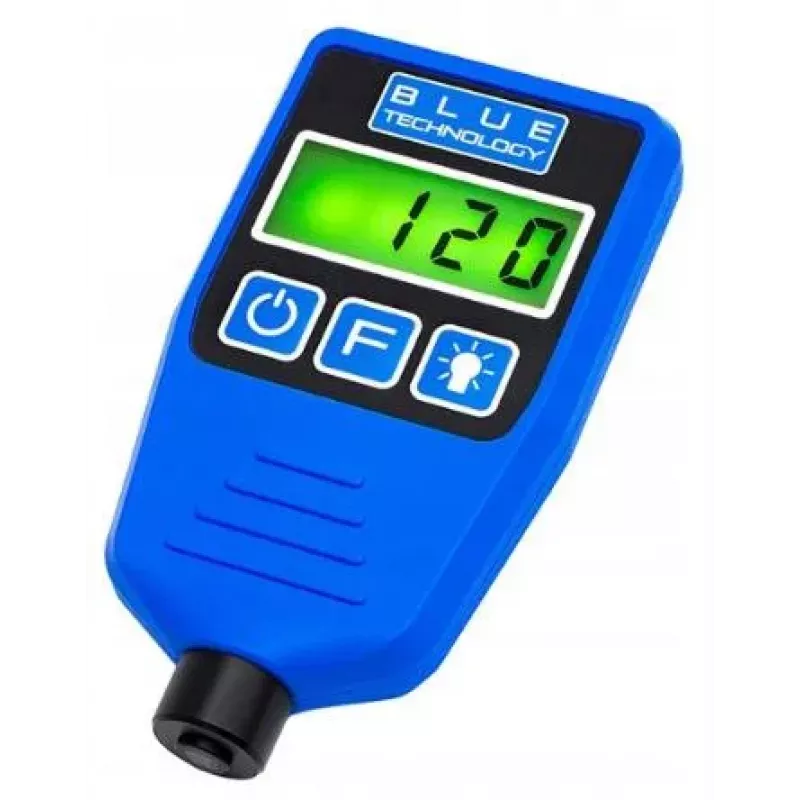

The Blue Technology DX-13-FE Paint Thickness Gauge is a professional, non-destructive measuring instrument designed for precise coating thickness measurement on ferrous (Fe), galvanized steel (Fe+Zn), and aluminum (Al) substrates. With an integrated spherical probe and automatic substrate detection, it delivers reliable readings across a wide range of applications in automotive, industrial, and quality control settings.

Advantages

Automatic substrate detection eliminates guesswork, while the backlit LCD display ensures easy reading in low-light conditions. The 5-tone sound signaling system provides audible feedback for different thickness ranges, and the built-in LED flashlight illuminates dark measurement areas. Compact and portable, it comes with a protective case for safe storage and transport.

Suitable for

• Automotive paint inspection and refinishing
• Industrial coating thickness measurement on metal surfaces
• Quality control in manufacturing and metalworking
• Corrosion protection layer assessment
• Anodizing and plating thickness verification

Key specifications

• Measurement range: 0–2000 µm (0–2 mm)
• Resolution: 10 µm (0–1000 µm), 50 µm (1000–2000 µm)
• Accuracy: ±10 µm (0–500 µm), ±2% + 10 µm (500–2000 µm)
• Probe: Integrated, spherical
• Display: Backlit LCD
• Memory: 30 measurements
• Automatic shutdown after 2 minutes
• Power: 2x AAA batteries (included)
• Operating temperature: -20°C to 40°C

Recommendations

For best results, perform zero calibration on the uncoated substrate before each measurement session. Use the included calibration plates for manual calibration when required. Store the gauge in the provided protective case when not in use.
