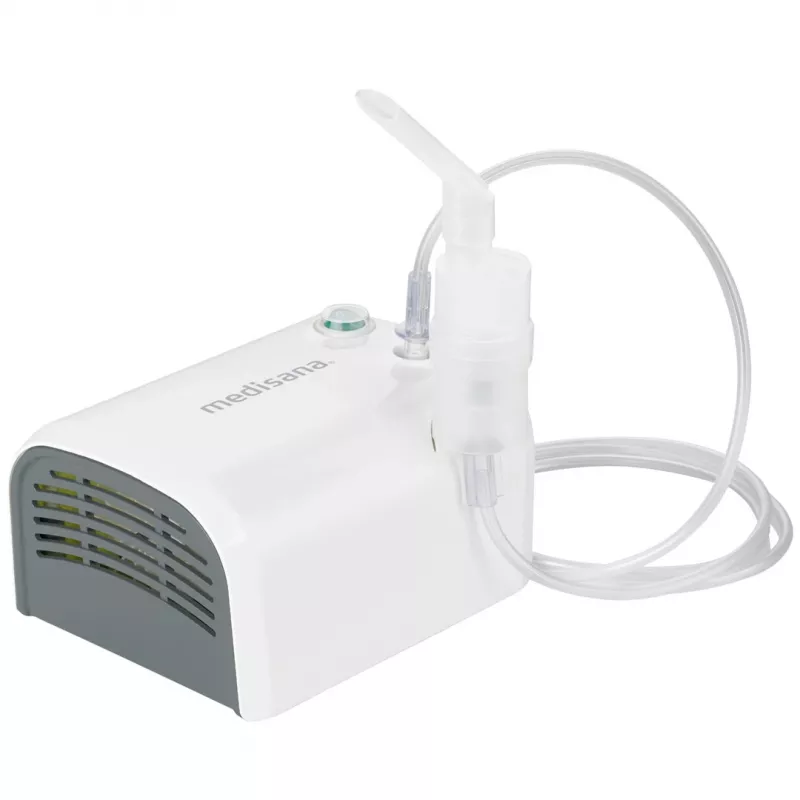

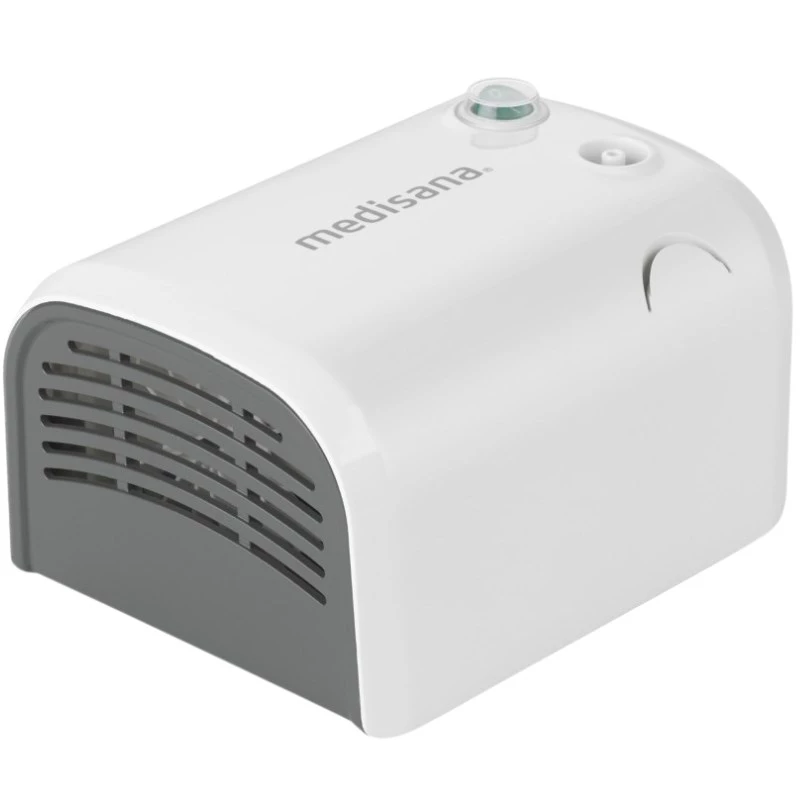

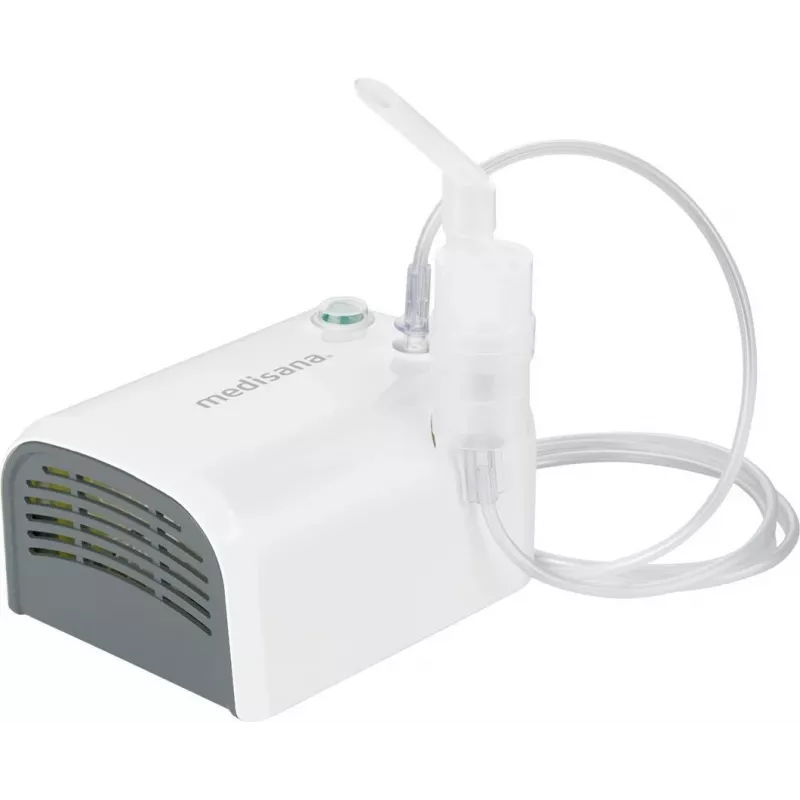

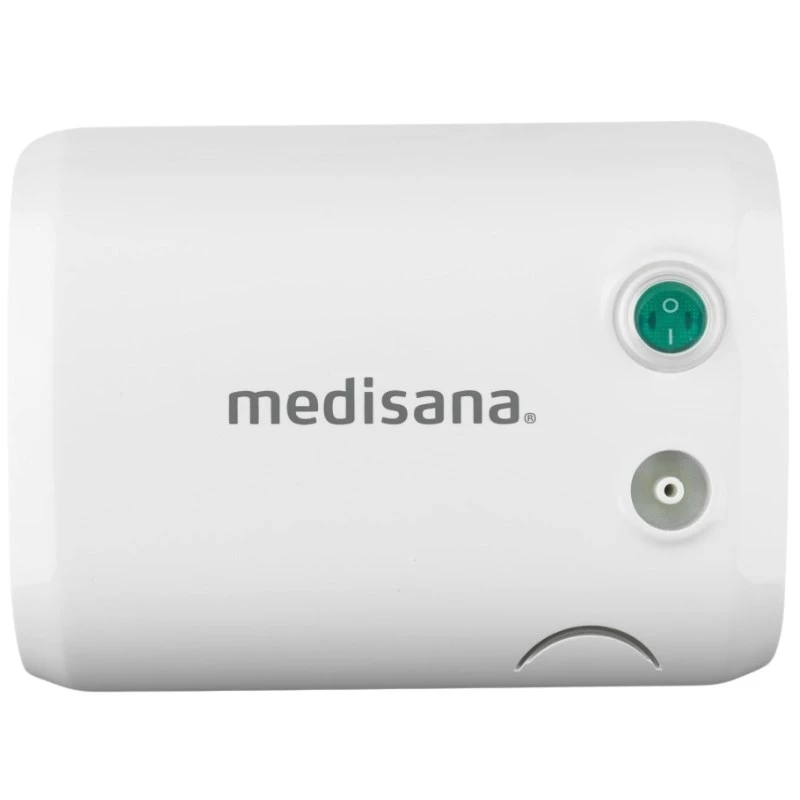

Medisana IN 520 Nebulizador inhalador de compresor (54548)

Compressor nebulizer for effective inhalation therapy of the upper and lower respiratory tract. The Medisana IN 520 delivers medication as a fine mist with particle size under 5 µm, ensuring deep lung deposition for conditions such as asthma, bronchitis, and colds. Its powerful compressor and precise nebulization rate make it suitable for both adults and children.

Advantages

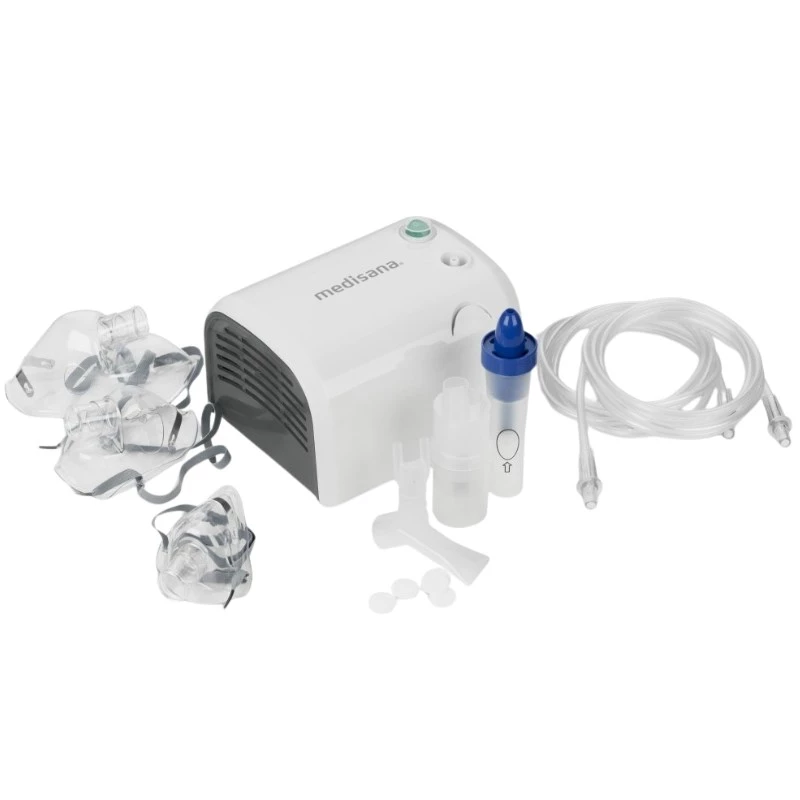

Reliable compressor technology with a nebulization rate of over 0.2 ml/min and a residual volume below 0.8 ml for efficient medication use. Includes a complete accessory set: adult and child masks, mouthpiece, nosepiece, air tube, and 5 replacement filters. Quiet operation at less than 65 dB and a 30-minute on/off cycle for safe, continuous use.

Suitable for

• Treatment of asthma, bronchitis, and other respiratory conditions
• Adults and children (with appropriate mask)
• Home use and clinical settings
• Patients requiring regular inhalation therapy

Key specifications

• Nebulizer type: Compressor nebulizer
• Particle size (MMAD): < 5 µm
• Nebulization rate: > 0.2 ml/min
• Medication capacity: 2 - 10 ml
• Power source: Mains powered (AC 230V ~ 50Hz)
• Noise level: < 65 dB
• Operating pressure: 0.8 - 1.4 bar
• Air flow: 4 - 7 l/min
• Power consumption: 60 W
• Operating mode: Intermittent (30 min ON / 30 min OFF)
• Medical device class: IIa
• Certifications: CE
• Colour: White / Blue
• Housing material: Medical-grade plastic
• Cable length: Approx. 1.5 m
• Storage temperature: -20°C to +70°C
• Operating temperature: +10°C to +40°C
• Residual volume: < 0.8 ml

Recommendations

For optimal results, use the nebulizer as directed by your healthcare provider. Clean all parts after each use and replace filters regularly. The included child mask makes it easy to administer medication to young patients.
