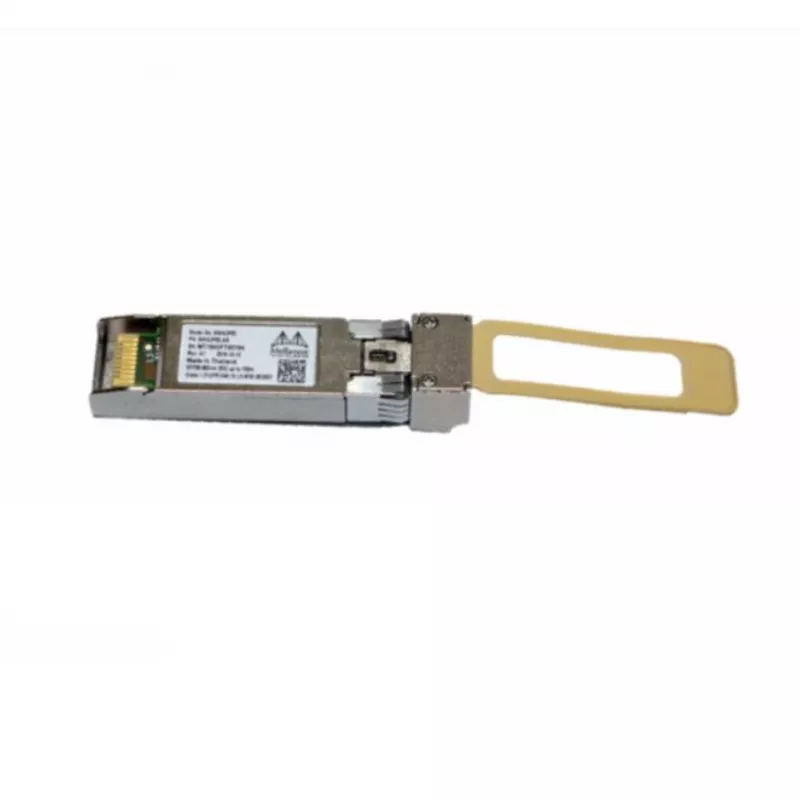

Mellanox MMA2P00-AS Módulo receptor SFP28 LAN de 25 Gigabit

The Mellanox MMA2P00-AS is a high-performance SFP28 transceiver module designed for 25 Gigabit Ethernet networks. It enables reliable, high-speed connectivity in data centers and enterprise environments, supporting 25GBASE-SR standards over multi-mode fiber.

Advantages

This module offers low power consumption (typically under 1W) and hot-pluggable capability, ensuring minimal downtime and easy maintenance. With support for Digital Diagnostics Monitoring (DDM), network administrators can monitor real-time performance parameters for optimal operation.

Suitable for

• Data center interconnects
• Enterprise network upgrades
• High-bandwidth server and storage connections
• 25GbE backbone links

Key specifications

• Transceiver Type: SFP28
• Data Rate: 25 Gigabit Ethernet (25GbE)
• Interface: 25GBASE-SR
• Connector Type: LC Duplex
• Wavelength: 850 nm
• Max Distance: 100 m (OM4 MMF), 70 m (OM3 MMF)
• Fiber Type: Multi-Mode Fiber (MMF)
• Form Factor: Pluggable Module
• Hot-Pluggable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Power Consumption: Typically <1 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Supply Voltage: 3.3 V
• Compliance: IEEE 802.3by, SFF-8472, SFF-8431, SFF-8432
• Duplex Mode: Duplex

Recommendations

For optimal performance, pair this module with OM4 multi-mode fiber cables and compatible Mellanox switches or network interface cards. Ensure proper handling and insertion to maintain signal integrity.
