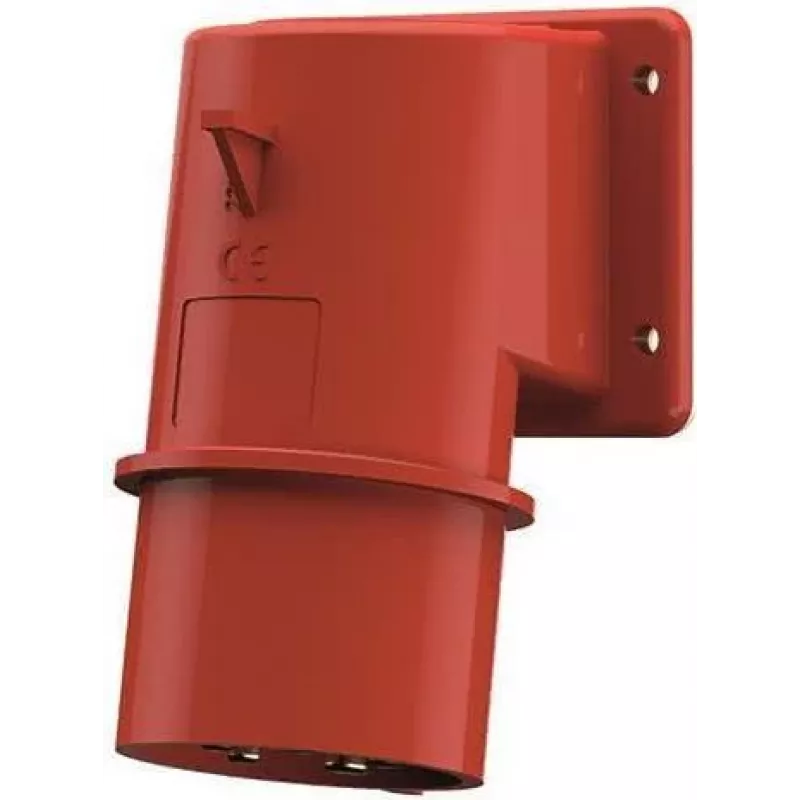

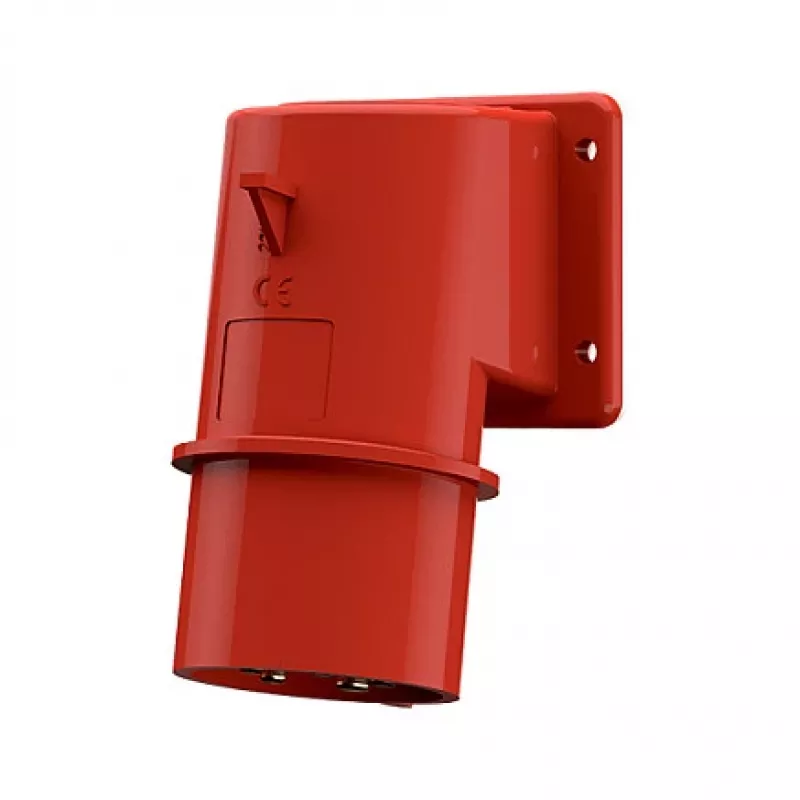

MENNEKES 32A conector macho de superficie 5 polos 6h 400V inversor de fases 330 IP44 sin tapa abatible

The MENNEKES 330 stands out as a phase inverter plug, allowing quick reversal of phase sequence directly at the connection point—an essential feature for rotating equipment where direction must be changed on site. Unlike standard 32 A plugs, this 5-pole unit combines high current capacity with a 6h earth position and IP44 protection, making it suitable for industrial environments where splash water and dust are present.

Highlights

• 32 A current rating for demanding three-phase applications
• 5-pole (3P+N+PE) configuration with 6h earth contact position
• Integrated phase inverter for reversing phase sequence without rewiring
• IP44 ingress protection against solid objects and water splashes
• Surface-mounted design with screw terminals for secure wiring
• Robust polyamide housing in red, built to IEC 60309 standards

In daily use

Installed on machinery or distribution panels, the MENNEKES 330 provides a reliable connection point for 400 V equipment. The phase inverter mechanism is operated by a simple tool-free action, saving time when commissioning motors or testing rotation direction. The rear cable entry and surface mounting ensure a clean installation, while the absence of a hinged lid allows for quick access when frequent plugging and unplugging is required.

Full specifications

• Current rating: 32 A
• Voltage rating: 400 V AC
• Frequency: 50/60 Hz
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Ingress protection: IP44
• Connection technology: Screw terminals
• Mounting type: Surface mounting
• Housing material: Polyamide (PA6)
• Colour: Red
• Standard: IEC 60309
• Operating temperature range: -25°C to +40°C
• Cable entry: Rear
• Flammability rating: UL94 V2
• Contact material: Brass, nickel-plated
• Lid/cover: Without hinged lid

Final note

For applications requiring phase reversal at the connection point, the MENNEKES 330 offers a practical and robust solution, built to withstand the rigours of industrial use.
