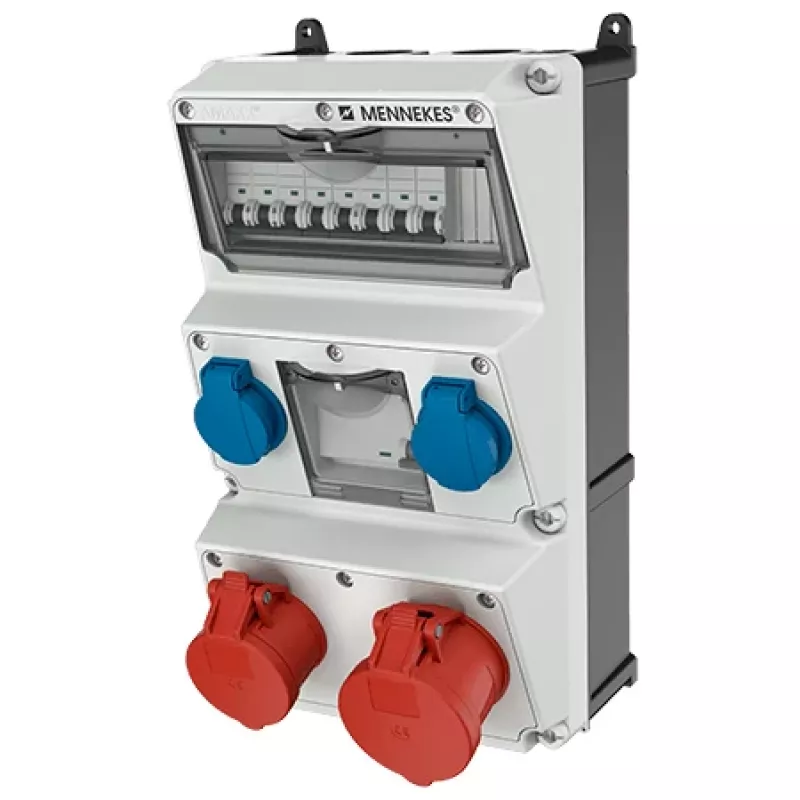

MENNEKES AMAXX combinación de tomas de corriente, IP44, 32 A, 400 V, 2x CEE + 2x Schuko, interruptor diferencial 930080

This MENNEKES AMAXX socket combination is a robust power distribution unit designed for industrial and outdoor applications where splash-proof protection is required. It provides a centralized and safe connection point for multiple electrical devices, featuring two CEE sockets and two Schuko sockets, all protected by an integrated residual current device (RCD) and circuit breakers.

Advantages

The AMAXX series is known for its durable polycarbonate housing, which offers excellent impact resistance and protection against moisture and dust. The IP44 rating ensures reliable operation in harsh environments. The integrated RCD enhances safety by detecting leakage currents and disconnecting the circuit, preventing electrical shocks. The combination of different socket types allows flexible use for various equipment.

Suitable for

• Workshops and garages
• Construction sites
• Outdoor events and markets
• Industrial facilities
• Agricultural buildings

Key specifications

• Housing material: Polycarbonate
• IP protection class: IP44 (splash-proof)
• Rated current: 32 A
• Rated voltage: 400 V
• Frequency: 50/60 Hz
• CEE sockets: 1x 32 A 5-pole 400 V 6h, 1x 16 A 5-pole 400 V 6h
• Schuko sockets: 2x 16 A 230 V
• RCD: 1x 40 A, 4-pole, 30 mA, Type A
• Circuit breakers: C32 A 3-pole (CEE 32A), C16 A 3-pole (CEE 16A), 2x C16 A 1-pole (Schuko)
• Cable entry: 1x M25 top, 1x M25 blind plug bottom
• Connection type: Screw terminals
• Mounting: Wall mounting

Recommendations

For safe operation, ensure the unit is installed by a qualified electrician and that the supply cable is appropriately sized. Regularly test the RCD function. The AMAXX combination is ideal for fixed installations where multiple power outlets are needed in a protected environment.
