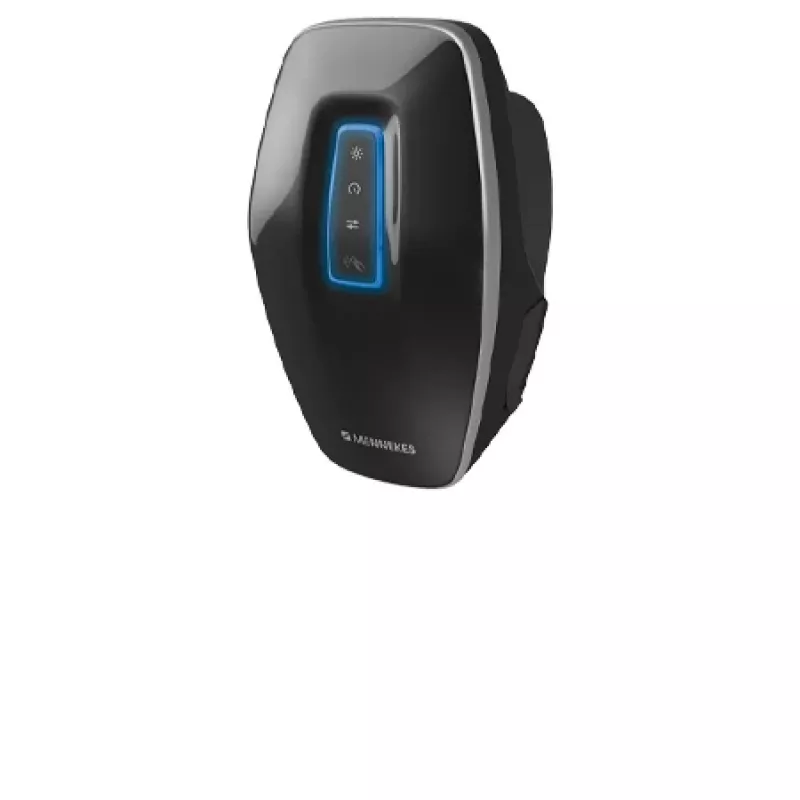

MENNEKES AMTRON 4Business 730 22 T2 estación de carga Wallbox 22 kW Type 2 toma 1347112405BK

For commercial and fleet environments that demand reliable, high-power EV charging with integrated energy management, the MENNEKES AMTRON 4Business 730 22 T2 delivers 22 kW of AC charging power through a Type 2 socket, enabling fast turnaround for electric vehicles. This wall-mounted charging station supports Mode 3 charging according to IEC 61851-1 and operates on a 400 V three-phase supply with a maximum current of 32 A.

Who is it for

Businesses, fleet operators, and commercial properties seeking a robust, networked charging solution with local load management and flexible connectivity options.

Main features

• 22 kW charging power via Type 2 charging socket
• Integrated 6 mA DC fault detection for enhanced safety
• MID-certified energy meter for accurate consumption billing
• Connectivity: Ethernet (LAN), 4G/LTE, and Wi-Fi
• RFID authentication for user access control
• OCPP 1.6 J communication protocol for backend integration
• Integrated local load management (master/slave) to prevent grid overload
• LED status display for clear operational indication
• UV-resistant plastic housing with IP54 protection and IK10 impact resistance
• Operating temperature range: -30°C to +50°C

Specifications

• Charging power: 22 kW
• Charging mode: Mode 3 (IEC 61851-1)
• Connector type: Type 2 charging socket
• Number of charging points: 1
• Input voltage: 400 V AC (3-phase)
• Max charging current: 32 A
• Integrated DC fault detection: 6 mA
• Energy meter: MID-certified
• Connectivity: Ethernet (LAN), 4G/LTE, Wi-Fi
• Authentication: RFID
• Communication protocol: OCPP 1.6 J
• Load management: Integrated local load management (master/slave)
• Protection class: IP54
• Impact resistance: IK10
• Housing material: UV-resistant plastic
• Mounting type: Wall-mounted
• Operating temperature range: -30°C to +50°C
• Status indication: LED display

Tips

For optimal performance, ensure a three-phase 400 V supply is available and consult a qualified electrician for installation. Use the integrated load management to balance charging across multiple units on the same circuit.
