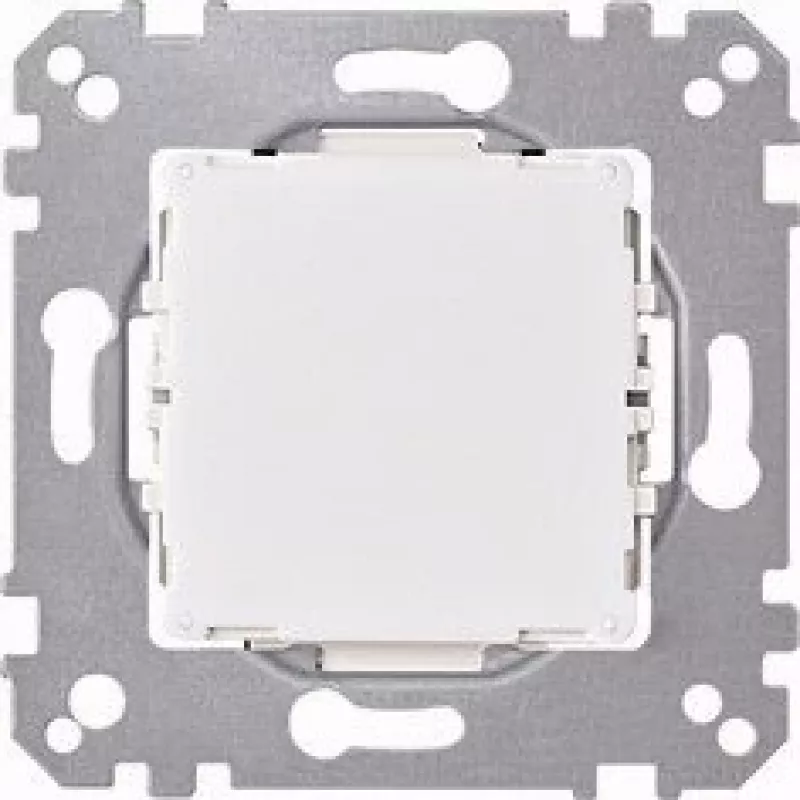

Merten Mecanismo de piloto de señalización LED, rojo, 230 V AC, montaje empotrado 587091

In modern electrical installations, clear and reliable status indication is essential for safety and convenience. The Merten LED Signal Light Insert 587091 provides a bright red LED indicator that mounts flush into standard Merten frames, offering an elegant solution for visual signaling in residential and commercial environments. Its low power consumption and long lifespan make it a maintenance-free choice for indicating the status of circuits, devices, or alarm conditions.

Who is it for

This signal light insert is ideal for electricians, facility managers, and homeowners who need a dependable visual indicator for switches, sockets, or control circuits. It is particularly suited for use in hotels, offices, and public buildings where clear signaling is required without compromising on aesthetics. The insert integrates seamlessly with Merten System M and System Design ranges, ensuring a consistent look across the installation.

Main features

• Bright red LED light source for clear visibility
• Flush-mounted design compatible with Merten System M, System Design, M-Smart, M-Plan, M-Pure, and M-Star frames
• Low power consumption of less than 0.5 W for energy efficiency
• Operates on 230 V AC, 50/60 Hz mains supply
• Screw terminals for secure and easy wiring
• Halogen-free thermoplastic housing for environmental safety
• IP20 protection when installed, suitable for indoor use
• Wide ambient temperature range from -5 °C to +40 °C

Specifications

• Brand: Merten
• Model: 587091
• Product type: LED signal light insert
• Light source: LED
• Light colour: Red
• Rated operating voltage: 230 V AC
• Operating frequency: 50/60 Hz
• Power consumption: < 0.5 W
• Current consumption: < 1 mA
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic (PC)
• Protection class: IP20 (when installed)
• Ambient temperature range: -5 to +40 °C
• Storage temperature range: -25 to +55 °C
• Relative humidity: 5 - 95 % (non-condensing)
• Halogen-free: Yes
• Number of colours: 1 (single colour)
• Function: Indicator / signal light

Tips

For optimal visibility, install the signal light insert at eye level in areas where status indication is critical. Ensure the power is switched off before installation and use appropriate wiring practices. The insert can be combined with Merten frames of various designs to match your interior décor. Regularly check the LED for any signs of dimming and replace the insert if necessary to maintain reliable signaling.
