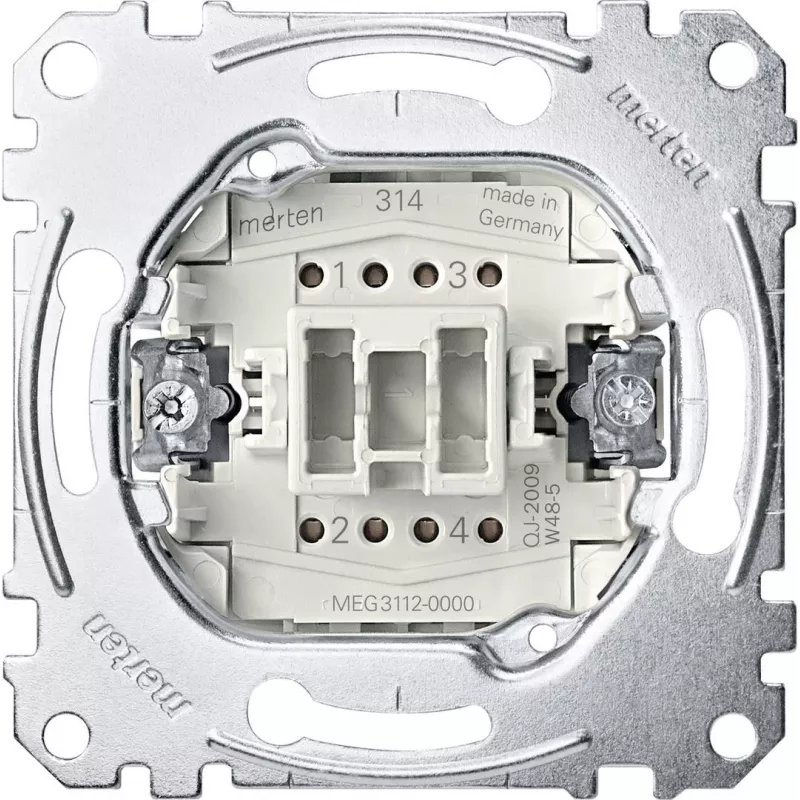

Merten Mecanismo interruptor bipolar 16AX 250V AC, empotrar, bornes de tornillo MEG3612-0000

Engineered for reliable circuit interruption, this Merten switch insert delivers a 16AX current rating at 250V AC, ensuring safe disconnection in residential and commercial installations. The 2-pole design simultaneously isolates both live conductors, providing enhanced safety during maintenance.

Overview

The Merten MEG3612-0000 is a flush-mounted disconnecting switch insert compatible with the entire Merten System range, including System M, System Design, System Basis, System Fläche, System Glas, System Nature, System P, System R, and System R.classic. Its modular construction allows integration into existing frames and covers, making it a versatile choice for renovations and new builds alike.

What stands out

• 2-pole disconnection for complete circuit isolation
• Robust 16AX switching capacity for demanding loads
• Halogen-free thermoplastic housing for environmental safety
• Compatible with screw terminals for secure wiring
• Wide compatibility with Merten switch ranges

Technical details

• Switch type: Disconnecting switch (Ausschalter)
• Number of poles: 2
• Rated current: 16 AX
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted (Unterputz)
• Connection type: Screw terminals
• Terminal capacity (rigid): 1.5 - 2.5 mm²
• Terminal capacity (flexible): 1.5 - 2.5 mm²
• Material: Thermoplastic, halogen-free
• IP protection class: IP20 (with appropriate cover)
• Operating temperature: -5 to 40 °C
• Storage temperature: -5 to 50 °C
• Actuation type: Rocker (Wippe)
• Number of rockers: 1
• Function: ON/OFF switching

Our verdict

A dependable and future-proof choice for any Merten installation, combining safety, compatibility, and ease of use in a compact insert.
