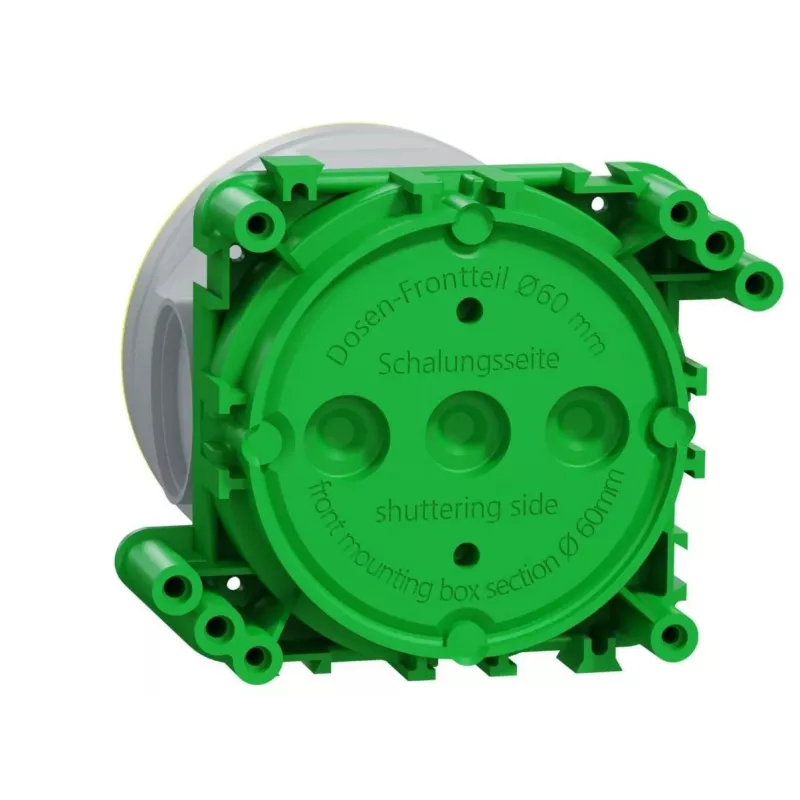

MERTEN MEG3970-7504 caja de derivación empotrar verde 68mm

The MERTEN MEG3970-7504 is a high-quality flush-mounted junction box from the Merten System M series, designed for solid walls and masonry. This green thermoplastic box offers reliable cable management with 8 cable entry points and compatibility with M20/M25 conduits. It is halogen-free, flame retardant, and complies with DIN VDE 0606-1, ensuring safety and durability in electrical installations.

Advantages

Flame-retardant and self-extinguishing material enhances safety. Halogen-free construction reduces toxic fumes in case of fire. Easy flush-mounting with standard milling diameter of 60 mm. Versatile cable entries simplify installation.

Suitable for

• Flush-mounted junction boxes in solid walls and masonry
• Electrical installations requiring IP20 protection
• Use with M20/M25 conduits

Key specifications

• Product Type: Junction Box
• Mounting: Flush-mounted
• Colour: Green
• Material: Thermoplastic
• Outer Diameter: 68 mm
• Installation Depth: 48 mm
• Milling Diameter: 60 mm
• Cable Entries: 8
• Conduit Compatibility: M20 / M25
• Protection Class: IP20
• Flame Retardant: Yes (self-extinguishing)
• Halogen-free: Yes
• Operating Temperature: -5 to +60 °C
• Standards: DIN VDE 0606-1
• Series: Merten System M

Recommendations

For optimal installation, use with compatible M20 or M25 conduits and ensure proper flush-mounting in solid walls. Always follow local electrical codes.
