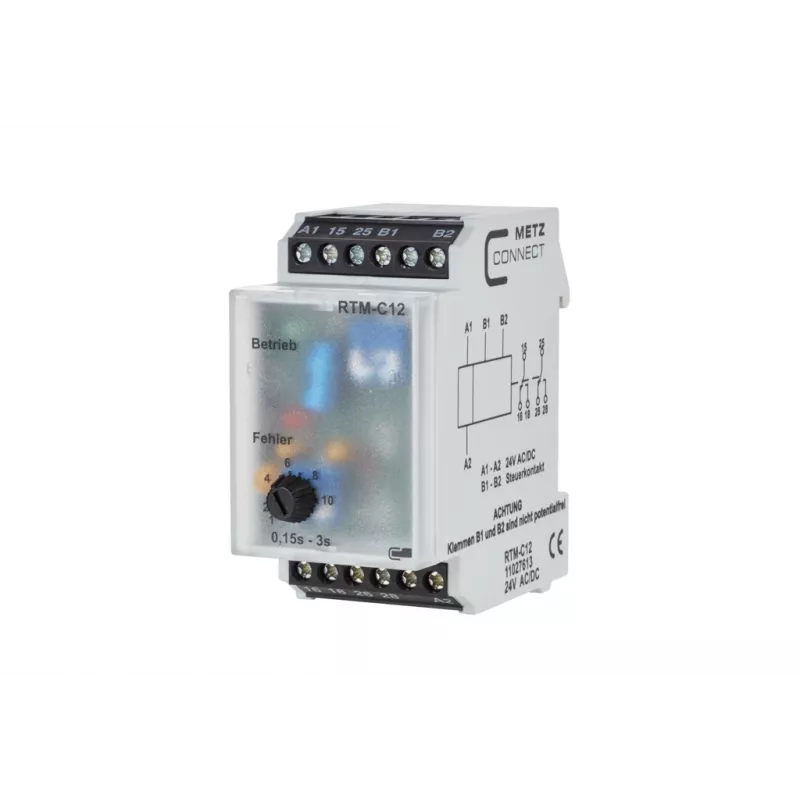

METZ CONNECT 11027613 relé multifunción temporizador, 24V AC/DC, 2W, 1 CO, 0,05s-100h, carril DIN

Industrial automation often requires precise time-based control of circuits, such as delaying a start, extending a stop, or generating pulses. The METZ CONNECT 11027613 multi-function timing relay solves this by offering seven selectable functions and a wide adjustable time range from 0.05 seconds to 100 hours, all in a compact 17.5 mm DIN rail housing.

Who is it for

This relay is intended for panel builders, system integrators, and maintenance technicians who need a reliable, space-saving timing solution for control cabinets. It suits applications in building automation, machine control, and process industries where 24V AC/DC is available.

Main features

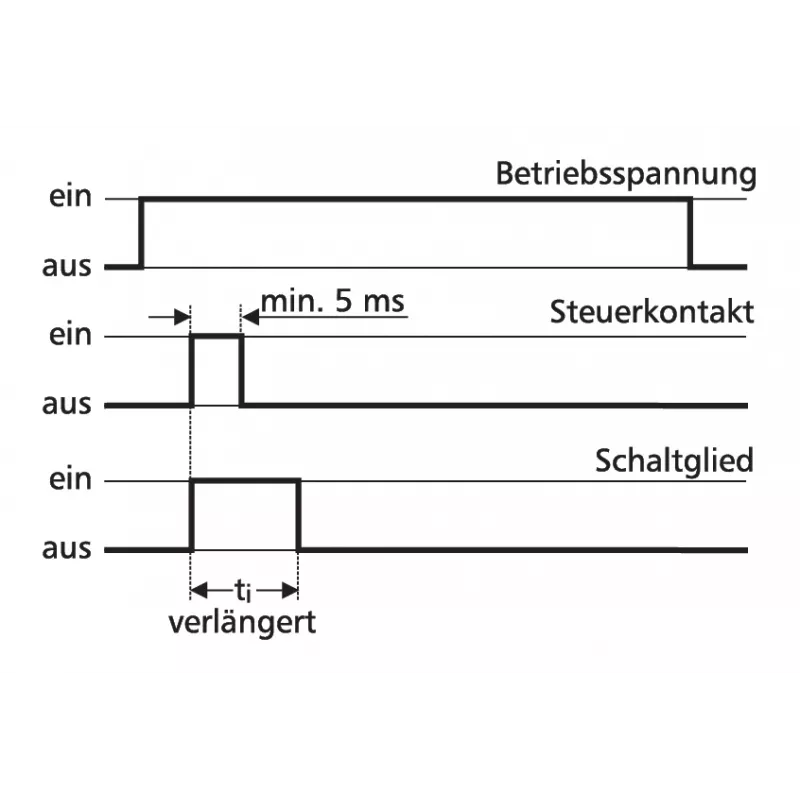

• Multi-function: 7 selectable timing functions (e.g., ON-delay, OFF-delay, flasher, pulse)
• Wide time range: 0.05 s to 100 h, adjustable in 7 ranges
• Output: 1 changeover contact (SPDT), max 8 A / 250 V AC
• Supply voltage: 24 V AC/DC, power consumption 2 W
• Mounting: DIN rail (EN 60715), width 17.5 mm (1 TE)
• Connection: screw terminals
• Protection: IP20 housing, IP40 front
• Operating temperature: -25°C to +55°C

Specifications

• Product type: Multi-function timing relay
• Supply voltage: 24 V AC/DC
• Power consumption: 2 W
• Output contact: 1 changeover (SPDT)
• Max switching current: 8 A
• Max switching voltage: 250 V AC
• Time range: 0.05 s - 100 h (7 ranges)
• Number of functions: 7
• Mounting: DIN rail (EN 60715)
• Connection: screw terminals
• Width: 17.5 mm (1 TE)
• Protection class housing: IP20
• Protection class front: IP40
• Operating temperature: -25°C to +55°C
• Storage temperature: -40°C to +70°C
• Insulation voltage: 2.5 kV (input/output)
• Electrical life: 10^5 cycles at rated load
• Mechanical life: 10^7 cycles

Tips

When configuring the relay, select the function and time range using the front dials before applying power. Ensure the load does not exceed the rated switching current and voltage. For inductive loads, consider using a snubber or varistor to extend contact life.
