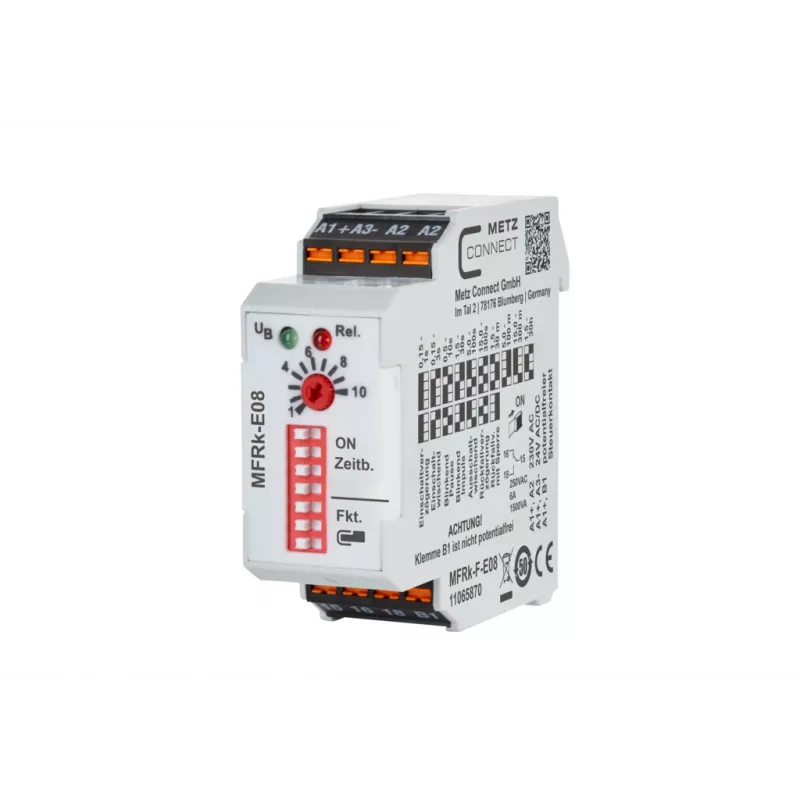

METZ Connect 11065870 Relé temporizador multifunción 230 V AC, 1 contacto conmutado, 8 funciones, carril DIN

Multifunctional time relay with 8 selectable functions and a wide time range from 0.05 seconds to 100 hours, designed for DIN rail mounting. The relay operates on 230 V AC and provides one potential-free changeover contact for switching loads up to 8 A.

Advantages

Flexible timing functions cover a broad range of automation and control tasks. The compact 17.5 mm housing saves space in distribution boards. LED indicators show power and relay status at a glance.

Suitable for

• Staircase lighting timers
• Pulse generators
• Delayed start/stop control
• Ventilation and pump control

Key specifications

• Operating voltage: 230 V AC
• Contact configuration: 1 changeover (SPDT)
• Max. switching current: 8 A (AC1)

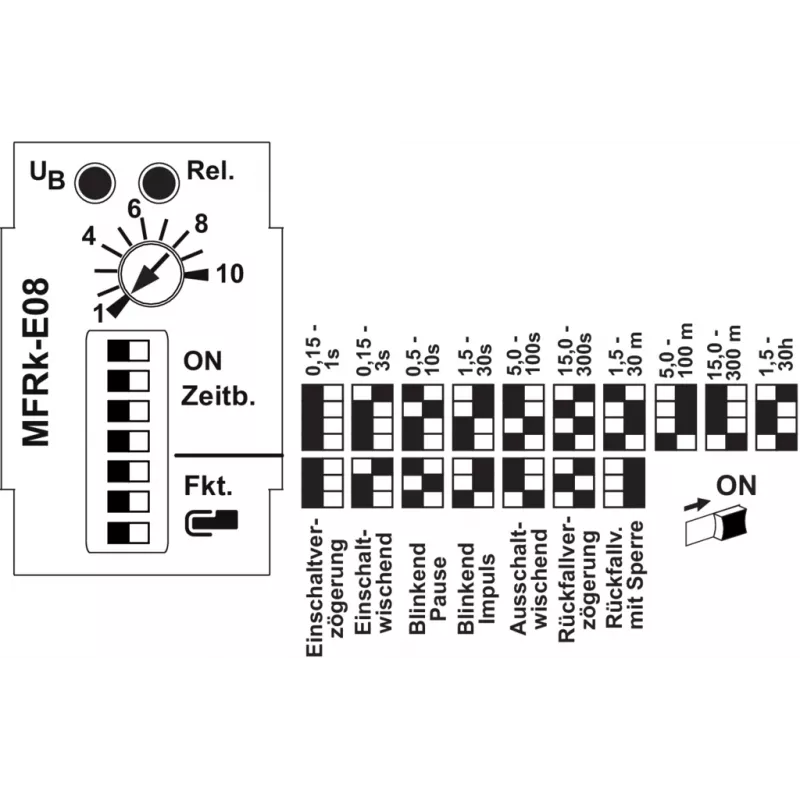

• Time functions: 8
• Time range: 0.05 s – 100 h
• Mounting: DIN rail
• Connection: screw terminals
• Housing width: 17.5 mm (1 module)

Recommendations

For reliable timing control in industrial and building automation, this relay offers a proven solution with easy installation and clear status indication.
