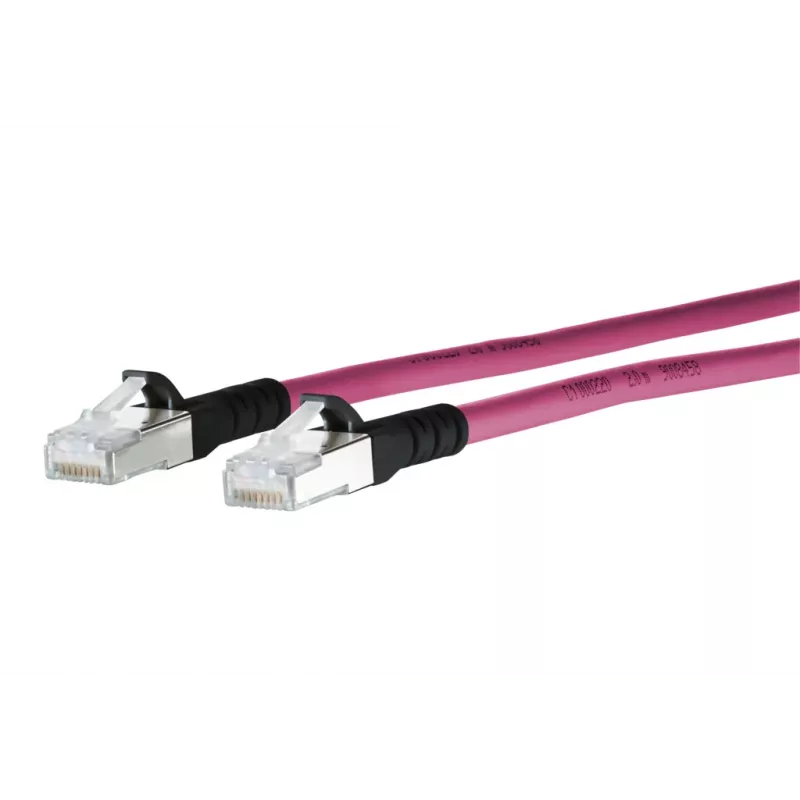

METZ CONNECT 1308453002-E cable de red Cat6a SF/UTP 3 m magenta

The METZ CONNECT 1308453002-E is a high-performance Cat6a network patch cable designed for demanding data center and enterprise network environments. With a length of 3 meters and a vibrant magenta jacket, this cable delivers reliable 10 Gigabit Ethernet connectivity while maintaining excellent signal integrity.

Advantages

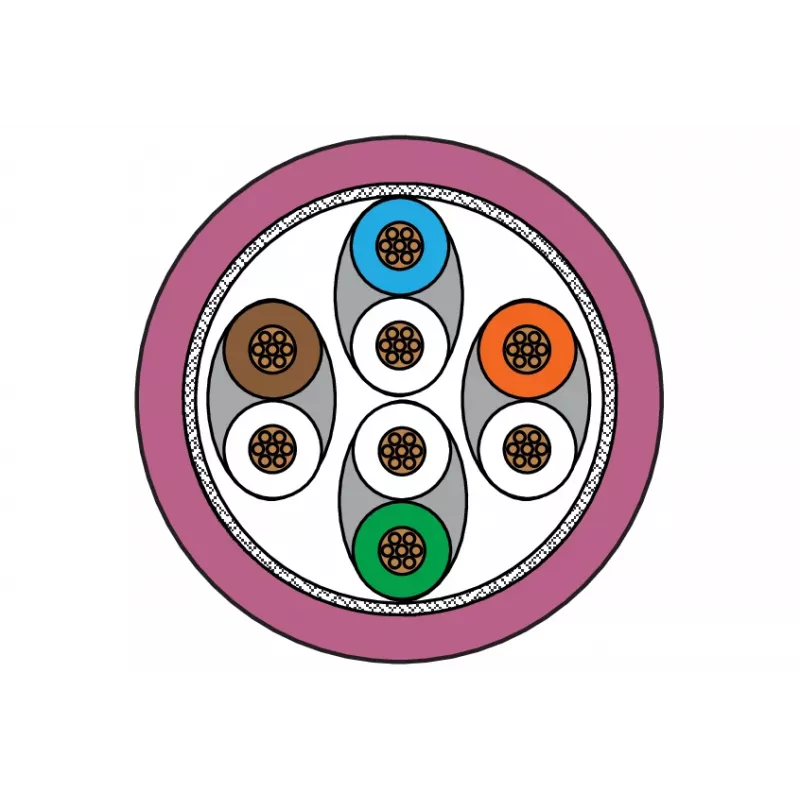

This cable offers superior shielding with S/FTP construction (overall braid and individual foil screens per pair), ensuring minimal crosstalk and electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces. It supports PoE++ (Type 4) for powering devices like IP cameras and access points.

Suitable for

• High-speed network connections in data centers
• Office networks requiring 10GBASE-T performance
• Industrial Ethernet applications
• Power over Ethernet installations up to 100W

Key specifications

• Cable type: Network Patch Cable
• Category: Cat6a (Class EA)
• Length: 3 m
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Connector: RJ45 male to male
• Data transfer rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper (stranded)
• Jacket material: LSZH
• PoE support: PoE++ (Type 4)
• Wiring scheme: TIA/EIA 568B
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, pair this cable with Cat6a compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
