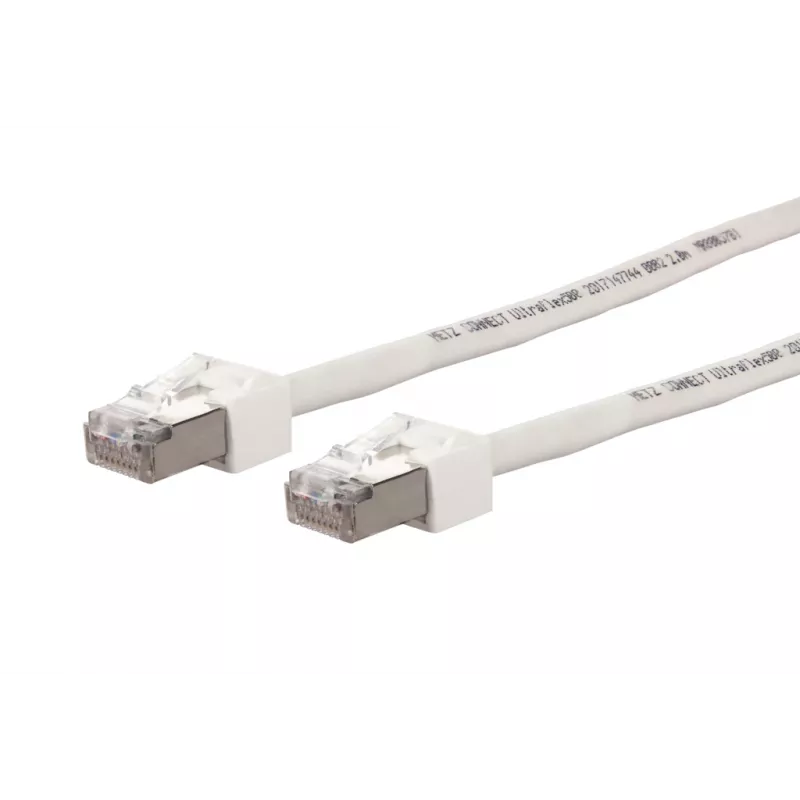

METZ CONNECT 13084U1588-E cable de conexión Ultraflex500 RJ45 Cat.6 VoIP AWG26 S/FTP blanco 1,5 m

The METZ CONNECT 13084U1588-E Ultraflex500 RJ45 patch cable is a high-performance network cable designed for VoIP and data applications. With Cat.6 performance and S/FTP shielding, it ensures reliable, interference-free connections in demanding environments.

Advantages

Ultraflex500 series offers exceptional flexibility and durability, making it ideal for tight spaces and frequent handling. The S/FTP shielding provides excellent protection against electromagnetic interference, ensuring stable data transmission. Gold-plated contacts guarantee optimal conductivity and corrosion resistance.

Suitable for

• VoIP phones and IP communication systems
• Data networks requiring Cat.6 performance
• Patch panel to device connections in server rooms and offices
• Power over Ethernet (PoE) applications

Key specifications

• Cable type: Patch cable
• Category: Cat.6
• Length: 1.5 m
• Colour: White
• Shielding: S/FTP (braid + foil)
• Conductor gauge: AWG26
• Conductor material: Copper
• Cable construction: Stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector type: RJ45 (8P8C) both ends
• Connector plating: Gold (50µm)
• Wiring standard: TIA/EIA 568B
• Frequency bandwidth: Up to 250 MHz
• Application: Ethernet, VoIP, Data Networks
• PoE support: Yes
• Flame retardancy: IEC 60332-1-2
• Halogen free: Yes
• Minimum bend radius: 20 mm
• Operating temperature: -20°C to +60°C

Recommendations

For optimal performance, use with Cat.6 compatible devices and avoid sharp bends. This cable is suitable for fixed installations and patching applications where reliability is critical.
