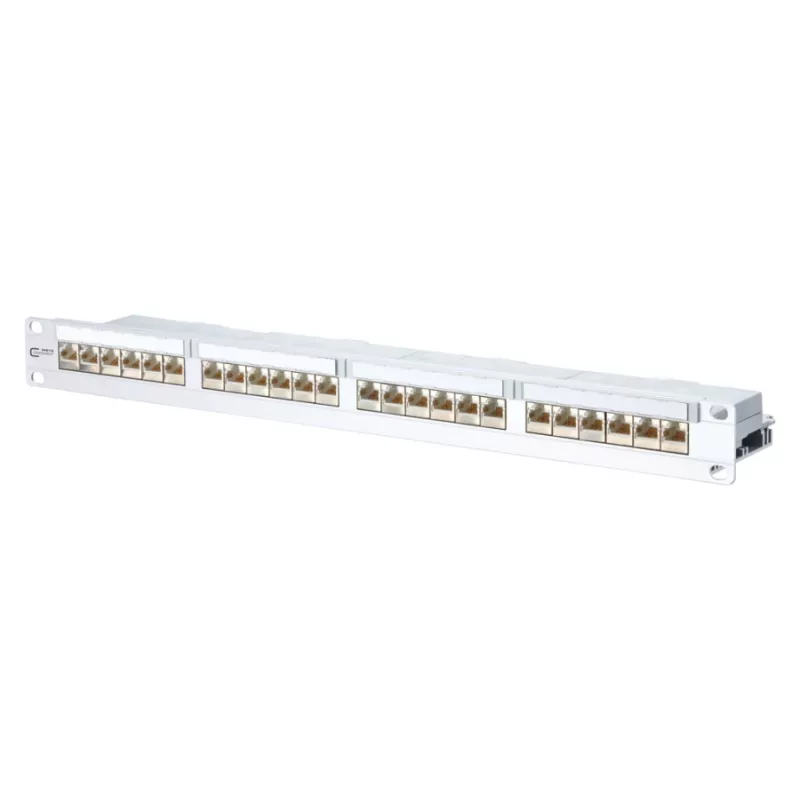

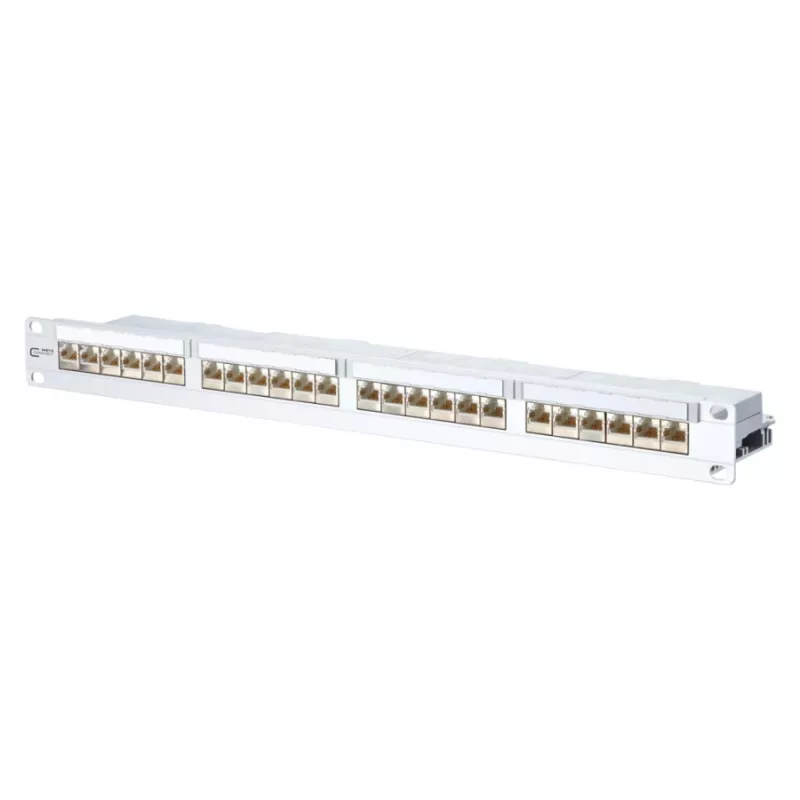

METZ CONNECT 130856-E-90 Panel de conexiones 24 puertos Cat.6A apantallado, 1U, blanco

Structured cabling in 19-inch racks often suffers from messy terminations, poor shielding, and inconsistent performance. The METZ CONNECT 130856-E-90 patch panel solves this by providing a centralized, shielded 24-port Cat.6A termination point in a compact 1U form factor.

Who is it for

Network installers and IT administrators who need reliable, high-density copper patching in data centers, server rooms, or enterprise networks. It suits projects requiring 10GBASE-T over twisted pair with full PoE support.

Main features

• 24 RJ45 ports, shielded, Cat.6A performance up to 500 MHz
• 1U 19-inch rack mount, white (RAL 9010) powder-coated steel housing
• LSA (IDC) termination, rear cable entry with cable ties included
• Central grounding connection for shield integrity
• Labeling fields with transparent covers for port identification
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)

Specifications

• Product type: Patch panel
• Rack units: 1U
• Number of ports: 24
• Connector type: RJ45
• Performance category: Cat.6A (ISO/IEC 11801, EN 50173-1)
• Shielding: Shielded (STP/FTP)
• Mounting: 19-inch rack mount
• Colour: White (RAL 9010)
• Termination method: LSA (IDC)
• Housing material: Sheet steel, powder-coated
• Transmission frequency: Up to 500 MHz
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Grounding: Central grounding connection
• Cable management: Rear cable entry, cable ties included
• Labeling: Labeling fields with transparent covers
• Standard compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2
• Operating temperature: -20 °C to +70 °C

Tips

Use shielded Cat.6A cables and properly ground the panel to maintain performance and protect against interference. For high-density installations, consider cable management bars to keep the rear tidy.
