Panel de parcheo modular DIGITUS, apantallado 24 puertos, sin equipar, 1U, montaje en rack, color negro campos de rotulación transparentes

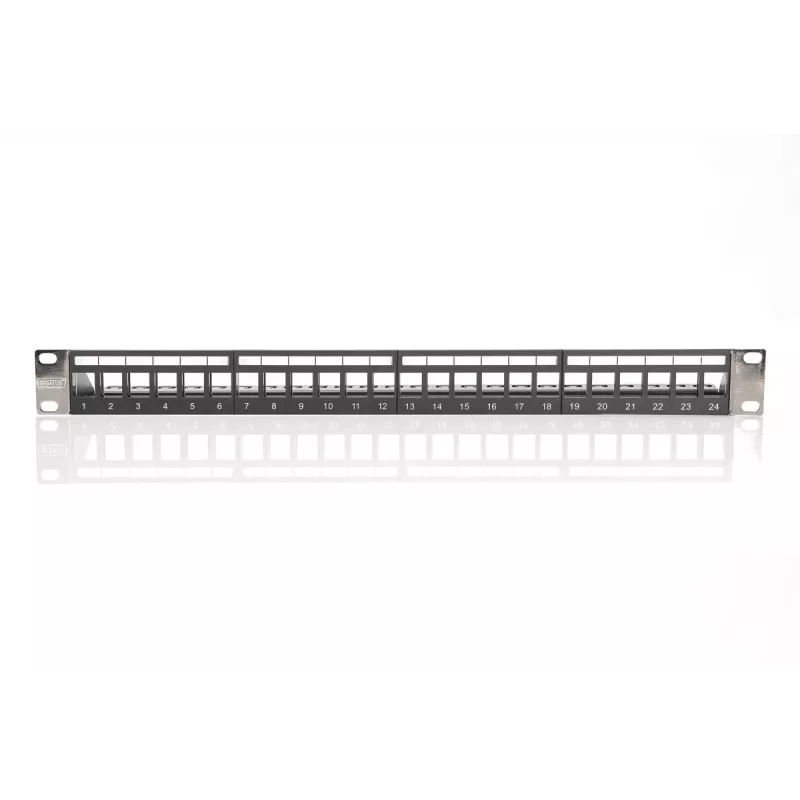

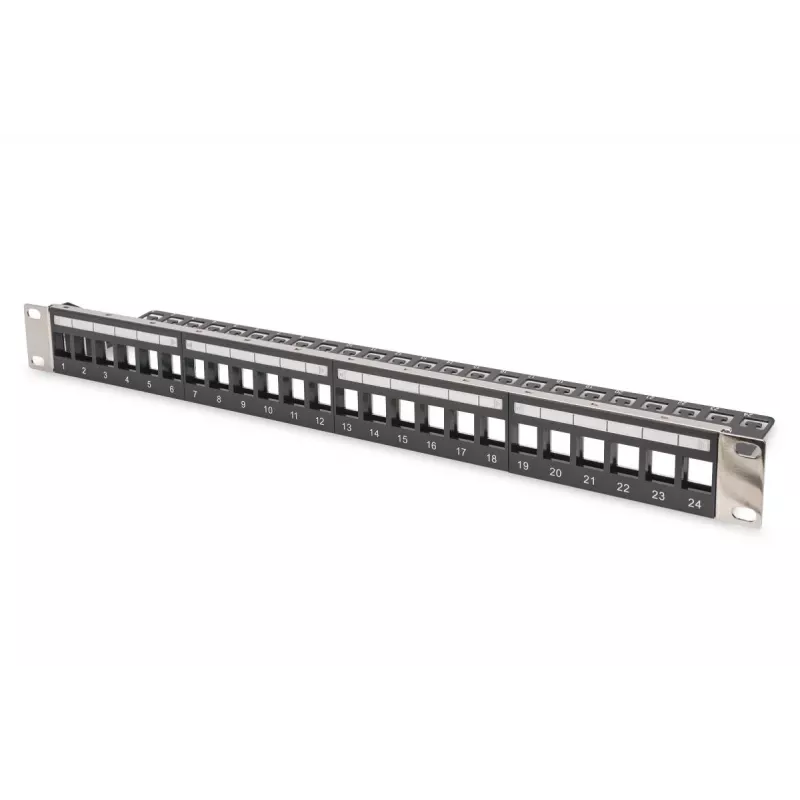

Modular Patch Panel for Keystone Jack Digitus DN-91411-LF is a 1U 19" rack-mount panel designed to accept up to 24 keystone jacks for structured network installations. The unloaded panel supports Cat5e, Cat6 and Cat6a cabling and combines a cold-rolled steel body with an ABS high-impact front for durability. A removable rear cable management tray with dedicated cable tie positions and a supplied earthing kit simplify installation and grounding. The product is finished in black (RAL 9005) and is intended for professional data center and network rack use.

Advantages

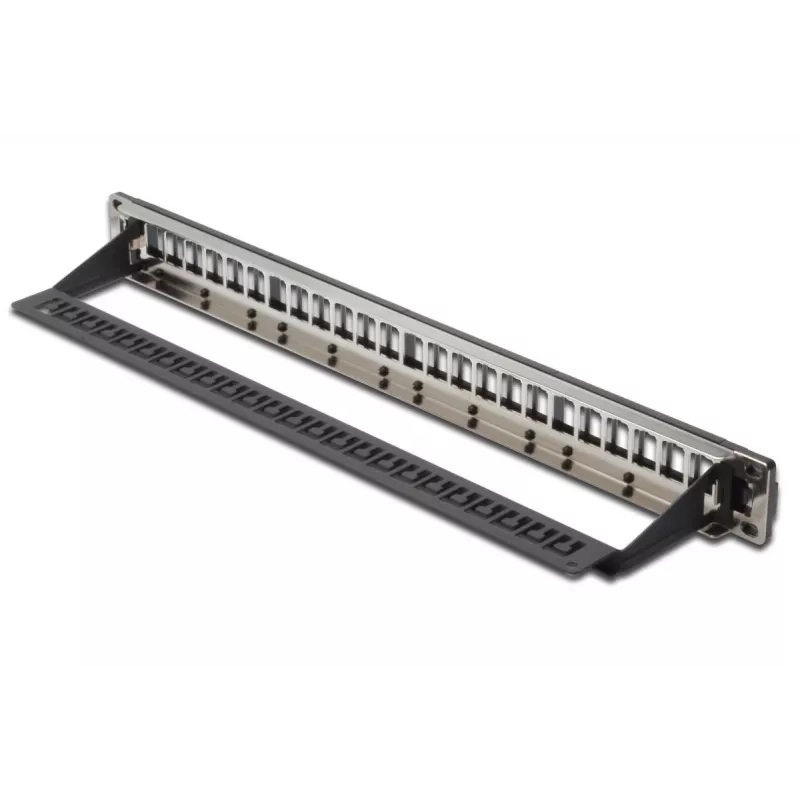

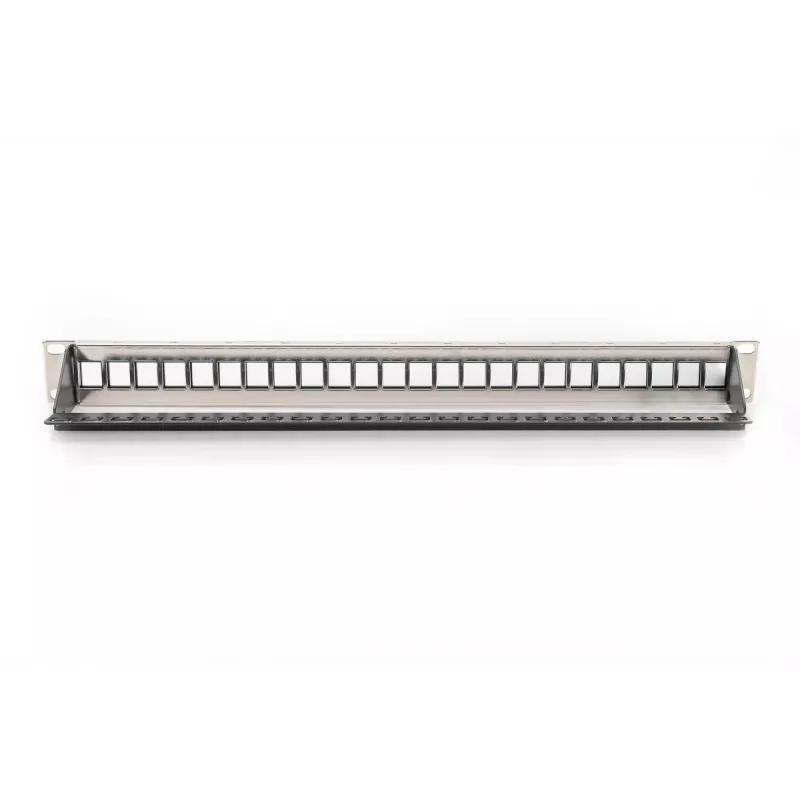

The panel’s SPCC cold-rolled steel construction (1.55 mm) provides mechanical strength and rack stability while the ABS front in UL-94V-0 quality resists impact. The unloaded design allows full customization with compatible keystone jacks to match different connector types and categories. Integrated rear cable management with snap-in tray and predefined cable tie positions ensures tidier cable routing. An earthing kit is included to meet grounding requirements.

Suitable for (tasks / use cases)

• Organising and terminating horizontal network cabling in 19" racks
• Deployments using Cat5e, Cat6 or Cat6a keystone jacks
• Data centres, server rooms and telecom cabinets
• Customised patching panels where connector types vary

Key specifications

• Brand: DIGITUS
• Model: DN-91411-LF
• Form factor: 1U, 19" rack mount
• Ports quantity: 24 (keystone, unloaded)
• Supported cable categories: Cat5e, Cat6, Cat6a
• Material: SPCC cold-rolled steel body (1.55 mm), ABS front (UL-94V-0)
• Colour: Black (RAL 9005)
• Includes: Rear snap-in cable management tray, earthing kit
• Origin: China

How to use

Mount the panel in a standard 19" rack using the 1U space. Install compatible keystone jacks into the front openings according to the desired connector type and category. Route horizontal cables to the rear, secure them in the snap-in cable management tray at the predefined cable tie positions, and terminate to the keystone jacks following standard wiring schemes. Attach the supplied earthing kit to the panel and the rack to ensure proper grounding.

Recommendations

For best performance, use keystone jacks rated for the intended cable category (Cat5e/Cat6/Cat6a), maintain proper bend radius on cables, and follow industry wiring standards (TIA/EIA) when terminating and testing the connections.
