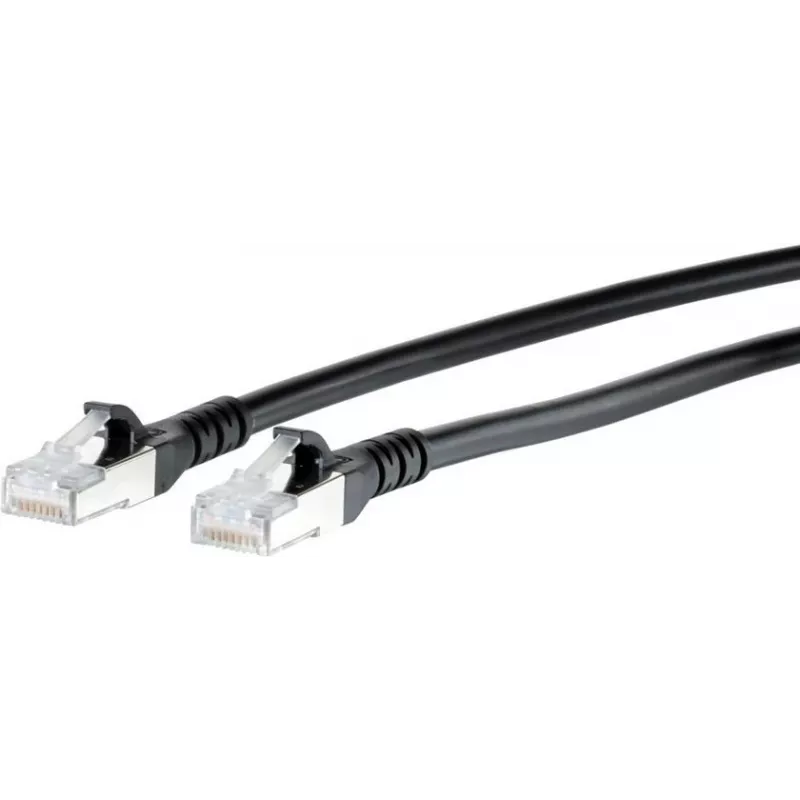

METZ CONNECT BTR 1308457500-E Cable de conexión RJ45 Cat.6A AWG26 S/FTP LSOH 7,5 m negro

The METZ CONNECT BTR 1308457500-E Patch Cable is a high-performance RJ45 network cable designed for demanding data center and enterprise network environments. With Cat.6A certification, it supports 10 Gigabit Ethernet (10GBASE-T) over the full 7.5-meter length, ensuring reliable high-speed data transmission. The S/FTP shielding (screened and foiled twisted pair) provides excellent protection against electromagnetic interference (EMI), making it ideal for installations near power lines or in industrial settings. The cable features AWG26 stranded copper conductors for flexibility and durability, and a low smoke zero halogen (LSOH) jacket that minimizes toxic fumes in case of fire, complying with strict safety standards. It is fully backward compatible with Cat.6, Cat.5e, and Cat.5 networks.

Advantages

This patch cable offers several key benefits: it supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for powering devices like IP cameras and wireless access points; the LSOH jacket ensures safety in enclosed spaces; and the robust S/FTP shielding guarantees error-free data transfer even in electrically noisy environments. The cable is also halogen-free and flame retardant (IEC 60332-1-2), meeting modern building and environmental standards.

Suitable for

• Data centers and server rooms requiring high-speed 10G connections
• Enterprise networks with high EMI environments
• Power over Ethernet (PoE) applications for IP cameras, VoIP phones, and access points
• Installations where safety and low smoke emission are critical (e.g., schools, hospitals, public buildings)

Key specifications

• Cable Type: Patch Cable
• Connector Type: RJ45 Male to RJ45 Male
• Cable Category: Cat.6A (Class EA)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Gauge: AWG26
• Conductor Construction: Stranded
• Cable Length: 7.5 m
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Color: Black
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Wiring Standard: TIA/EIA 568B (Straight-through)
• Conductor Material: Copper
• Halogen Free: Yes
• Flame Retardant: Yes (IEC 60332-1-2)
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)

Recommendations

For optimal performance, use this cable with Cat.6A compatible switches and network interfaces. Ensure proper cable management to avoid kinking or sharp bends. This cable is an excellent choice for new installations or upgrades to 10G networks.
