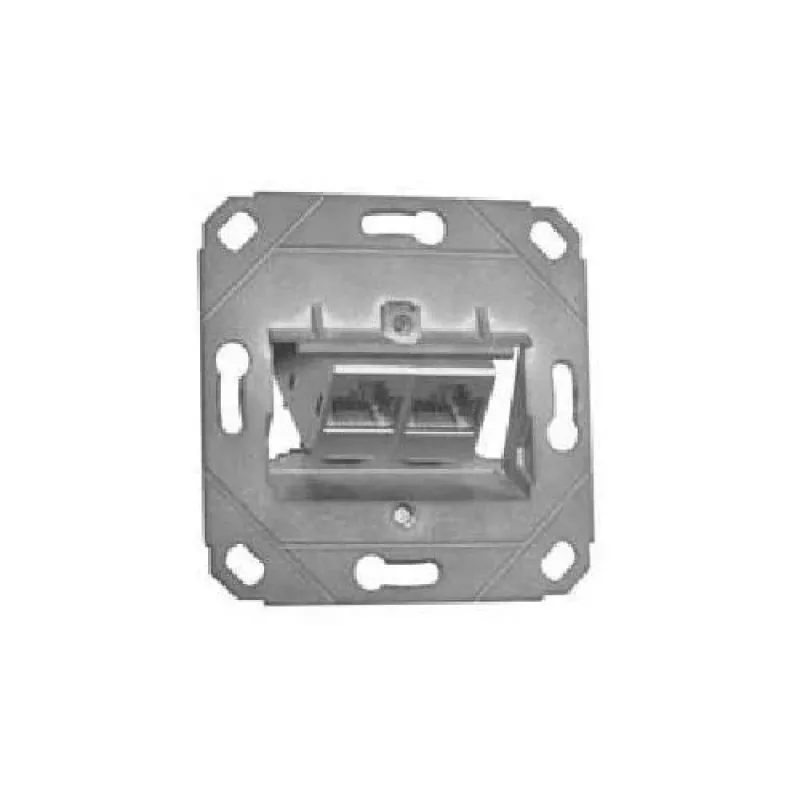

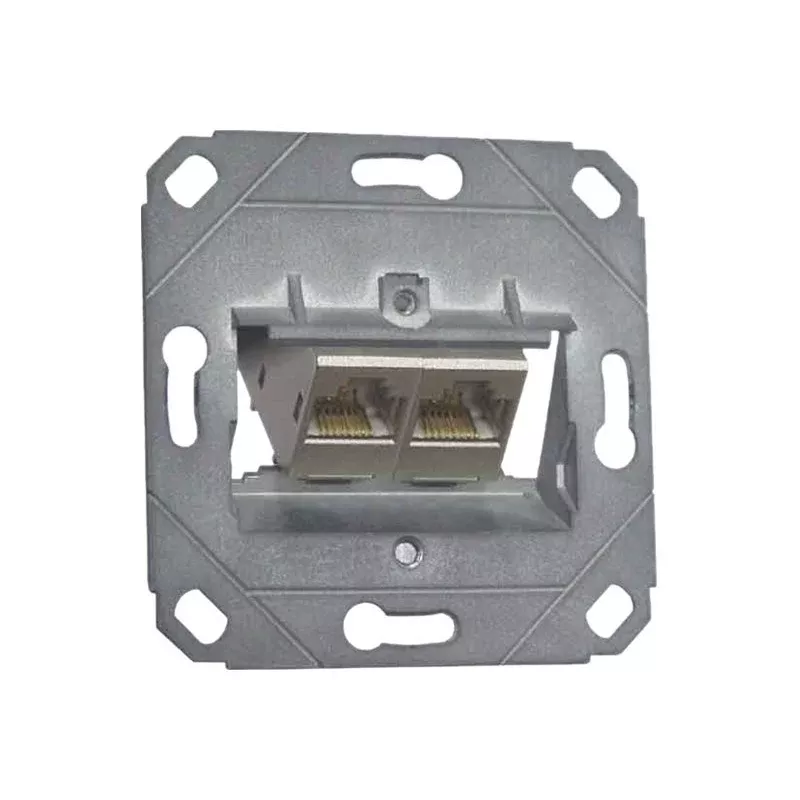

METZ CONNECT BTR E-DAT modul 8/8(8) UP0 Caja de conexión empotrable, Cat.6, 2x RJ-45, apantallada, protección antipolvo 1309121200-E-90

This flush-mounted junction box provides two shielded RJ-45 ports for structured cabling systems, supporting Gigabit Ethernet and PoE+ applications. Its tool-free module installation and dust protection shutters ensure reliable, long-term performance in wall installations.

Advantages

The E-DAT modul 8/8(8) UP0 offers a compact, flush-mounted design with integrated dust protection, making it ideal for offices and residential buildings. The shielded metal housing and gold-plated contacts guarantee stable data transmission up to 250 MHz, while the LSA-Plus IDC terminals enable fast, secure wire termination without special tools.

Suitable for

• Structured cabling systems in commercial and residential environments
• Gigabit Ethernet networks requiring reliable, shielded connections
• Installations where PoE+ devices such as IP cameras or access points are used
• Wall-mounting applications with limited space

Key specifications

• Connector type: 2x RJ-45, 8P8C
• Cabling category: Cat.6 (up to 250 MHz)
• Shielding: Shielded
• Mounting type: Flush-mounted (Unterputz)
• Termination: LSA-Plus IDC, TIA/EIA-568A/B color coded
• Contact material: Gold-plated phosphor bronze
• PoE support: PoE+ (IEEE 802.3at)
• Housing material: Plastic with metal shielding components

Recommendations

For best performance, use with Cat.6 or higher shielded cables and ensure proper grounding of the shielding. The dust protection shutters keep contacts clean when ports are unused.
