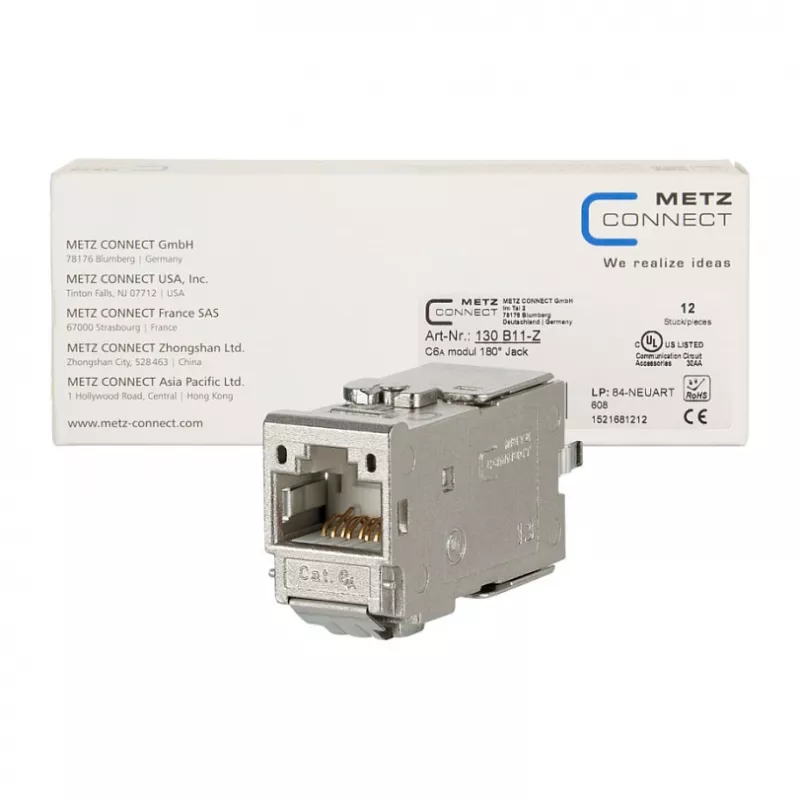

METZ CONNECT C6Amodul módulo keystone RJ45 180° Cat.6A STP (pack de 12) - metálico

The METZ CONNECT C6Amodul 180° is a high-performance, shielded RJ45 keystone module designed for Category 6A (Class EA) applications. This modular input module features a 180° cable entry angle, making it ideal for straight-through installations in patch panels and faceplates. The pack includes 12 modules, perfect for structured cabling projects in data centers, enterprise networks, and industrial environments.

Advantages

Tool-less termination simplifies installation, saving time and reducing the risk of errors. The die-cast zinc housing provides robust shielding and durability, while gold-plated contacts ensure reliable connectivity over thousands of insertion cycles. Supports Power over Ethernet (PoE, PoE+, 4PPoE) for powering devices like IP cameras and wireless access points.

Suitable for

• Structured cabling systems requiring Cat.6A performance
• Data center and server room installations
• Enterprise network infrastructure
• Industrial Ethernet applications
• PoE device connectivity

Key specifications

• Product Type: RJ45 Keystone Module
• Performance Category: Cat.6A (Class EA)
• Shielding: STP (Shielded Twisted Pair)
• Cable Entry Angle: 180° (Straight)
• Termination Type: IDC, Tool-less
• Wire Gauge: AWG 24/1 - 22/1 (solid), AWG 26/7 - 22/7 (stranded)
• Housing Material: Die-cast zinc
• Contact Plating: Gold (min. 0.8 µm)
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3at/af/bt)
• Frequency Range: Up to 500 MHz
• Mounting Standard: Keystone compatible
• Operating Temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51
• Pack Quantity: 12 modules
• Colour: Metallic

Recommendations

For optimal performance, use with Cat.6A shielded cabling and ensure proper grounding. Suitable for use with METZ CONNECT patch panels and faceplates.
