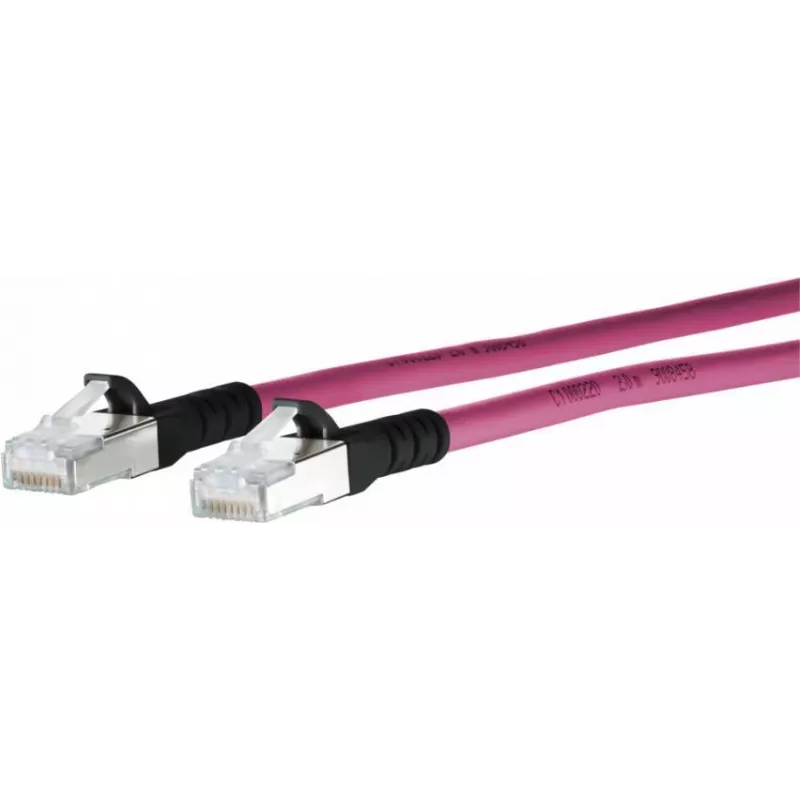

METZ CONNECT cable de conexión Cat.6A S/FTP 2 m violeta

The METZ CONNECT 1308452002-E patch cable is a high-performance Cat.6A S/FTP (PiMF) network cable designed for demanding 10 Gigabit Ethernet applications. With a length of 2 meters and a vibrant violet color, this cable ensures reliable, high-speed data transmission in professional environments.

Advantages

This patch cable offers exceptional shielding against electromagnetic interference thanks to its S/FTP construction (pair in metal foil plus overall braid). The AWG26 stranded copper conductors provide flexibility while maintaining signal integrity. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, making it suitable for public and commercial buildings.

Suitable for

• 10GBASE-T networks requiring Cat.6A performance
• Data centers, server rooms, and office LANs
• PoE, PoE+, and 4PPoE applications (IEEE 802.3af/at/bt)
• High-frequency data transmission up to 500 MHz

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 2.0 m
• Color: Violet
• Wire Gauge: AWG26
• Conductor Material: Copper (Cu)
• Jacket Material: LSZH
• Connector Type: RJ45 (8P8C) both ends
• Connector Plating: Gold (50µm)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Application: 10 Gigabit Ethernet (10GBASE-T)
• Flammability Rating: IEC 60332-1-2
• Operating Temperature: -20°C to +60°C
• PoE Support: PoE, PoE+, 4PPoE
• Outer Diameter: Approx. 6.2 mm
• Number of Pairs: 4
• Conductor Construction: Stranded

Recommendations

For optimal performance, use this cable with Cat.6A compatible switches and network devices. Ensure proper cable management to avoid kinking or sharp bends.
