METZ CONNECT cable de conexión Industrial Ethernet M12, Cat.6A, 10m, verde

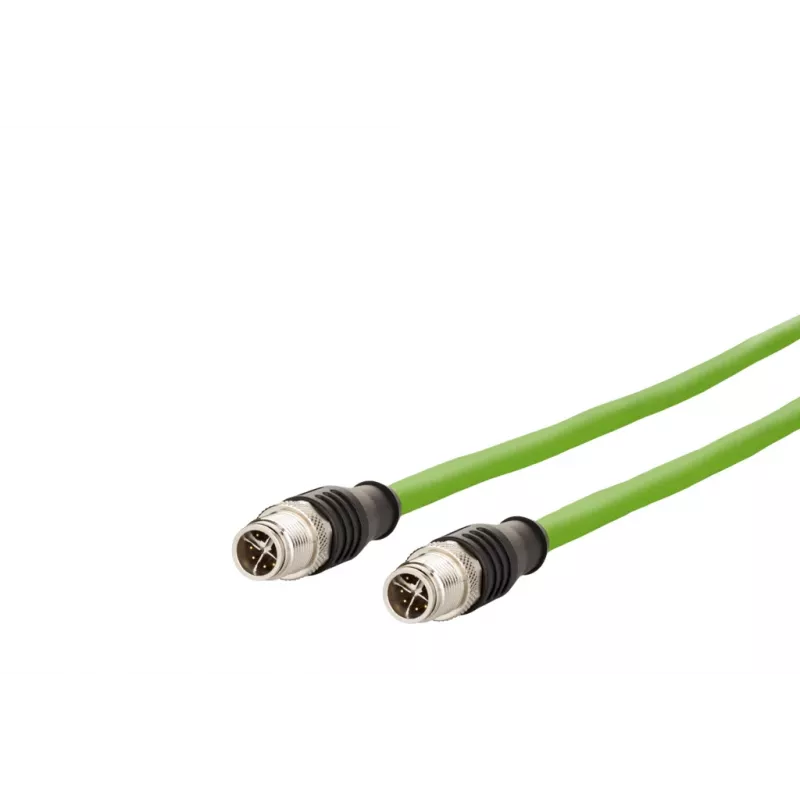

The METZ CONNECT M12 Industrial Ethernet Patch Cable is a high-performance, ruggedized connection solution designed for demanding industrial environments. This 10-meter cable features M12 male connectors on both ends with X-coding, ensuring reliable data transmission at speeds up to 10 Gigabit Ethernet. With its robust PUR jacket and IP67 protection, it is ideal for use in automation, machinery, and network infrastructure where durability and high-speed connectivity are critical.

Advantages

This cable offers exceptional shielding (S/FTP) to minimize electromagnetic interference, ensuring stable and fast data transfer. The halogen-free, flame-retardant materials enhance safety in industrial settings. Its flexible PUR jacket withstands harsh conditions, including extreme temperatures from -30°C to +80°C, making it suitable for outdoor and factory floor applications.

Suitable for

• Industrial Ethernet networks requiring Cat.6A performance
• Automation systems, robotics, and machine tools
• Outdoor or harsh environment installations
• Data centers and server rooms needing reliable patch connections

Key specifications

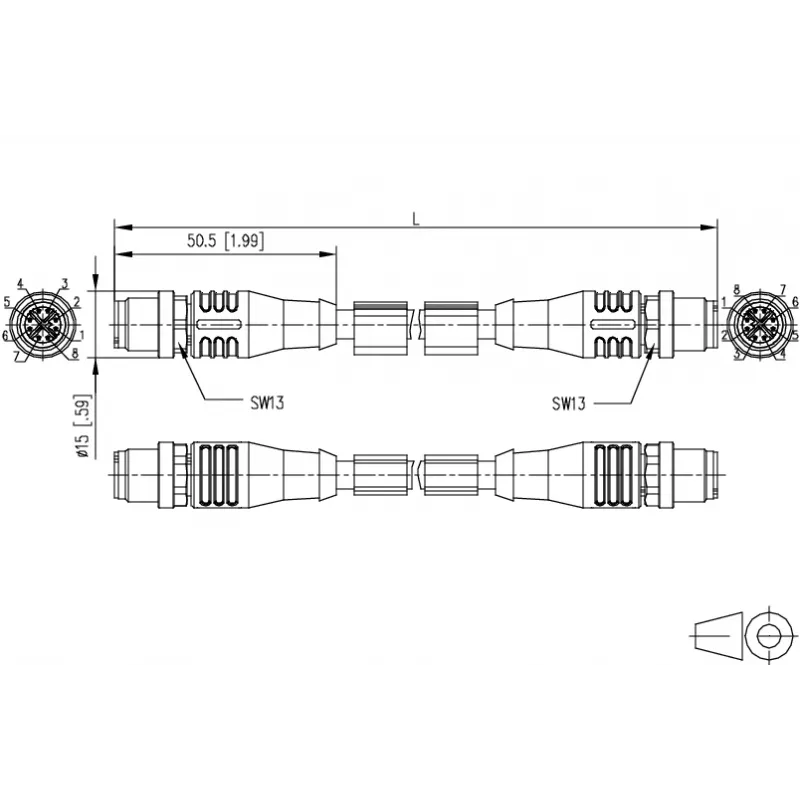

• Connector Type: M12 Male, X-coded (IEC 61076-2-109)

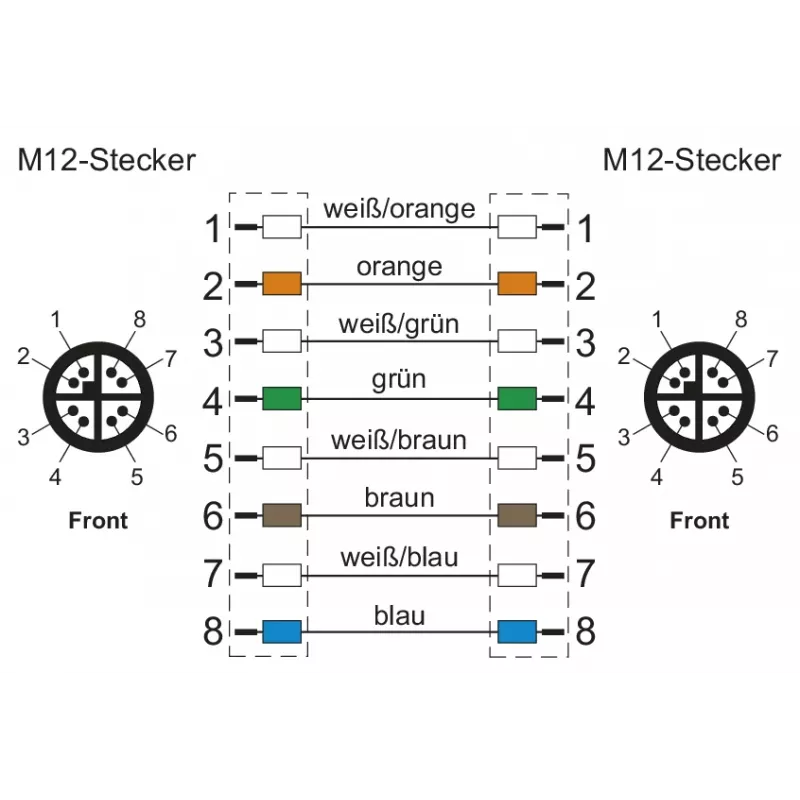

• Number of Pins: 8-pin
• Cable Category: Cat.6A (ISO/IEC 11801, EN 50173)

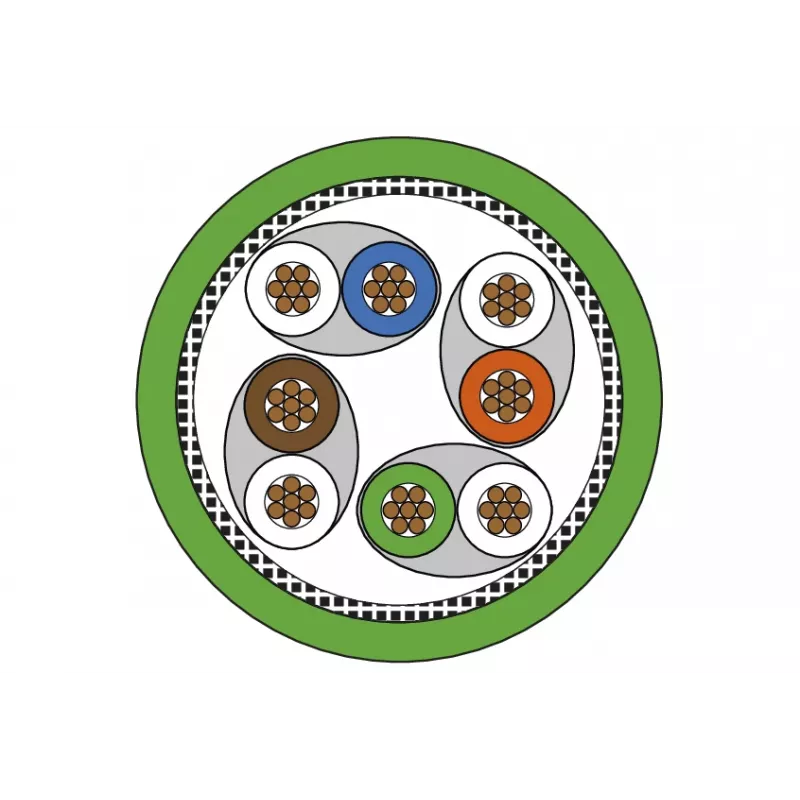

• Shielding: S/FTP (PiMF)
• Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Cable Length: 10 meters
• Jacket Material: PUR (Polyurethane)
• Jacket Color: Green
• Conductor Size: AWG 26/7
• Operating Temperature: -30°C to +80°C
• IP Protection: IP67 (when mated)
• Rated Voltage: 60 V DC
• Rated Current: 0.5 A
• Halogen-free: Yes
• Flame Retardancy: IEC 60332-1-2

Recommendations

For optimal performance, ensure connectors are properly mated to achieve IP67 protection. This cable is compatible with X-coded M12 ports and supports PoE+ applications. Pair with METZ CONNECT M12 bulkhead connectors or RJ45 adapters for flexible network integration.
