METZ CONNECT Cable de conexión M12 codificado X, SF/UTP CAT 6a, 2,0 m, verde, libre de halógenos, apto para cadenas portacables

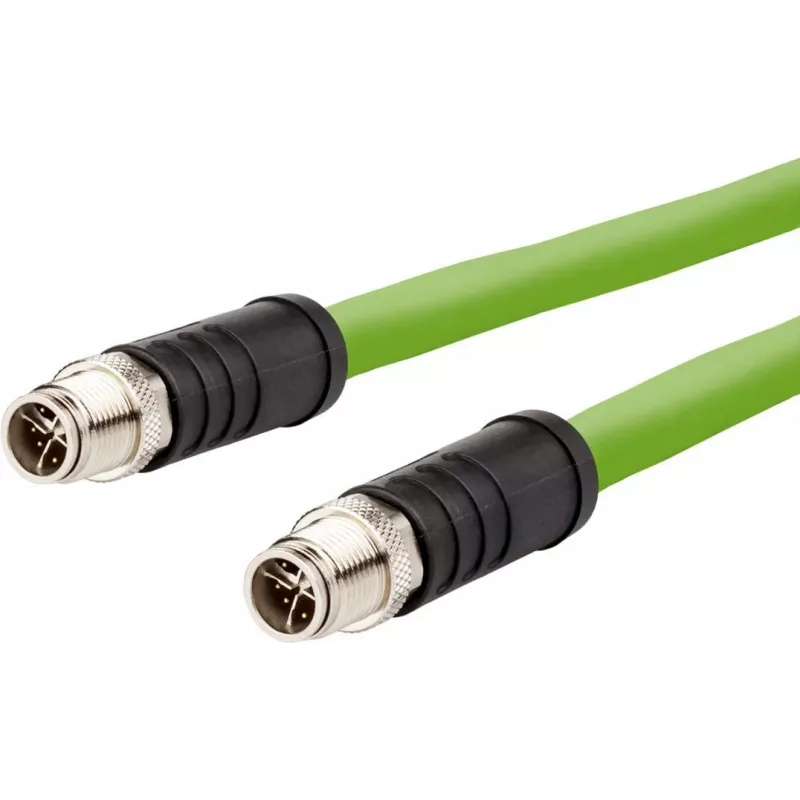

The METZ CONNECT 142M6X11020 is a high-performance industrial Ethernet patch cable designed for reliable data transmission in demanding environments. Featuring M12 X-coded connectors on both ends, this cable supports 10 Gigabit Ethernet over CAT 6a specifications. The SF/UTP shielding provides excellent protection against electromagnetic interference, while the halogen-free jacket ensures safety in enclosed spaces. With a length of 2.0 meters and a robust 7.8 mm outer diameter, this cable is ideal for connecting industrial devices such as switches, sensors, and actuators in automation networks.

Advantages

This cable offers superior signal integrity and durability for industrial applications. The X-coded M12 connectors ensure a secure, vibration-resistant connection, and the drag chain compatibility allows for continuous flexing in moving cable carriers. The halogen-free material reduces toxic smoke in case of fire, making it suitable for use in public buildings and transportation systems.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT, EtherNet/IP)
• Automation and control systems
• Robotics and moving machinery
• Data centers and server rooms requiring high-speed connections

Key specifications

• Cable Category: CAT 6a
• Data Transfer Rate: Up to 10 Gigabit Ethernet
• Connector Type: M12 X-coded (8-pin) to M12 X-coded (8-pin)
• Connector Orientation: Straight on both ends
• Cable Length: 2.0 m
• Shielding: SF/UTP (Screened Foiled / Unshielded Twisted Pair)
• Conductor Construction: Stranded
• Outer Diameter: 7.8 mm
• Jacket Material: Halogen-Free
• Color: Green
• Special Feature: Drag Chain Compatible
• Number of Conductors: 8 (4 pairs)

Recommendations

For optimal performance in industrial environments, pair this cable with compatible M12 X-coded connectors and ensure proper strain relief. Always verify the cable length and connector orientation to match your application requirements.
