METZ CONNECT cable de conexión OpDAT OS2 LC-D/2xST SM 2m amarillo I-V(ZN)H 9/125µm

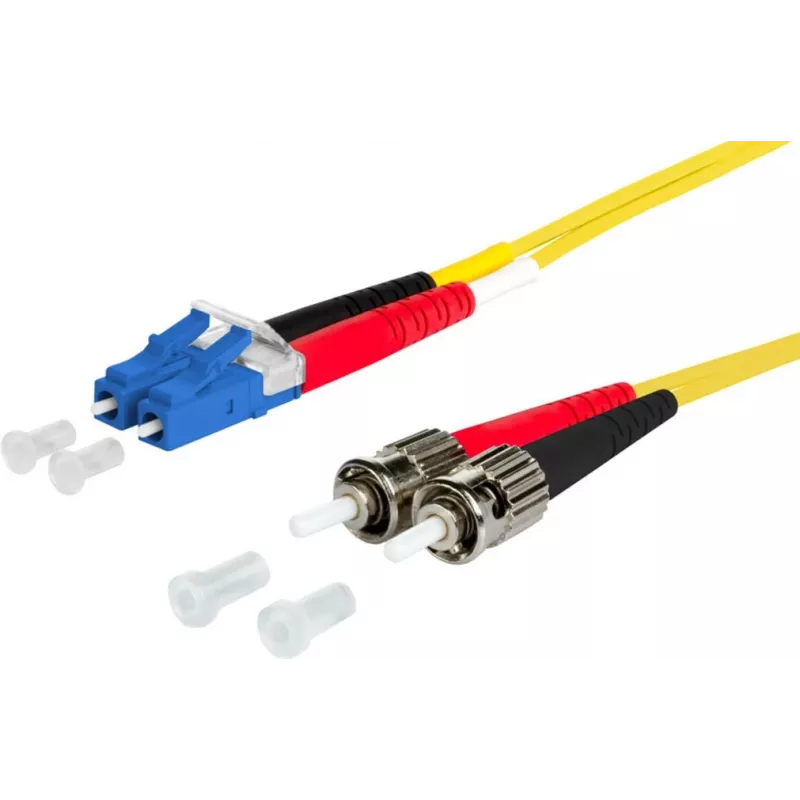

The METZ CONNECT OpDAT Patch Cable is a high-quality fiber optic patch cable designed for reliable single-mode transmission in indoor environments. With LC duplex to dual ST connectors, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications rooms, and structured cabling systems.

Advantages

• Premium single-mode performance with OS2 fiber class
• Halogen-free, flame-retardant jacket (I-V(ZN)H) for enhanced safety
• Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) for optimal signal integrity
• Durable duplex construction with color-coded yellow jacket for easy identification
• Compliant with RoHS and REACH standards

Suitable for

• Fiber optic network installations requiring single-mode connectivity
• Data centers and server rooms
• Telecommunications and broadband networks
• Indoor cabling infrastructure

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Single-Mode (SM)
• Fiber Class: OS2
• Connector A: LC Duplex
• Connector B: ST Simplex (2x)
• Cable Length: 2 meters
• Cable Color: Yellow
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: I-V(ZN)H (Halogen-free, flame-retardant)
• Number of Fibers: 2
• Application: Indoor
• Connector Polish: UPC
• Insertion Loss (max): 0.3 dB
• Return Loss (min): 50 dB
• Operating Temperature: -10°C to +60°C
• Cable Construction: Duplex
• Polarity: A-B (Crossed)
• Standards: RoHS, REACH, IEC 60794-2

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is suitable for use with OS1/OS2 single-mode transceivers and patch panels.
