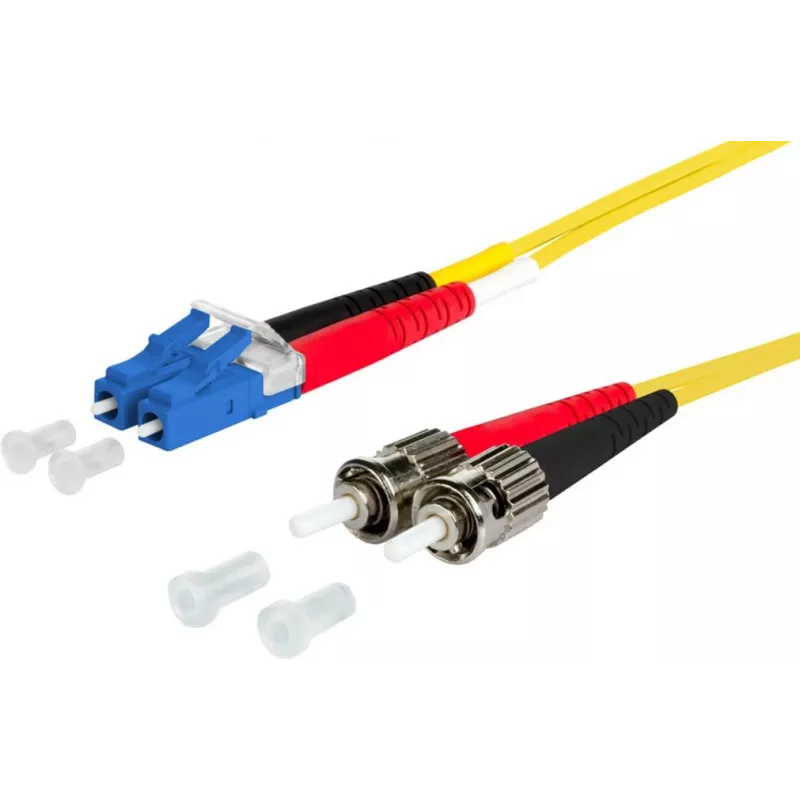

METZ CONNECT cable de conexión OpDAT OS2 LC dúplex a 2x ST monomodo 1m amarillo I-V(ZN)H

The METZ CONNECT OpDAT Patch Cable is a high-quality fiber optic patch cable designed for reliable singlemode connections in indoor environments. With a length of 1 meter and a yellow halogen-free jacket, this cable ensures optimal performance and safety. It features LC duplex to dual ST connectors, making it ideal for network installations requiring low insertion loss and high return loss.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The halogen-free, flame-retardant jacket (I-V(ZN)H) provides enhanced safety in case of fire. The cable is compliant with multiple international standards, ensuring reliability and durability.

Suitable for

• Data center and enterprise network cabling
• Telecommunications and broadband infrastructure
• Fiber-to-the-home (FTTH) and local area networks (LAN)
• Indoor singlemode fiber optic connections

Key specifications

• Fiber Mode: Singlemode (SM)
• Fiber Standard: OS2 (ITU-T G.657.A1 / G.652.D)
• Core/Cladding Diameter: 9/125 µm
• Connector A: LC Duplex
• Connector B: 2x ST Simplex
• Cable Length: 1 m
• Cable Color: Yellow
• Jacket Material: I-V(ZN)H (Halogen-free, flame-retardant)
• Number of Fibers: 2
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Connector Polish: UPC
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 30 mm
• Standards: IEC 60794-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-1/2
• RoHS and REACH compliant

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is suitable for use with standard LC and ST ports. Pair with METZ CONNECT patch panels and outlets for a complete solution.
