METZ CONNECT cable de conexión OpDAT SC-S/LC-S OS2 1,0 m 151P3EOJO10E

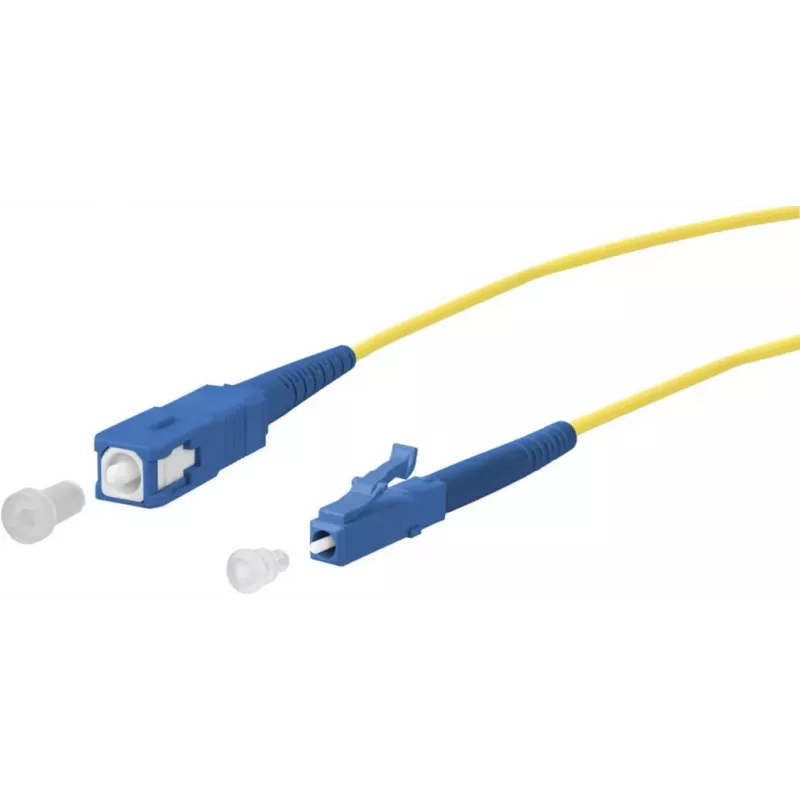

The METZ CONNECT OpDAT patch cable is a high-quality fiber optic connection solution designed for reliable data transmission in indoor environments. With SC-Simplex to LC-Simplex connectors and OS2 singlemode fiber, this 1.0 meter cable ensures low insertion loss and high return loss, making it ideal for data centers, LAN networks, and FTTx applications.

Advantages

This patch cable offers bend-insensitive fiber technology, allowing for flexible routing without compromising performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic fumes. Zirconia ceramic ferrules guarantee precise alignment and durability.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Fiber to the x (FTTx) deployments
• Indoor fiber optic connections

Key specifications

• Fiber type: Singlemode OS2 (G.657.A1/A2 compatible)
• Connector A: SC Simplex
• Connector B: LC Simplex
• Cable length: 1.0 meter
• Number of fibers: 1
• Cable construction: Simplex
• Jacket material: LSZH
• Jacket color: Yellow
• Cable diameter: 2.8 mm
• Insertion loss (max.): 0.3 dB per connector
• Return loss (min.): 50 dB (UPC)
• Ferrule material: Zirconia ceramic
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +70°C
• Standards: IEC 61753-1, IEC 61754, TIA/EIA-568-C.3, RoHS, REACH
• Polarity: A-B (Straight-through)
• Bend insensitive: Yes

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard SC and LC ports. Suitable for use with OS2 singlemode transceivers.
