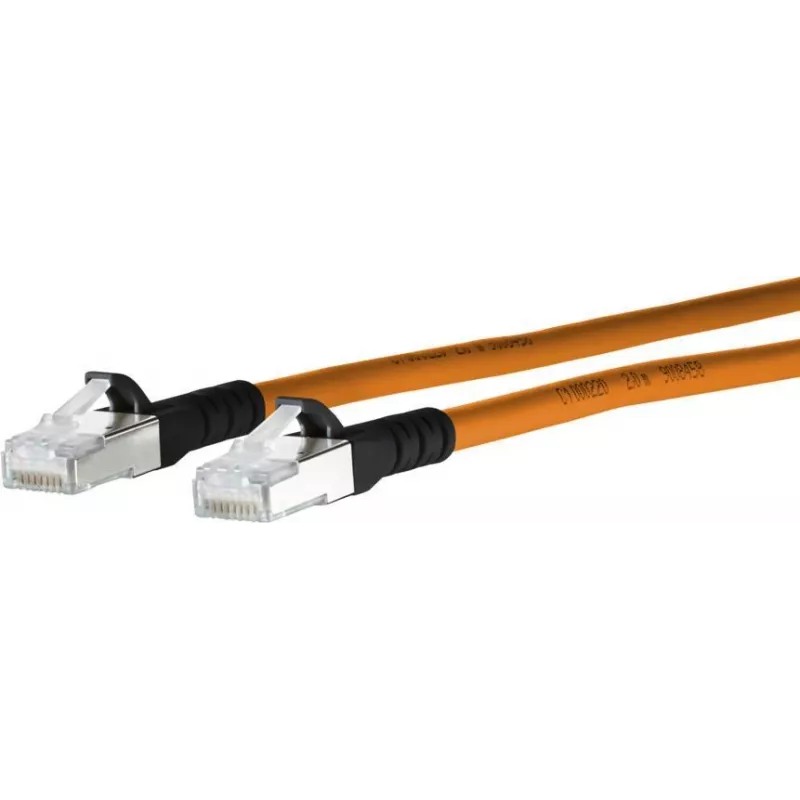

METZ CONNECT cable de conexión RJ45 Cat.6A 5 m S/FTP LSHF naranja 1308455001-E

The METZ CONNECT 1308455001-E is a high-performance Cat.6A patch cable designed for demanding network environments. With a length of 5 meters and S/FTP shielding, it ensures reliable 10 Gigabit Ethernet connectivity and minimal interference. The orange LSHF jacket is halogen-free and low smoke, making it ideal for use in public and commercial buildings where safety is paramount.

Advantages

This cable offers superior data transmission rates up to 10 Gbps and a bandwidth of 500 MHz, supporting the latest network standards. The S/FTP shielding (PiMF with overall braid) provides excellent protection against electromagnetic interference, ensuring stable and secure connections. Gold-plated contacts guarantee long-lasting performance and corrosion resistance.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where signal integrity is critical
• Installations in public areas where low smoke and halogen-free materials are required for safety
• PoE applications (IEEE 802.3af/at/bt) for powering devices like IP cameras and access points

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF, overall braid)
• Connector: RJ45 (8P8C) with gold-plated contacts
• Length: 5.0 m
• Color: Orange
• Jacket Material: LSHF (Low Smoke Halogen Free)
• Conductor: AWG 26/7 stranded bare copper
• Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Wiring Standard: TIA/EIA 568B
• PoE Support: Yes (IEEE 802.3af/at/bt)
• Flammability Rating: IEC 60332-1
• Operating Temperature: -20 °C to +60 °C
• Outer Diameter: Approx. 6.2 mm
• Halogen Free: Yes

Recommendations

For optimal performance, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
