METZ CONNECT Cable de red 5 polos M12-A (S) a extremo abierto 1 m sin blindaje libre de halógenos conductor flexible codificado A negro

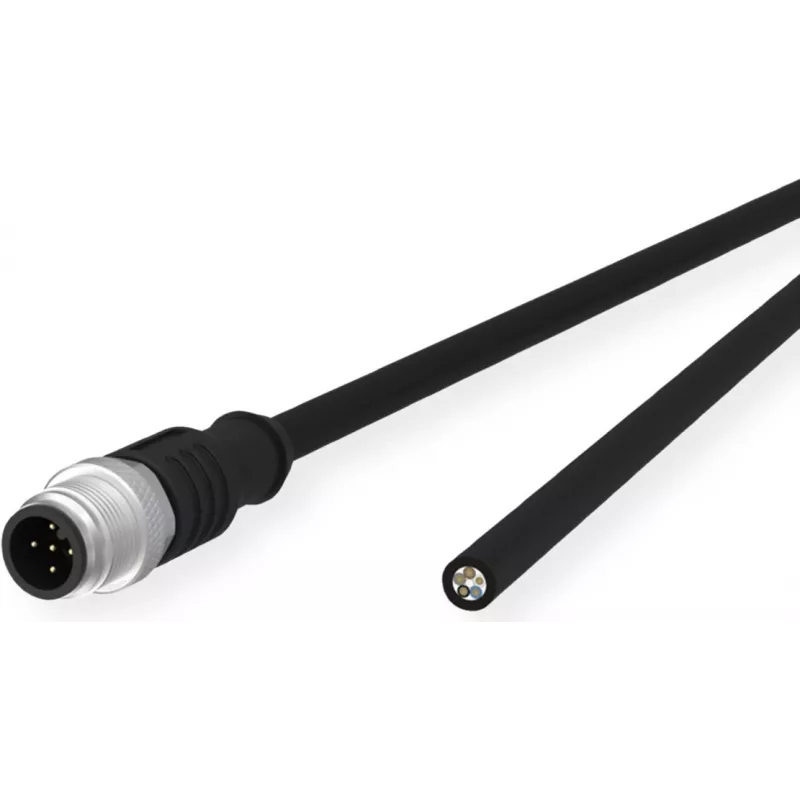

The METZ CONNECT 142MDA10010 is a high-quality industrial network cable designed for reliable data transmission in demanding environments. This 1-meter cable features a 5-pin M12-A male connector on one end and an unterminated (free end) on the other, making it ideal for custom installations and sensor/actuator wiring in industrial Ethernet applications.

Advantages

This cable offers exceptional flexibility and durability thanks to its stranded conductor construction and halogen-free jacket. The unshielded design (UTP) is suitable for short-distance connections where electromagnetic interference is minimal, ensuring cost-effective and easy installation. The A-coding ensures compatibility with standard M12-A interfaces.

Suitable for

• Industrial Ethernet networks
• Sensor and actuator wiring
• Custom cable assemblies
• Factory automation and control systems

Key specifications

• Cable Type: Network Cable
• Connector 1: M12-A, Male, 5-pin, A-coded
• Connector 2: Unterminated (Free End)
• Length: 1 m
• Cable Diameter: 5.2 mm
• Shielding: Unshielded (UTP)
• Jacket Material: Halogen-free
• Conductor Construction: Stranded
• Color: Black
• Number of Conductors: 5

Recommendations

For optimal performance, ensure the unterminated end is properly terminated with a compatible connector or wired according to your system's specifications. This cable is ideal for use with M12-A connectors in industrial settings where reliability and ease of installation are paramount.
