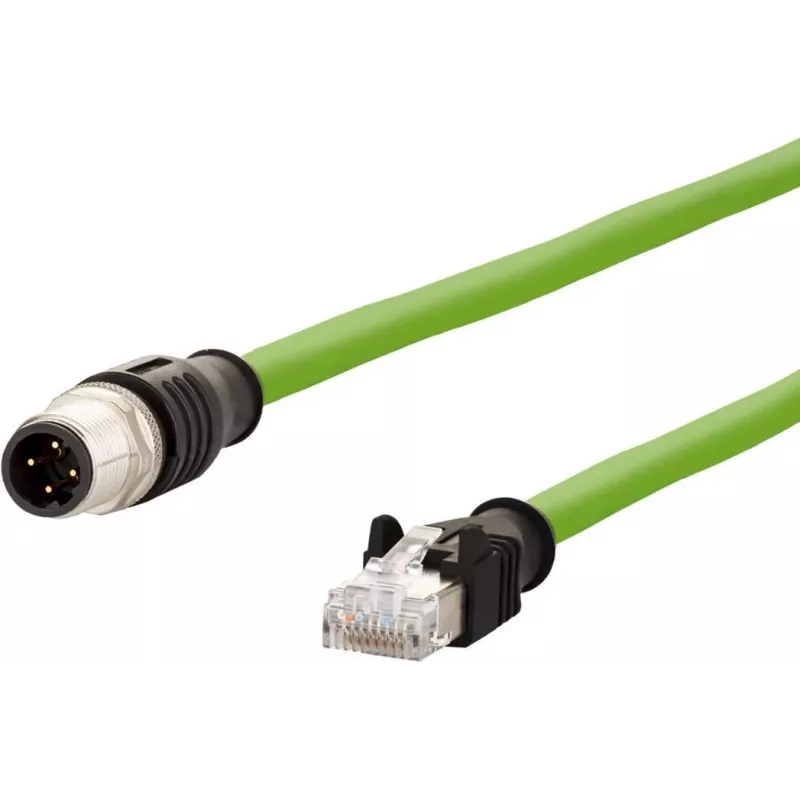

METZ CONNECT cable de red M12 (4 polos) (H) a RJ-45 (M) 1,0 m 6,5 mm SF/FTP CAT 5e libre de halógenos, sin lengüeta de retención, hilo, cadena de arrastre, codificado D verde (142M1D15010)

The METZ CONNECT 142M1D15010 is a high-performance industrial Ethernet cable designed for reliable data transmission in demanding environments. This cable connects M12 (4-pin, D-coded, female) to RJ45 (male) connectors, featuring SF/FTP shielding for excellent electromagnetic interference protection. With a length of 1.0 meter and an outer diameter of 6.5 mm, it supports CAT 5e standards for data rates up to 1 Gbps. The halogen-free jacket and stranded conductor design ensure flexibility and safety, while the drag chain compatibility makes it ideal for moving applications. The RJ45 connector is without latch/hook for easy installation in tight spaces.

Advantages

Robust SF/FTP shielding minimizes signal interference, ensuring stable data transmission. Halogen-free materials enhance safety in case of fire. Stranded conductors provide flexibility for frequent bending. Drag chain compatible for use in automated machinery. D-coded M12 connector ensures correct orientation and secure connection.

Suitable for

• Industrial Ethernet networks
• Automation and control systems
• Machine building and robotics
• Data centers and server rooms
• Any application requiring reliable CAT 5e performance

Key specifications

• Product Type: Network Cable
• Cable Category: Cat 5e
• Shielding Type: SF/FTP (S-FTP)
• Connector 1: M12 (4-pin, D-coded, female)
• Connector 2: RJ45 (male, without latch)
• Cable Length: 1.0 m
• Outer Diameter: 6.5 mm
• Jacket Material: Halogen-free
• Conductor Type: Stranded
• Color: Green
• Special Features: Drag Chain Compatible
• Data Transfer Rate: Up to 1 Gbps
• Number of Conductors: 4

Recommendations

For optimal performance, pair this cable with compatible M12 and RJ45 devices. Ensure proper strain relief to maintain cable integrity in dynamic applications.
