SOLARIX Cable de Red Cat.6 U/UTP LSOH Dca 305m Gris

The SOLARIX SXKD-6-UTP-LSOH is a high-performance Cat.6 U/UTP twisted pair data cable designed for reliable Gigabit Ethernet (1000BASE-T) transmission. With a length of 305 meters, it is ideal for structured cabling in indoor environments. The cable features bare copper conductors (23 AWG), LSOH (Low Smoke Zero Halogen) jacket, and meets Euroclass Dca-s2,d2,a2 fire rating, ensuring safety and performance.

Advantages

This cable offers excellent signal integrity up to 250 MHz, supporting data rates up to 1 Gbps. The U/UTP shielding minimizes crosstalk and interference, while the LSOH jacket reduces toxic smoke in case of fire. The reel-in-box packaging ensures easy installation and storage.

Suitable for

• Structured cabling in offices, data centers, and commercial buildings
• Gigabit Ethernet networks (1000BASE-T)
• Indoor horizontal and backbone cabling
• Applications requiring low smoke and halogen-free materials

Key specifications

• Category: Cat6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor: Bare Copper, 23 AWG
• Number of Pairs: 4
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Euroclass Fire Rating: Dca-s2,d2,a2
• Length: 305 m
• Outer Diameter: 6.2 mm
• Max Frequency: 250 MHz
• Supported Data Rate: 1000BASE-T (Gigabit Ethernet)
• Application Environment: Indoor
• Colour: Grey
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

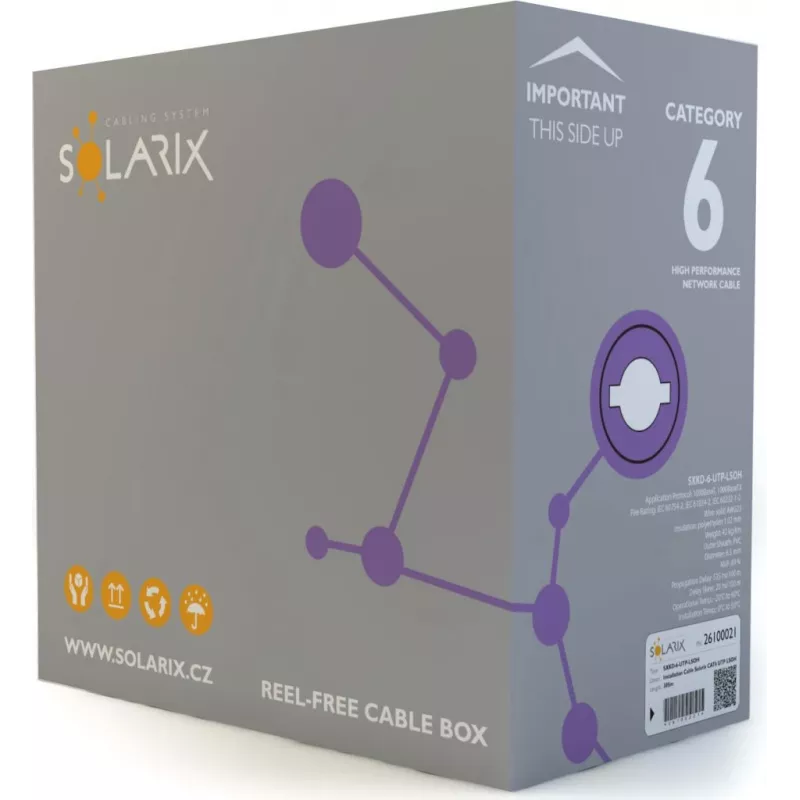

• Packaging: Reel-in-box
• Operating Temperature: -20°C to +60°C
• Nominal Impedance: 100 Ohm ± 15%

Recommendations

For optimal performance, use with Cat6 compatible connectors and patch panels. Ensure proper installation practices to maintain cable performance and compliance with standards.
