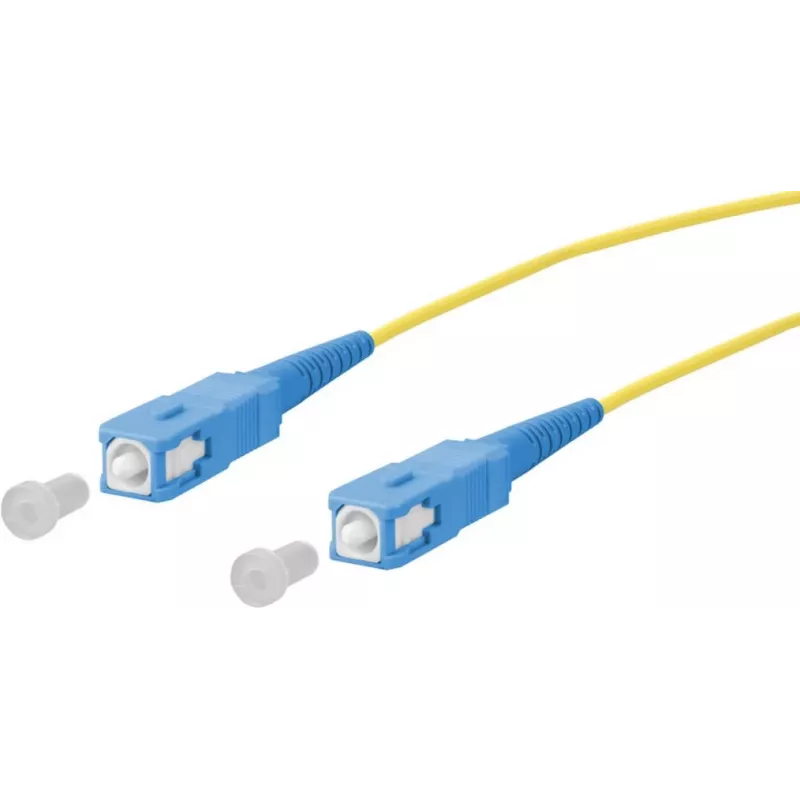

METZ CONNECT OpDAT cable de conexión SC-SC OS2 5,0 m amarillo 2,0 mm

The METZ CONNECT OpDAT Patch Cable SC-SC OS2 is a high-performance single-mode fiber optic patch cable designed for reliable data transmission in data centers, LAN, telecommunications, and FTTx networks. With a length of 5.0 meters and a compact 2.0 mm diameter, this simplex cable features SC connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity. The yellow LSZH jacket provides durability and safety, making it ideal for environments where fire safety is critical.

Advantages

This patch cable offers ultra-low loss OS2 performance, ensuring minimal signal attenuation over long distances. The zirconia ceramic ferrule connectors provide stable and repeatable connections, while the LSZH jacket reduces toxic fumes in case of fire. Its 2.0 mm diameter makes it flexible and easy to route in tight spaces.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Telecommunications infrastructure
• FTTx (Fiber to the x) deployments

Key specifications

• Fiber type: Single-mode OS2 (9/125 µm)
• Connectors: SC to SC
• Length: 5.0 m
• Cable diameter: 2.0 mm
• Jacket color: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: <0.3 dB per connector
• Return loss: >50 dB (UPC)
• Standards: IEC 60794-2, TIA/EIA-568.3-D, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC fiber optic ports and is suitable for both indoor and protected outdoor applications.
