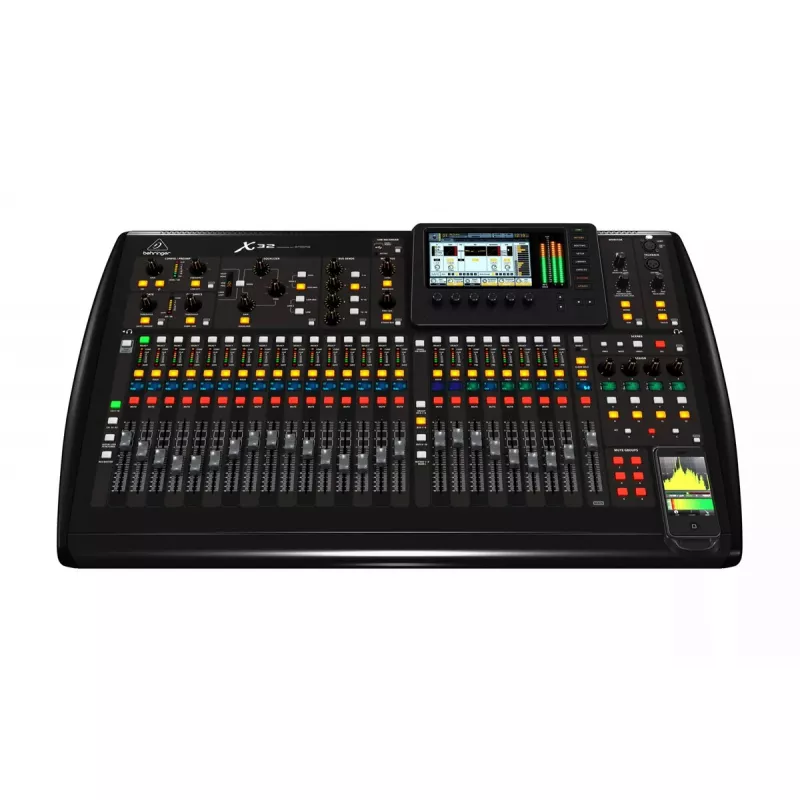

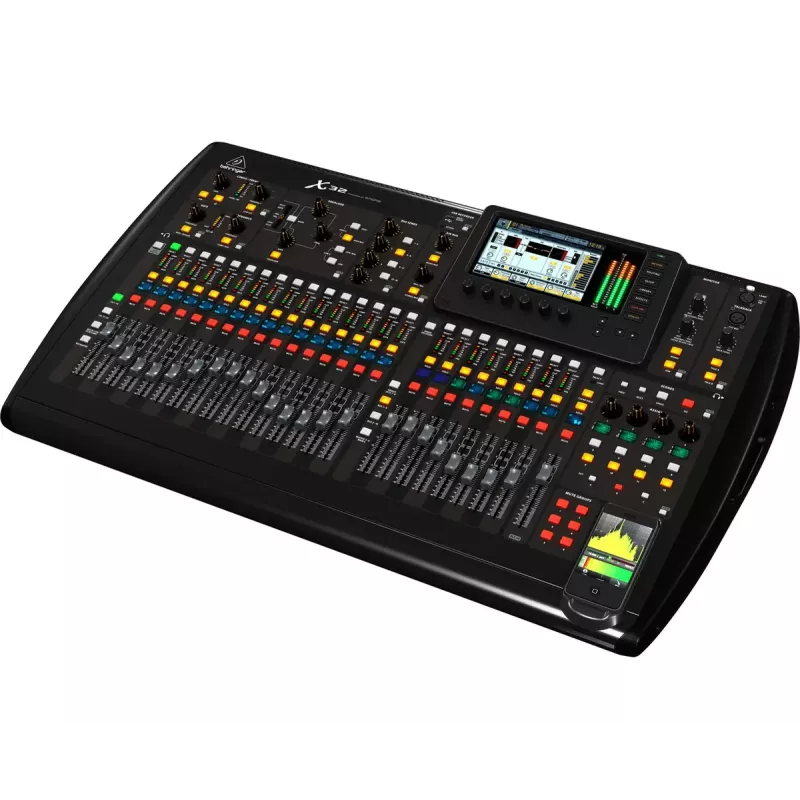

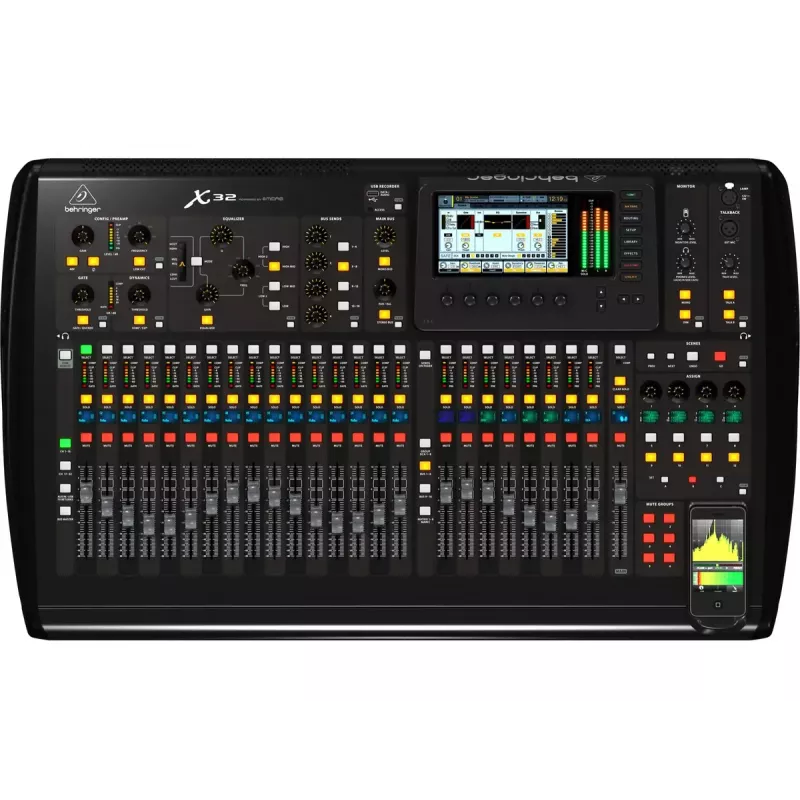

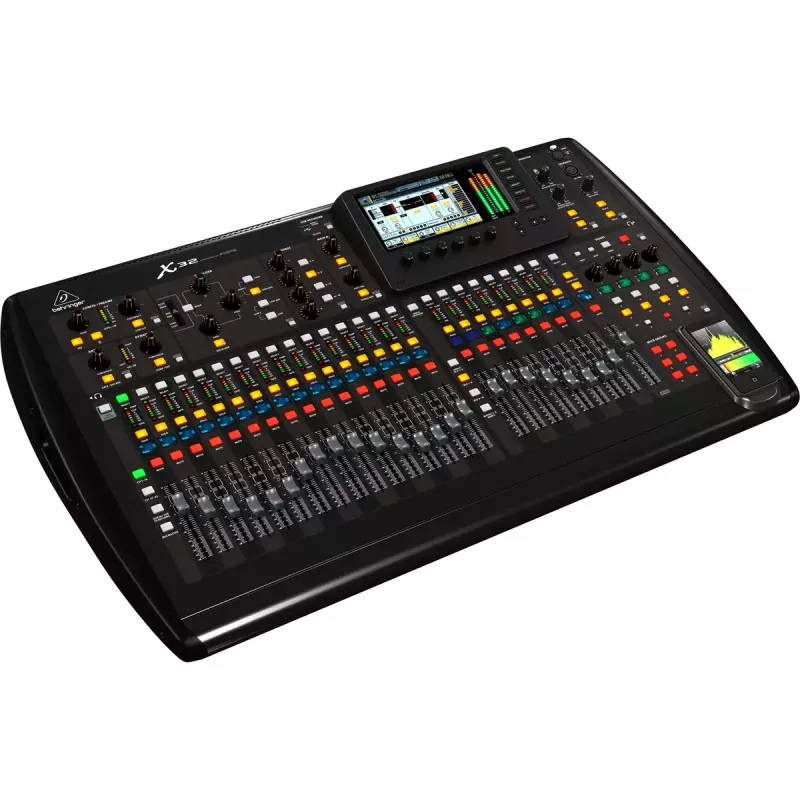

Mezclador de audio Behringer X32 40 canales 10 - 22000 Hz Negro

The Behringer X32 audio mixer 40 channels 10 - 22000 Hz in black is a professional 40-input, 25-bus digital mixing console designed for live sound, studio work and broadcast. It integrates 24-bit digital sound processing with a stated frequency response of 10–22,000 Hz and total harmonic distortion of 0.006% to deliver accurate audio reproduction. The console combines 32 high-quality mic preamps, a 32 x 32 USB 2.0 audio interface, motorized faders and a high-resolution color TFT display in a compact frame measuring 900 mm × 528 mm × 200 mm.

Advantages

The mixer offers extensive routing and processing capabilities including multiple mix buses, matrices and a rich virtual effects rack. Motorized 100 mm faders and individual LCD scribble strips simplify channel identification and scene recall. Low-latency 40-bit floating-point DSP maintains high dynamic range without internal overload, while integrated USB recording and networking options enable flexible capture and remote control. The unit's combination of live-oriented features and studio-compatible digital I/O makes it adaptable to varied professional audio workflows.

Suitable for

• Live sound reinforcement for bands, theatres and houses of worship
• Studio recording and multitrack capture with DAW integration
• Broadcast and streaming applications requiring reliable routing and processing
• FOH or monitor mixing with personal monitoring system integration

Key specifications

• Channels: 40-input channel console with 32 programmable mic preamps
• Buses: 25 buses, including main LCR, 6 matrix buses and 16 mix buses
• Preamp design: MIDAS-designed mic preamps for high-fidelity input gain
• Faders: 25 fully automated motorized 100 mm faders
• Dynamics and EQ: 6-band parametric EQ and full dynamics on buses and channels
• Effects: Virtual FX rack with 8 stereo FX slots and high-end emulation algorithms
• Processing: 40-bit floating-point DSP with near-zero internal latency (~0.8 ms)

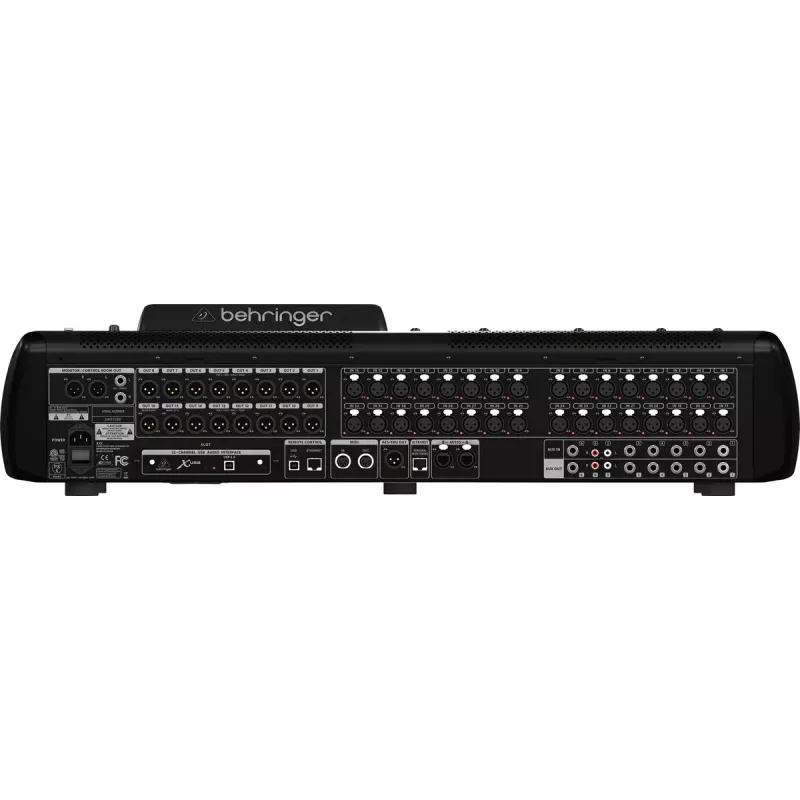

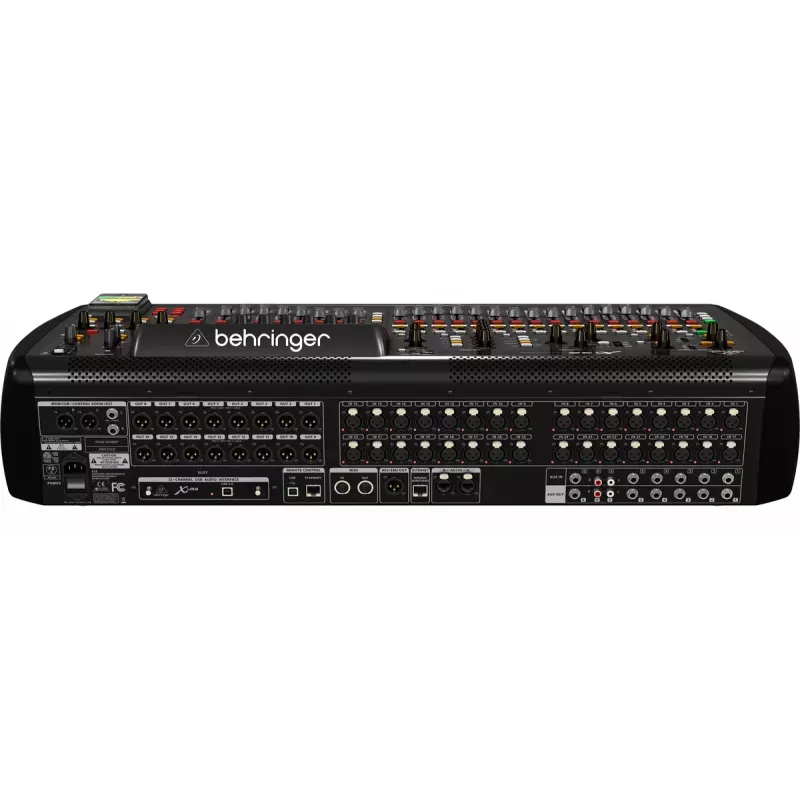

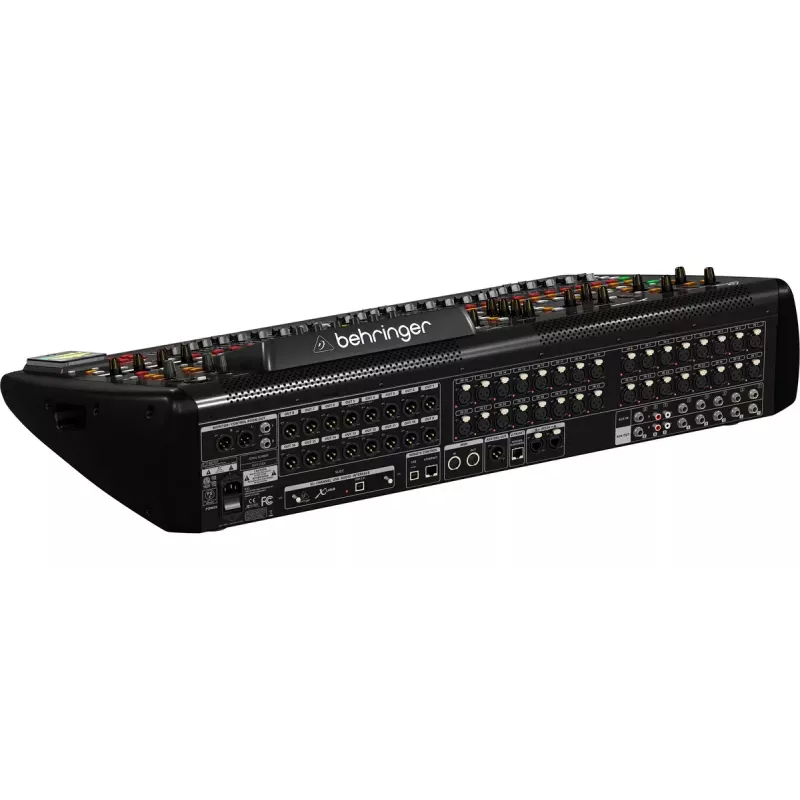

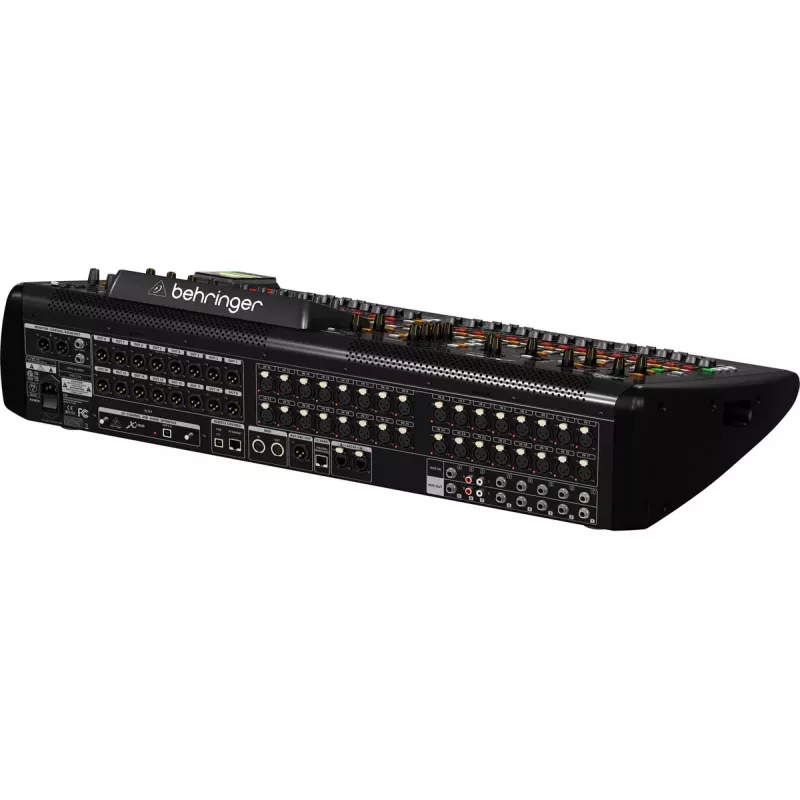

• Connectivity: 16 XLR outputs, multiple line I/O, 2 headphone outputs and talkback input
• Digital I/O: 32 x 32 USB 2.0 audio interface and AES/EBU stereo digital output
• Network: AES50 networking for digital snake connectivity and Ethernet remote control
• Display and control: 7" daylight-viewable color TFT and individual LCD scribble strips
• Storage and expansion: USB type-A for recording and show storage; built-in expansion port
• Dimensions: 900 mm (W) × 528 mm (D) × 200 mm (H)

How to use

Place the mixer on a stable surface or rack it according to available space and connect inputs and outputs using the appropriate XLR and line connectors. Power up the unit, set input gains using the MIDAS-designed preamps and use the motorized faders and channel strip controls for level and basic processing. Route signals to buses or matrices as needed, apply EQ and dynamics on each channel or bus, and select effects from the virtual FX rack. Use the 32 x 32 USB audio interface to connect to a DAW for multitrack recording or playback, and configure remote control via Ethernet or compatible iOS apps if required.

Recommendations

For consistent sound quality, set input gain so that channel meters peak below clipping while preserving headroom; use the on-board dynamics and 6-band parametric EQ to control problem frequencies and tame peaks. Save scenes frequently when working on complex productions and use the motorized faders for quick scene recall. When using digital snakes or networked stages, verify AES50 link status and sample rate compatibility before a performance. Keep firmware updated to access improvements and new FX options.
