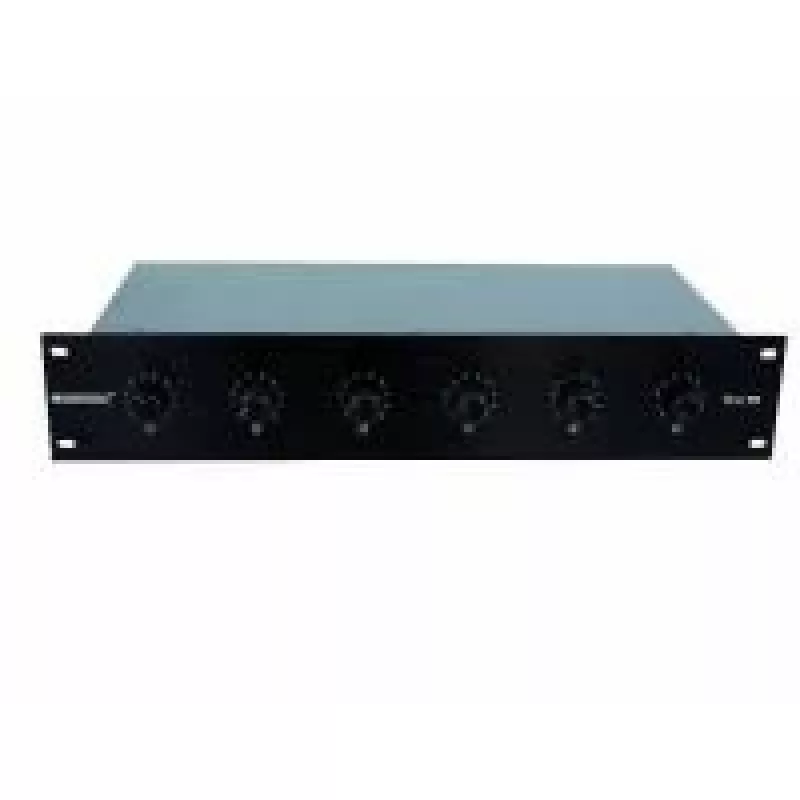

Mezclador de zonas de audio Omnitronic ELA 6S-Zonen LS-Regler 30W — Regulador de altavoces de 6 zonas, 30 W de salida

The Omnitronic ELA 6S-Zonen LS-Regler 30W is a six-zone loudspeaker controller intended for paging and background music systems in commercial and public environments. It offers independent level control for six separate zones and a combined output capacity of 30 watts. The compact design supports integration with existing PA and ELA infrastructures and allows centralized management of zone volumes from a single unit.

Advantages

The controller provides precise, independent volume adjustment for six zones, enabling tailored sound levels in different areas. Its 30 W total output is suitable for low- to medium-power distributed speaker systems. The device is designed for simple integration with standard paging systems and background-music sources and supports centralized control to reduce the need for multiple amplifiers. Physical knobs or controls on the unit make on-site adjustments straightforward and immediate.

Suitable for

Key specifications

How to use

Connect the unit to the audio source (paging microphone or background-music player) and to the distributed speaker lines for each zone. Set the input level from the source to match the controller’s input sensitivity, then adjust each zone’s level control to achieve the desired volume in that area. Ensure the combined speaker load and cable runs remain within the recommended impedance and power handling limits of the connected loudspeakers. For paging use, verify microphone priority and routing if connected via a central PA system.

Recommendations

Place the controller in an accessible central location for convenient manual adjustments. Use short, well-shielded audio cables for input and speaker connections to reduce interference. Calibrate zone levels during typical occupancy to set appropriate background-music and paging volumes, and check speaker impedance to prevent overloading. For larger or higher-power installations, consider supplementary amplification or higher-power controllers.
