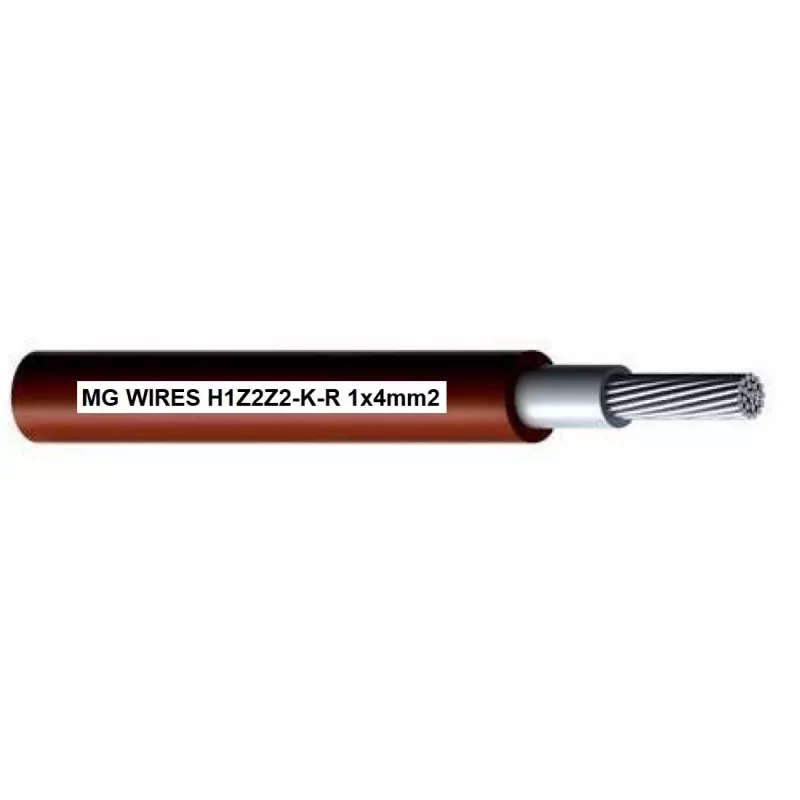

MG H1Z2Z2-K-R-4MM2/50M cable fotovoltaico 4mm² rojo 50m

The MG H1Z2Z2-K-R-4MM2/50M is a high-quality photovoltaic (PV) cable designed for reliable and efficient energy transmission in solar power systems. Manufactured to EN 50618 standard, this single-core cable features a 4 mm² cross-section and is rated for 0.6/1 kV AC and up to 1.8 kV DC. The red XLPO sheath provides excellent UV, ozone, and weather resistance, ensuring long-lasting performance in outdoor environments.

Advantages

This PV cable offers exceptional durability and safety. It is halogen-free, flame retardant, and emits low smoke, making it ideal for installations where fire safety is critical. The tinned copper conductor ensures high conductivity and corrosion resistance, while the cross-linked polyolefin insulation and sheath withstand extreme temperatures from -40°C to +90°C, with short-circuit capability up to +250°C for 5 seconds. With an expected service life of 25 years, this cable delivers long-term reliability.

Suitable for

• Interconnection of solar panels in photovoltaic systems
• Outdoor and indoor wiring of PV arrays
• Connecting inverters, combiner boxes, and other PV components
• Use in renewable energy installations requiring high UV and ozone resistance

Key specifications

• Cable Type: Photovoltaic (PV) Cable
• Standard: EN 50618 (H1Z2Z2-K)
• Conductor: Tinned Copper, Single Core
• Cross-Section: 4 mm²
• Rated Voltage: 0.6/1 kV AC, 1.8 kV DC
• Insulation/Sheath: Cross-linked Polyolefin (XLPO)
• Colour: Red
• Package Length: 50 m
• Operating Temperature: -40°C to +90°C
• Short Circuit Temperature: +250°C (5s)
• Flame Retardant: IEC 60332-1-2
• Halogen-Free: IEC 60754-1/2
• Low Smoke: IEC 61034-2
• UV & Ozone Resistant: Excellent
• Service Life: 25 years

Recommendations

For optimal performance, ensure proper cable sizing and installation according to local electrical codes. Use appropriate connectors and avoid sharp bends to maintain cable integrity. This cable is suitable for both fixed and mobile PV applications.
