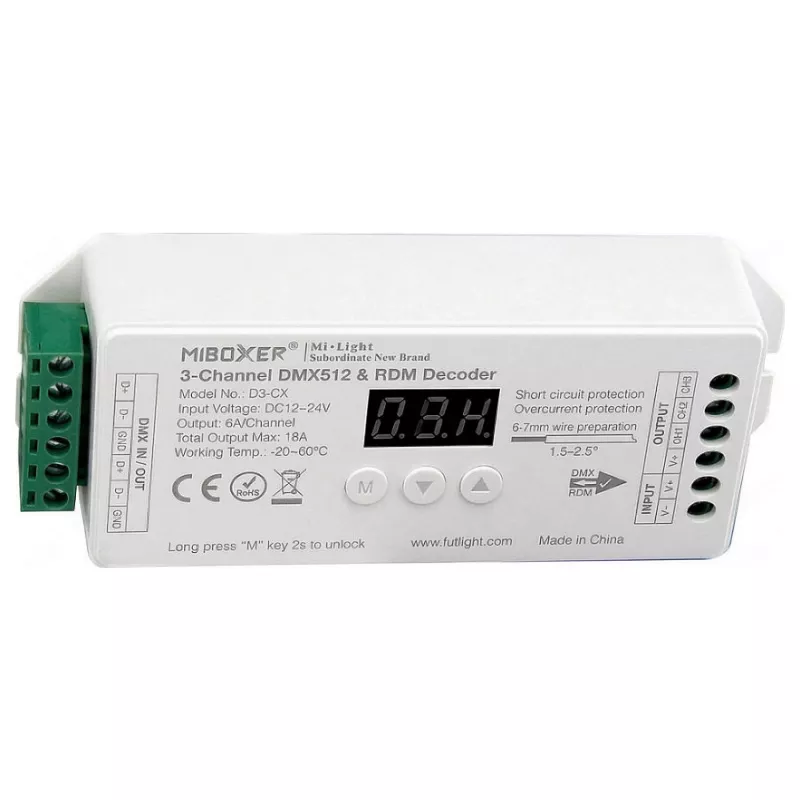

MIBOXER D3-CX Controlador LED DMX 3 canales RGB DMX512

The MIBOXER D3-CX is a professional DMX512 3-channel RGB LED controller designed for constant voltage LED strips and fixtures. It provides precise control over RGB lighting with a dimming range of 0-100%, making it ideal for stage, architectural, and decorative lighting applications.

Advantages

This controller offers reliable DMX512 control with easy address setting via DIP switches. It supports both 12V and 24V DC input, delivering up to 18A total output current (6A per channel). The robust ABS housing and screw terminal connections ensure secure and durable installation.

Suitable for

• RGB constant voltage LED strips and fixtures
• Stage and theater lighting
• Architectural accent lighting
• Entertainment venues and events

Key specifications

• Control Protocol: DMX512
• Number of Output Channels: 3 (RGB)
• Input Voltage: DC 12V-24V
• Max Output Current per Channel: 6A
• Max Total Output Current: 18A
• Max Output Power (12V): 216W
• Max Output Power (24V): 432W
• Output Type: Constant Voltage
• DMX Address Setting: DIP Switches
• DMX Interface: RJ45 (Input & Output)
• LED Output Connection: Screw Terminals
• Power Input Connection: Screw Terminals
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Housing Material: ABS
• Protection Rating: IP20

Recommendations

For optimal performance, use with constant voltage RGB LED strips rated for 12V or 24V DC. Ensure proper DMX addressing and termination for reliable communication. This controller is not suitable for constant current LEDs or non-RGB applications.
