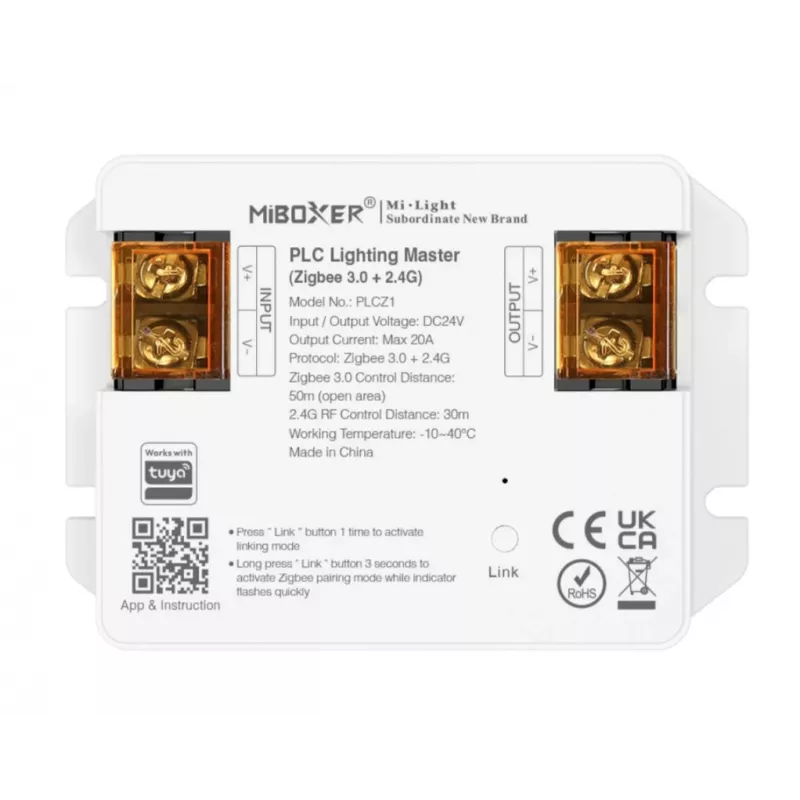

Miboxer PLCZ1 controlador maestro de luz Zigbee 3.0 + 2.4G MiLight/Miboxer

For smart home integrators and lighting enthusiasts, the Miboxer PLCZ1 acts as a central bridge between Zigbee 3.0 and MiBoxer/MiLight 2.4GHz RF devices. It enables unified control of up to 128 Zigbee and 128 RF devices from a single point, making it suitable for residential and commercial lighting automation projects.

Key specifications

• Dual protocol support: Zigbee 3.0 and MiBoxer/MiLight 2.4GHz RF
• Wi-Fi connectivity: IEEE 802.11b/g/n 2.4GHz
• Input power: DC 5V / 500mA via Micro USB
• Control range: up to 100m open area for Zigbee and RF, up to 30m for Wi-Fi
• App support: MiBoxer APP and MiLight APP
• Voice assistant compatibility: Amazon Alexa and Google Assistant
• Operating temperature: -10°C to 40°C
• Material: ABS

Why choose it

It consolidates two popular lighting protocols into one controller, reducing the need for multiple hubs. Remote control, scene management, group control, and timing functions are accessible through the apps, providing flexible automation options.

Ideal use cases

• Smart home lighting systems with mixed Zigbee and MiLight devices
• Commercial spaces requiring centralized lighting control
• Retrofit projects where existing MiLight fixtures need Zigbee integration

Good to know

The PLCZ1 is powered by a standard 5V Micro USB supply and is intended for indoor use. Its compact ABS housing allows placement near the controlled devices for optimal signal coverage.
