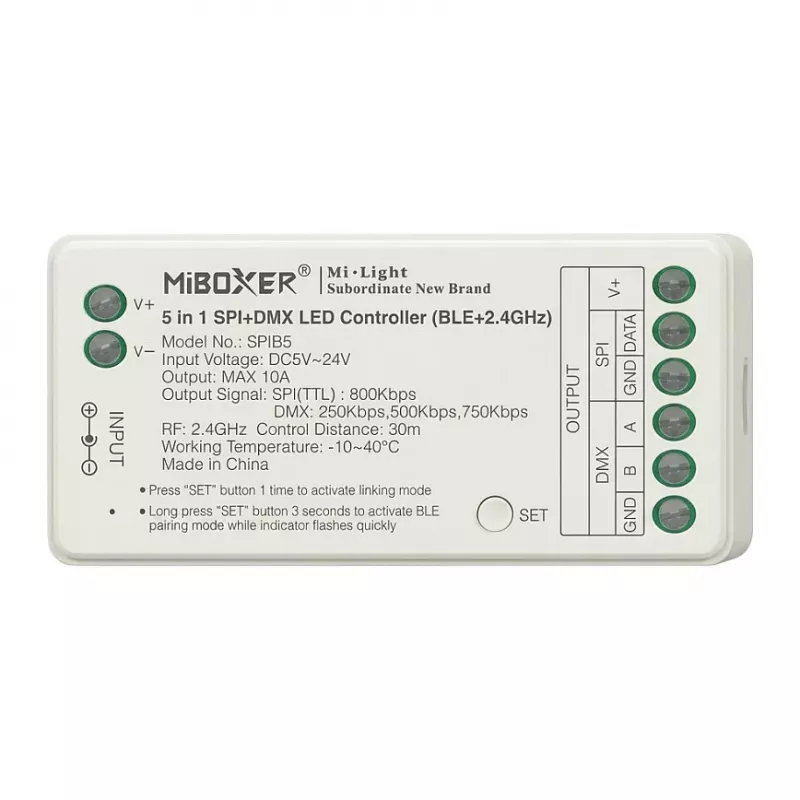

Miboxer SPIB5 Controlador LED Pixel 5 en 1 SPI+DMX 2,4GHz+BLE

The Miboxer SPIB5 is a versatile 5-in-1 Pixel LED Controller that combines SPI, DMX512, 2.4GHz RF, Bluetooth Low Energy (BLE), and App control in one compact unit. Designed for professional and hobbyist lighting projects, it supports a wide range of LED ICs and can control up to 2048 pixels. With both wireless and wired control options, it offers flexibility for dynamic lighting installations.

Advantages

This controller integrates multiple control protocols, eliminating the need for separate devices. The BLE 5.0 connectivity enables seamless control via the MiBoxer App, while the 2.4GHz RF allows for remote control up to 30 meters. The DMX512 input makes it compatible with professional lighting consoles, and the SPI output ensures compatibility with popular LED strips. The unit features reverse polarity and short circuit protection for reliable operation.

Suitable for

• Architectural lighting
• Stage and event lighting
• DIY LED projects
• Smart home lighting systems
• Commercial signage

Key specifications

• Input Voltage: DC 12-24V
• Output Signal: SPI (TTL), DMX512
• Wireless: 2.4GHz RF + BLE 5.0
• Max Pixels: 2048
• Compatible ICs: WS2811, WS2812, SK6812, APA102, and more
• Control Distance: Up to 30m (unobstructed)
• Operating Temperature: -20°C to 60°C
• Housing: ABS Plastic, IP20
• DMX Channels: Up to 512
• Firmware: OTA update via App

Recommendations

For optimal performance, use a stable DC power supply within the specified voltage range. Ensure proper wiring for SPI data and clock lines. The controller is intended for indoor use only.
