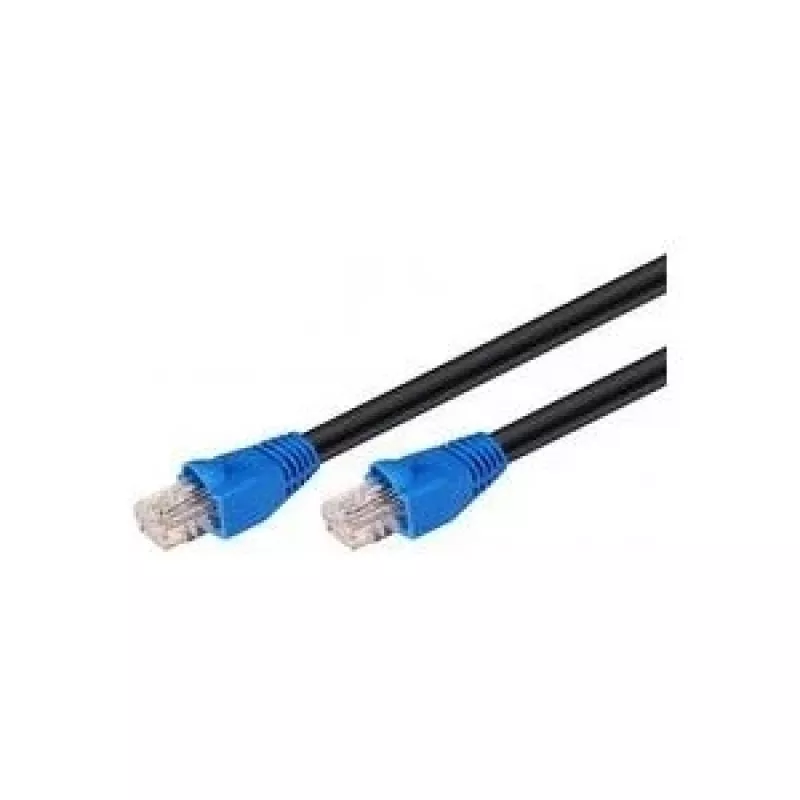

Microconnect B-UTP620SOUT Cable de red negro 20 m Cat6 U/UTP (UTP)

The MicroConnect B-UTP620SOUT RJ-45 Cat6 20 m Black is an outdoor-rated Cat6 patch cable designed for reliable data transmission up to 250 MHz and speeds up to 10000 Mbit/s. With RJ-45 connectors on both ends and a double outer PE jacket, this U/UTP cable is weather-resistant and suitable for installations exposed to sunlight and moisture. It is backward compatible with Cat5e and Cat5 standards and includes a reinforced snagless design to protect connectors during tight installations.

Advantages

This black Cat6 outdoor networking cable provides tested performance to the Cat6 standard (up to 250 MHz) and supports high data rates. The double PE outer jacket improves resistance to water and UV radiation for outdoor use. The U/UTP construction reduces interference while maintaining compatibility with Cat5e and Cat5 systems. A snagless connector design helps prevent connector damage when routing cable through confined spaces.

Suitable for

• Connecting surveillance cameras (outdoor CCTV)
• Wiring on building facades and external walls
• Garden, campsite, and other outdoor networking runs
• Temporary outdoor events and installations

Key specifications

• Cable type: U/UTP, Cat6
• Test frequency: up to 250 MHz (Cat6 standard)
• Maximum data rate: up to 10000 Mbit/s
• Length: 20 m
• Connectors: RJ-45 — both ends
• Outer jacket: double PE (water- and UV-resistant)
• Colour: Black
• Weight: 0.566 kg
• Compatibility: backward compatible with Cat5e and Cat5

How to use

Route the MicroConnect Cat6 outdoor cable between network devices or from a network switch to an outdoor device such as an IP camera. Ensure connectors are fully inserted into RJ-45 ports until they click. When running the cable outdoors, secure it along facades or poles with appropriate clips or ties, avoiding tight bends and sharp edges. Maintain proper grounding and follow local installation codes for exterior network cabling.

Recommendations

For best longevity, avoid prolonged submersion in standing water and use UV-rated mounting accessories where possible. When installing through narrow conduits, guide the cable gently to prevent strain on the RJ-45 connectors despite the snagless design.
